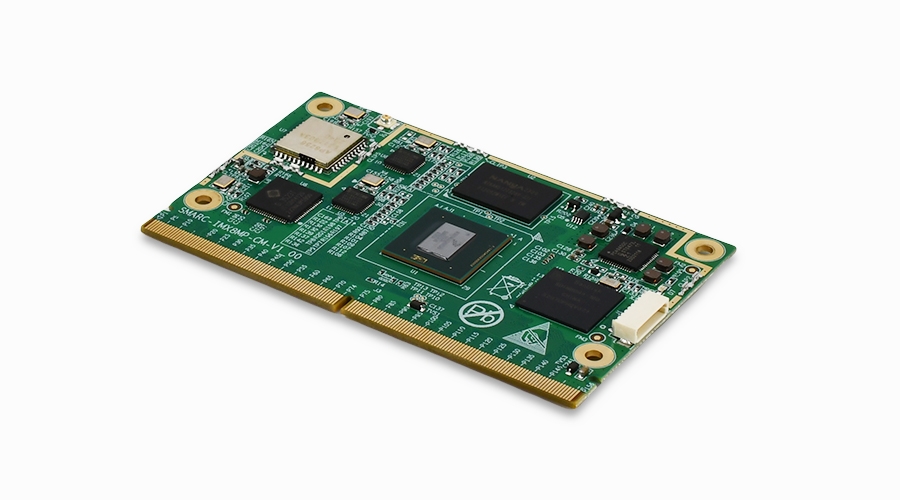

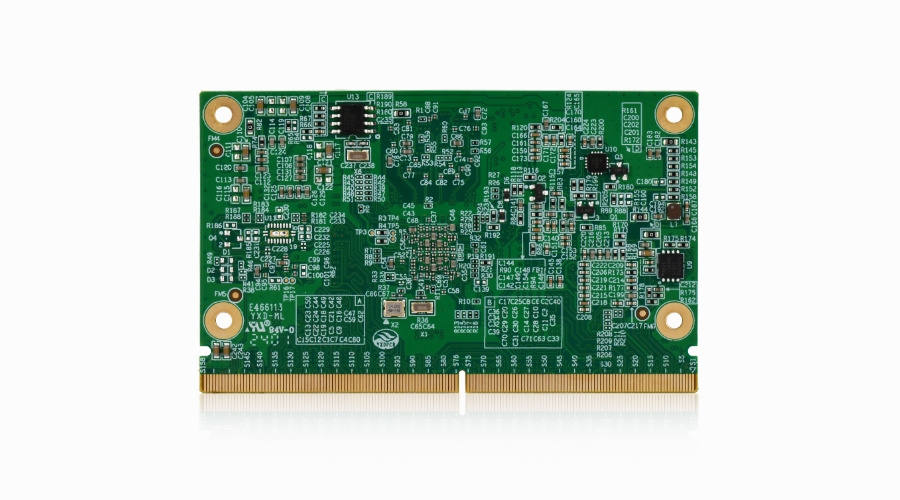

SMA-IMX8MP
- i.MX 8M Plus Q/QL/D SoC with 64-bit ARMv8-A Architecture
- NPU with up to 2.3 TOP/s Neural Network performance
- Dual or Quad-core ARM Cortex-A53 up to 1.8GHz & M7 at 800MHz
- IEEE 802.11a/b/g/n/ac Wi-Fi 5 & Bluetooth 5.0
- Dual 1000/100/10 Mbps Ethernet (TSN support on one Port)
- Excels in ML vision, edge intelligence & advanced multimedia applications. SMARC v2.1.1 Compatible SOM
ProductSpecification
System Information
-
Processor
Quad ARM® Cortex™-A53 core+ Cortex-M7 core, i.MX8M Plus processor’s frequency @ 1.6GHz, Cortex®-M7 processor’s frequency @800 MHz
-
GPU
GC7000UL with OpenCL and Vulkan support
Support 16 GFLOPS(high precision) OpenGL ES 3.0/3.1, Vulkan, Open CL 1.2FP,
OpenVG1.1 -
VPU
Support 1080p60, h.265/4, VP8, VP9 video decoding
Support 1080p60, h.265/4 video encoding -
System Memory
2GB LPDDR4 expandable up to 4GB
Storage
-
Storage
16GB eMMC Flash expandable up to 32GB
Display
-
Digital Display Interface
HDMI 2.0 x 1
LVDS x 1
MIPI DSI (4 lanes) x 1
Other : MIPI CSI (4 lanes) x 2
Software Support
-
OS
Yocto 4.0
I/O
-
USB
USB3.0 x 2
-
I2C Bus
x 6
-
PCIe
PCIe 3.0 x 1
-
GPIO
x 5
-
DIO
SDIO x 1
-
I2S
6 ch SAI
-
SPI
x 3
-
UART
x 4
-
CAN
x 2
Mechanical & Environmental
-
Operating Temp.
-40℃~ +85℃
-
Storage Temp.
0℃~ +70℃
-
Operating Humidity
5% to 95%, non-condensing
-
Dimension (L x W)
SOM Size：50mm*82mm
