How to flash Yocto 2.5 to SMA-X8I

Document NO.

2023102705
Category

Software Installation
Update Date

2023-10-27

Export PDF

Model Name

EEV-EX14 EEV-EX15 EEV-EX16-A1 EEV-Q702 EQM-APL EQM-BYT EQM-BYT2 ESM-APLC ESM-APLM ESM-BYT ESM-BYT2 ESM-CFH ESM-EHLC ESM-KBLU ESM-SKLA ESM-SKLH ESM-TGH REV-Q703 REV-SA01 REV-SA02 REV-SA03 SMA-IMX6 E1 SMA-X8I EEV-EX16-B1 ESM-RPL ESM-RPLC EQM-EHL EEV-EX26 ESM-EHLC-B1 OSM-3568 OSM-IMX8MM ESM-ASLC SMA-3568 Q7-iMX6Q,D,S ESM-ARL ESM-TWLC EEV-HC10 ESM-HRPL SMA-3588 OSM-IMX93 SMA-IMX8MP

Purpose

Flash Yocto 2.5 image to SMA-X8I.

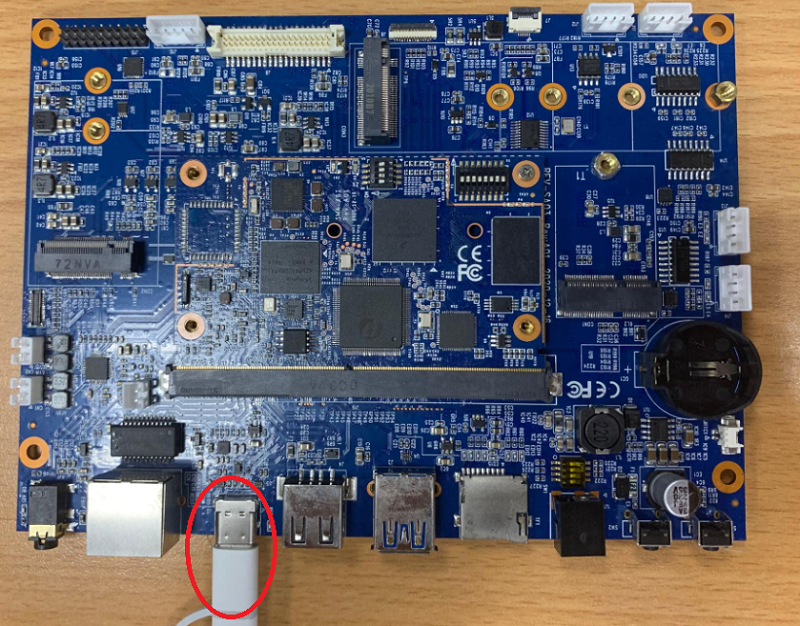

1. Connect your SMA-X8I with REV-SA03 to computer via type C USB cable.

2. Download Yocto 2.5 image.

Please connect Avalue FAE to get download link.

3. Set the jumper to OTG mode.

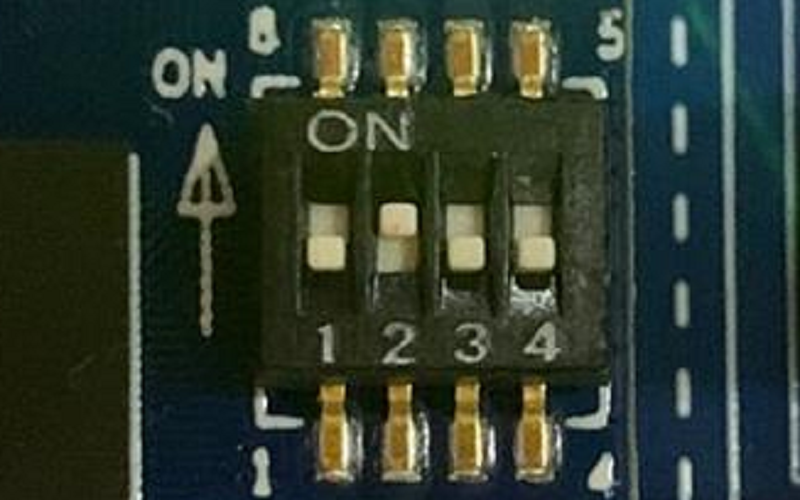

S1: Set to 10101010

S2: Set to 0100

4. Connect 12V power supplier to power on the device.

Execute “flash.bat” start to flash image.

5. In case that the following situation happens, it needs to install the drvier to SMA-I8X in Windows 7.

(skip step 5 if this pronlem does not occur in your device)

 Download this package.(https://github.com/NXPmicro/mfgtools/wiki/images/winusb.zip)
 Unzip the directory downloaded.
 Run “install.bat” as Administrator.

6. After flash image finish, disable power supplier.

7. Set the jumper to boot mode.

S1:01101010

S2:0100

8. Power on and start to boot to Yocto 2.5.
