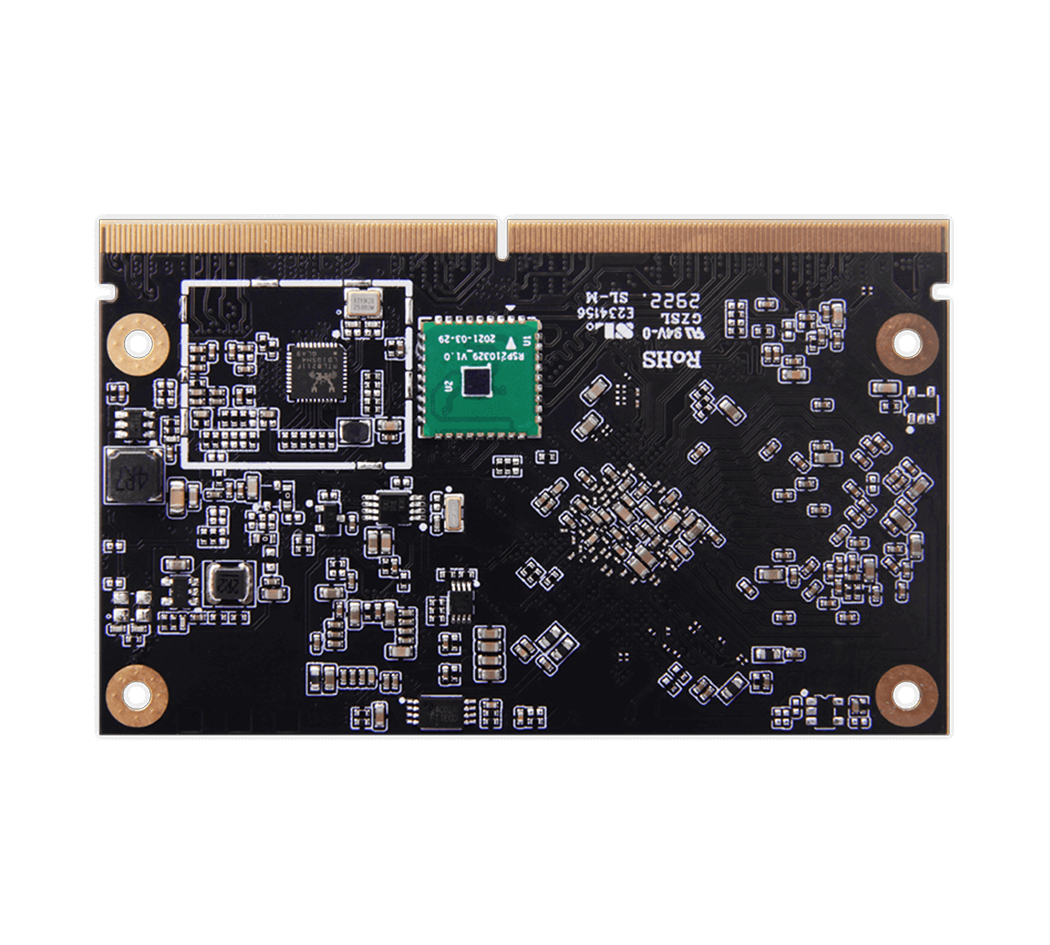

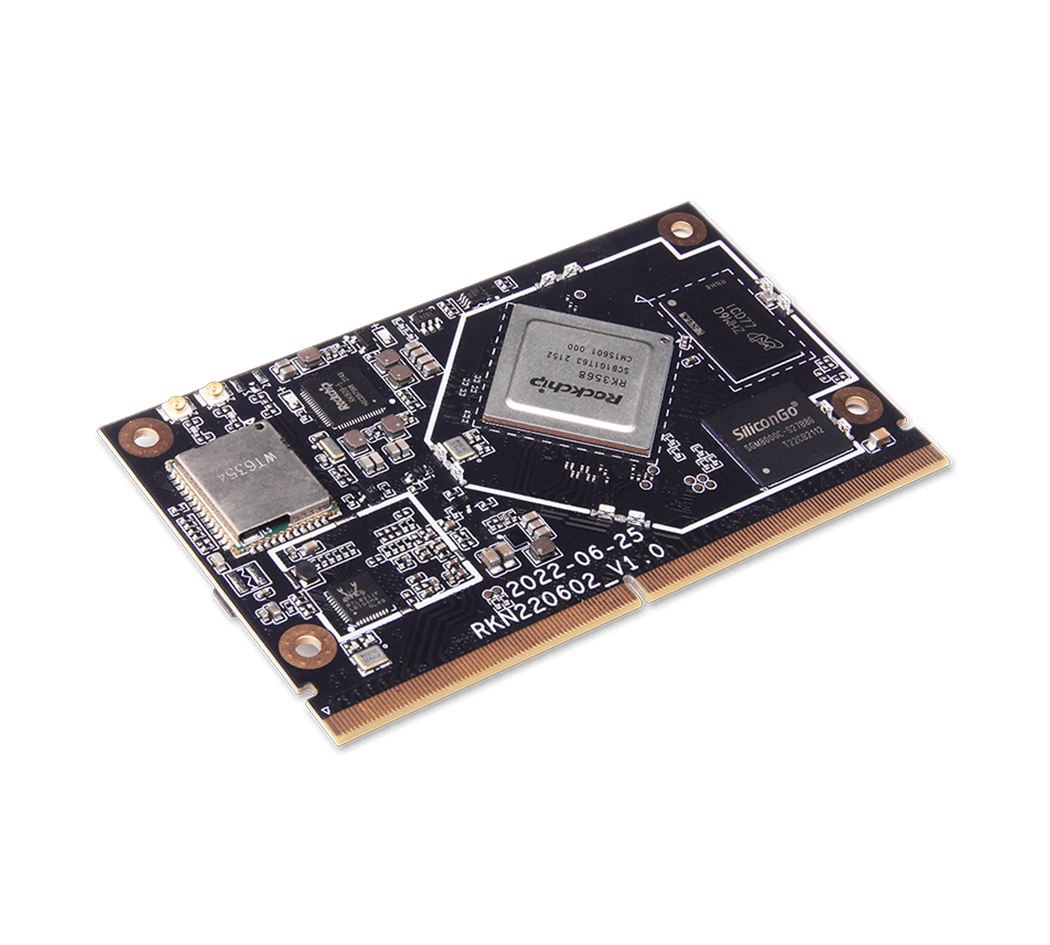

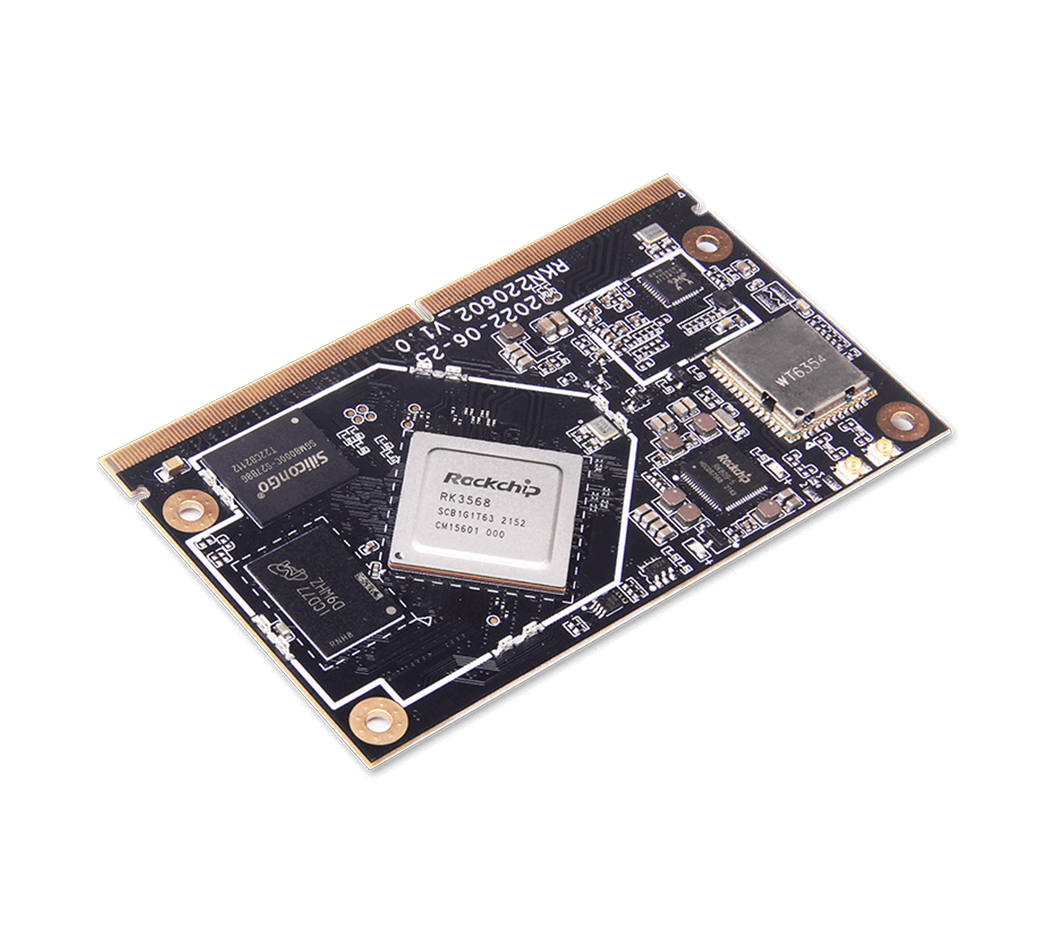

SMA-3568
- Adapted with SMARC V2.1 standard
- Supports HDMI®, LVDS, MIPI CSI /MIPI DSI interface
- Supports dual Gigabit Ethernet
- Supports 1 lane PCIe 2.1 and 2 lanes PCIe 3.0 interface
- Supports 2 x USB 3.0 and 2 x USB 2.0
- Supports 4-bits SDIO 3.0 interface
- Supports UART/SPI/I2C/GPIO/CAN interface
- Supports Wi-Fi/BT function
ProductSpecification
System Information
-
Processor
Rockchip RK3568J Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz.
-
NPU
1Tops@INT8, integrated high-performance AI accelerator RKNN NPU
Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet -
GPU
ARM G52 2EE
Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Embedded high-performance 2D acceleration hardware -
VPU
Supports 4K 60fps H.265/H.264/VP9 video decoding
Supports 1080P 60fps H.265/H.264 video encoding
Supports 8M ISP, supports HDR -
System Memory
2GB / 4GB / 8GB LPDDR4
Storage
-
Storage
32GB / 64GB / 128GB eMMC
I/O
-
External I/O Connector
Ethernet: *2（Giga ethernet）
PCIe 2.1 *1(1 lane)
PCIe 3.0 *1(2 lanes)
USB2.0 *2
USB3.0 HOST *1
USB3.0 OTG *1
MIPI CSI *1(4 lanes)
MIPI DSI *1(DSI0 &DSI1)
HDMI®*1(HDMI®2.0)
LVDS *1(multiplex with DSI1 )
Wi-Fi *1
GPIO *14（or more）
SDIO *1
UART *6
SPI *2
I2C *4
CAN *1
I2S *1
Mechanical & Environmental
-
Operating Temp.
-20C ~85
-
Power Requirement
POWER: 5V/2A
-
Dimension (L x W)
82*50 mm
