Processor

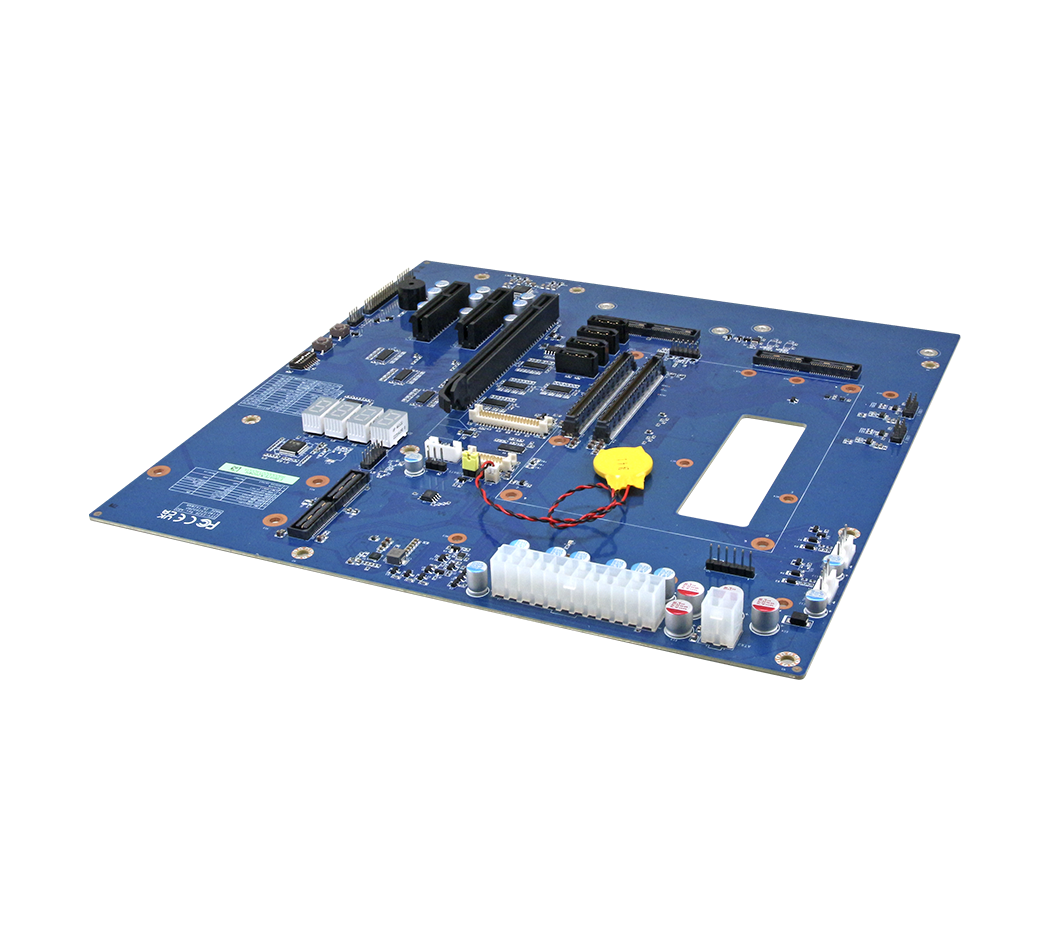

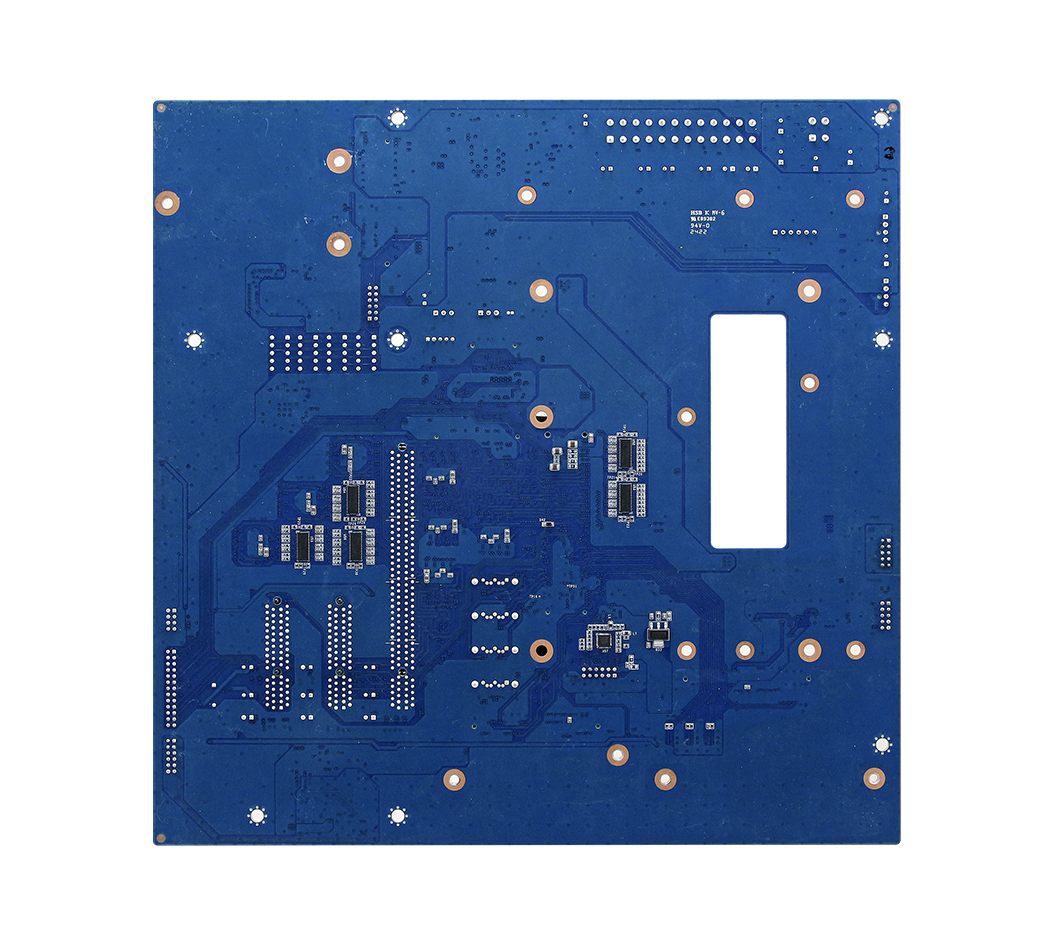

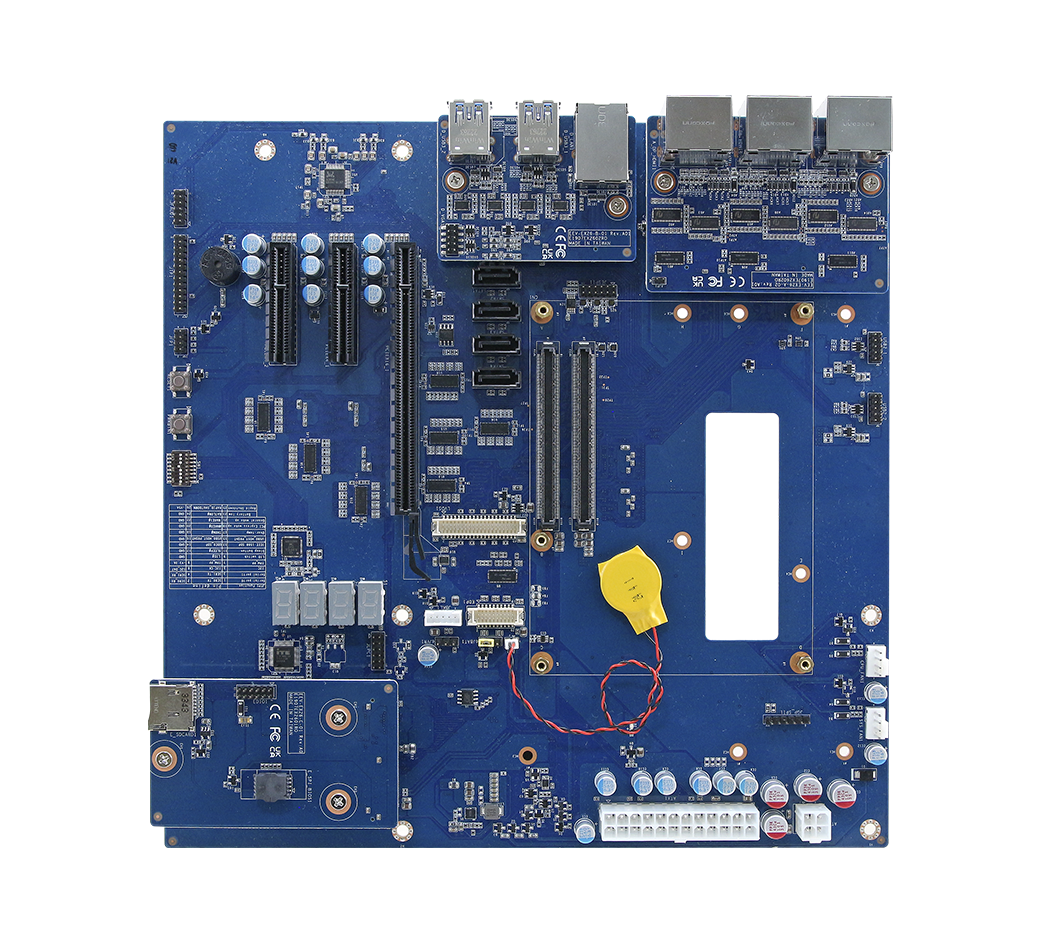

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.1

Expansion

1 x PCIe x16 (Gen4)
2 x PCIe x4 (Gen4)

Spec. & Resolution

1 x DP
1 x HDMI
1 x IET connector to 2 x USB Type C module board at IO
1 x VGA

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS
1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x 2.5 Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.2 Gen2 x1
1 x USB 2.0

GPIO

1 x 16-bit GPIO

MIO

1 x LPC
1 x SPI
1 x SD socket
1 x IET connector for LPC

Operating Temp.

-40 ~ 85°C (-40~ 185°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX26-A1R
Type 6 Micro ATX Ev. Board for COM Express Rev.3.0 A1
