Processor

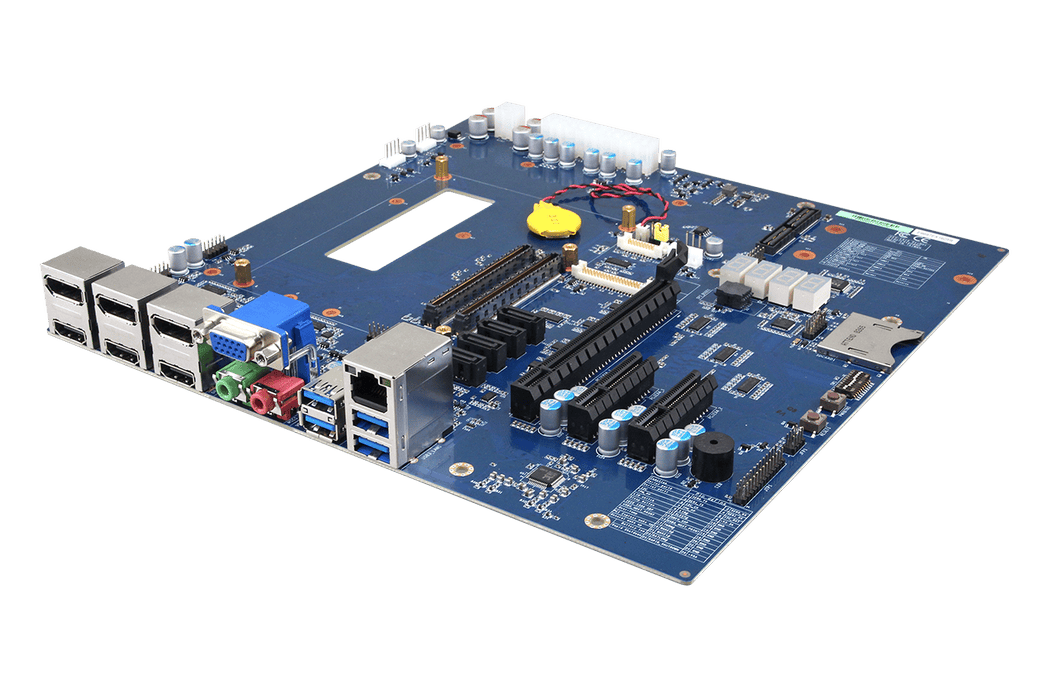

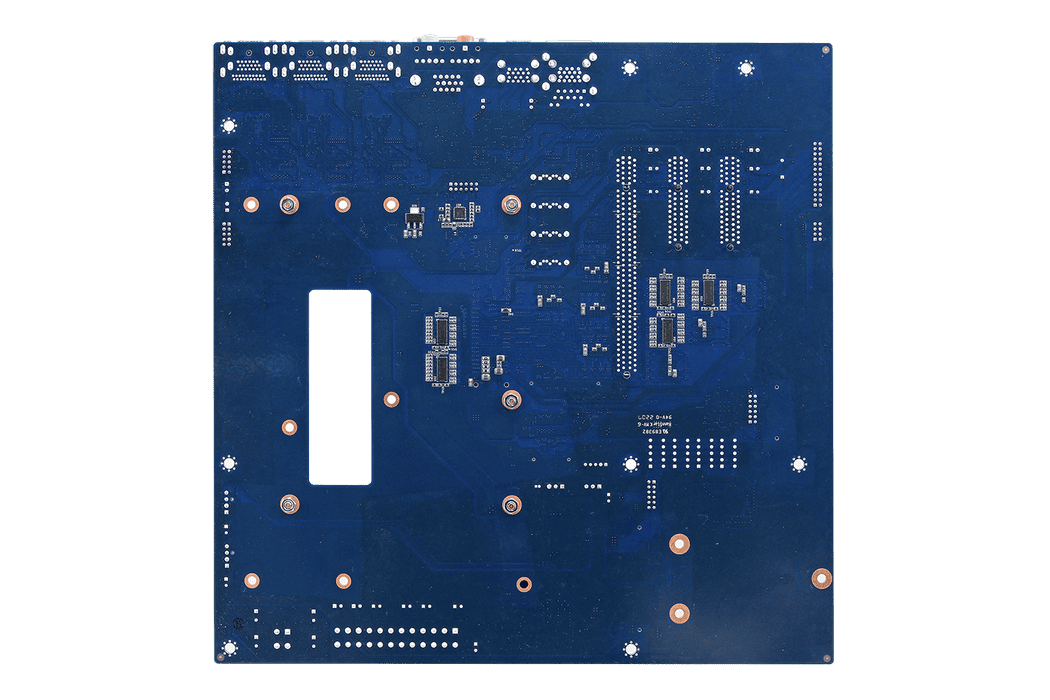

Micro ATX Carrier Board Supports COM Express Type 6 PICMG®COM Express® Revision 3.0

Expansion

1 x PCIe x16
2 x PCIe x4

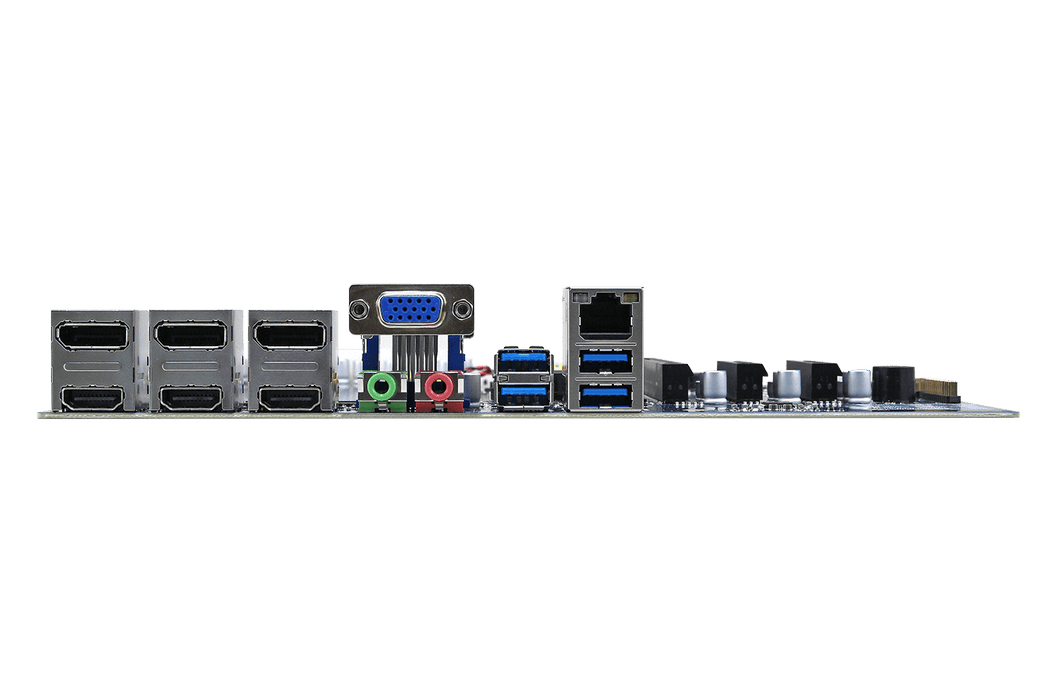

Spec. & Resolution

3 x DP
3 x HDMI
1 x VGA

Multiple Display

Depends on the COMe module

LVDS

1 x LVDS
1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out. Mic-in

Ethernet Interface

1 x 2.5 Gigabit Ethernet Connector

OS

According to COMe Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB 3.2 Gen2
4 x USB 2.0

GPIO

1 x 8-bit GPIO

SATA

4 x SATA III

MIO

1 x SD Card
1 x Multi-function Pin header

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.91lbs (0.412kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

EEV-EX16-B1R
Type 6 Micro ATX Eval. Board W PCIe Gen4 Redriver for ESM-EHLC/ESM-TGH and later Models B1
