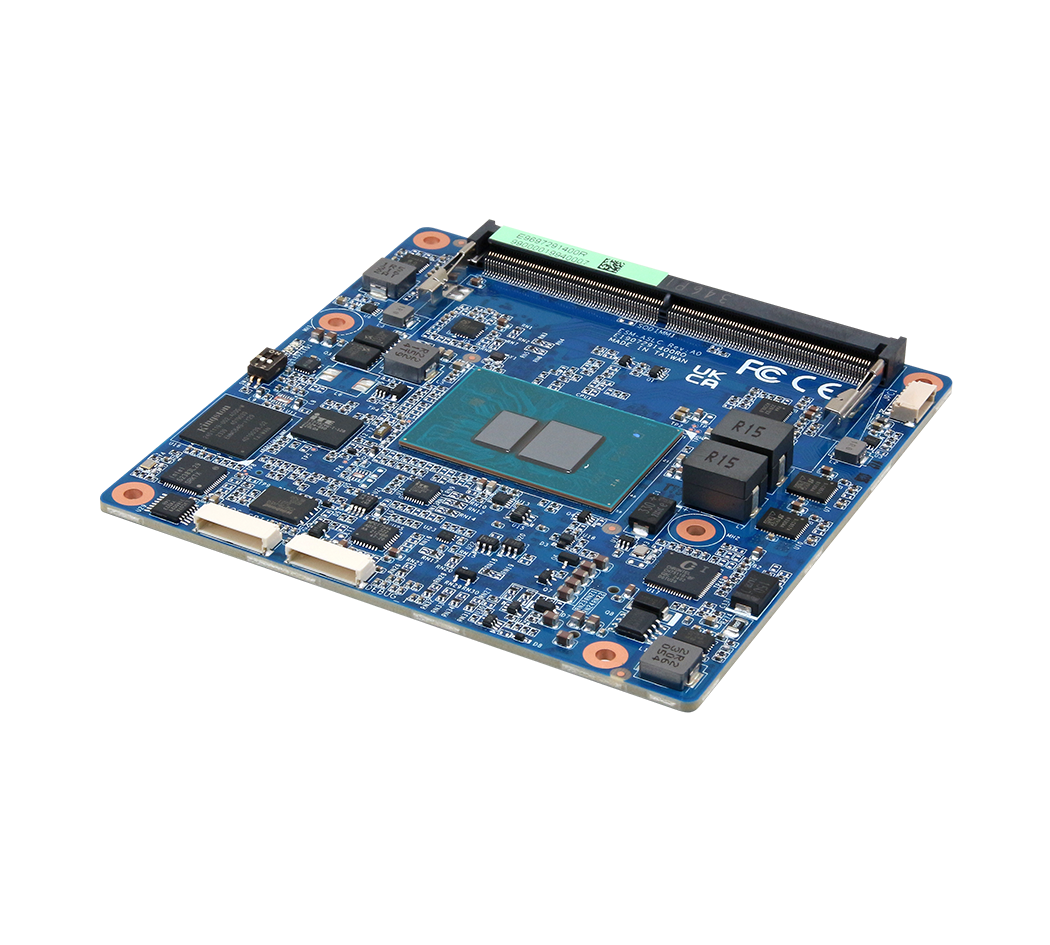

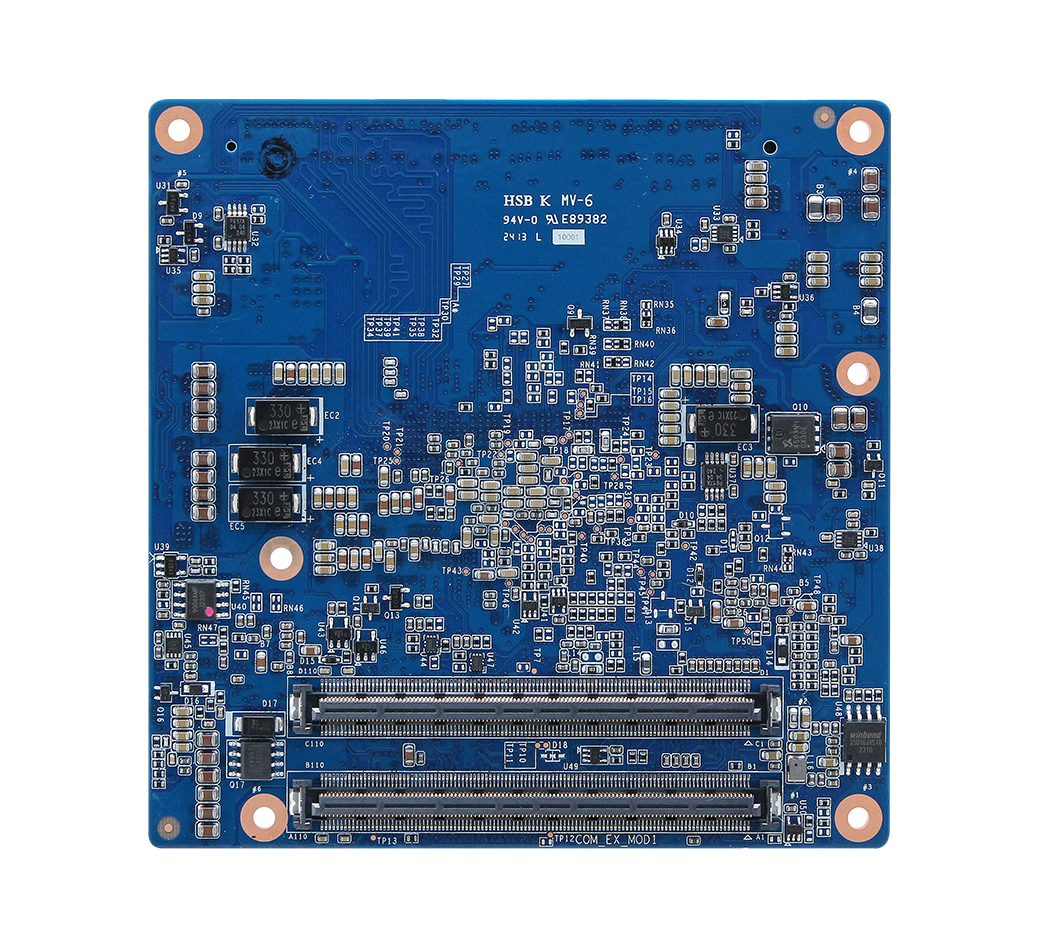

Processor

Intel® Atom® x7000RE Series Processors

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max,
support In-Band ECC memory protection (selected SKUs)

I/O Chipset

EC iTE IT5782VG-I-128/BX or Super IO Equivalent

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

TPM

Onboard TPM 2.0

Expansion

BOM1(default) : 4 x PCIe x1 Gen3
BOM2: 1 x PCIe x4 Gen3
BOM3: 2 x PCIe x1 Gen3

Storage

eMMC 5.1 Up to 128GB (Optional)

Graphic Chipset

Intel® UHD Graphics

Spec. & Resolution

HDMI 2.0b: 1920x1080 as Default or 4096x2160 @60Hz set by Bios.
*VBT1 use Vbios for Full HD/ no display audio. VBT3 use Vbios for output 4K/ support display audio
DP 1.4: 3840x2160 @60Hz
LVDS (via eDP-to-LVDS): 1920x1080 @60Hz, LVDS via CH7511B or 1 x eDP 1.4b(By BOM Optional): 1920x1080 @60Hz

Multiple Display

Triple Display Support

LVDS

CH7511B(eDP to LVDS)

DDI

DDIA: 2 CH LVDS (via eDP-to-LVDS) or eDP(By BOM Optional)
DDIB: DDI Signal
TCP0: DDI2 Signal or Type C Signal

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® i226-IT

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 11 64-bit, Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

BOM1(default) : 8 x USB2.0, 2 x USB3.2 Gen 2x1
BOM2: 8 x USB2.0, 4 x USB3.2 Gen 2x1
BOM3: 8 x USB2.0, 4 x USB3.2 Gen 2x1

COM Port

2 x UART (RX/TX Only)

SATA

BOM1(default) : 2 x SATA III
BOM2: N/A
BOM3: 2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x SMBus
1 x LPC
1 x eSPI (W-B 10Px1 1.0mm 90D for debug conn)
1 x I2C
1 x SPI

Operating Temp.

Extended -40°C ~ 80°C (-40°F ~ 176°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.16lbs (0.07kg)

Power Requirement

+9V ~ +19V

Power Mode

AT/ATX

Dimension (L x W)

3.74” x 3.74” (95 x 95 mm)

Ordering Information

ESM-ASLC-X13RE-A1R
Intel Atom® x7213RE COM Express Module 95*95 mm Type 6

ESM-ASLC-X33RE-A1R
Intel Atom® x7433RE COM Express Module 95*95 mm Type 6

ESM-ASLC-X35RE-A1R
Intel Atom® x7835RE COM Express Module 95*95 mm Type 6

ACC-ESMASLC-CL-1R
Cooler for ESM-ASLC W/FAN H=60mm for wide temp
