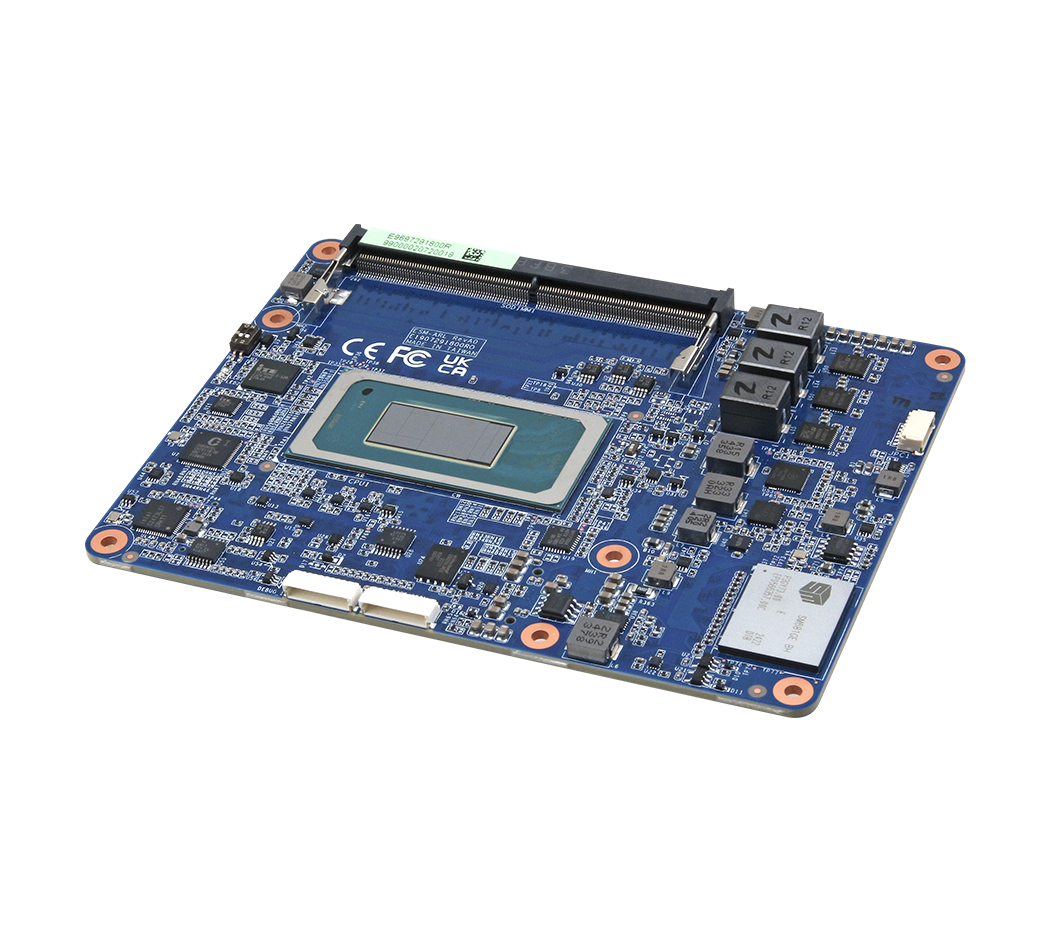

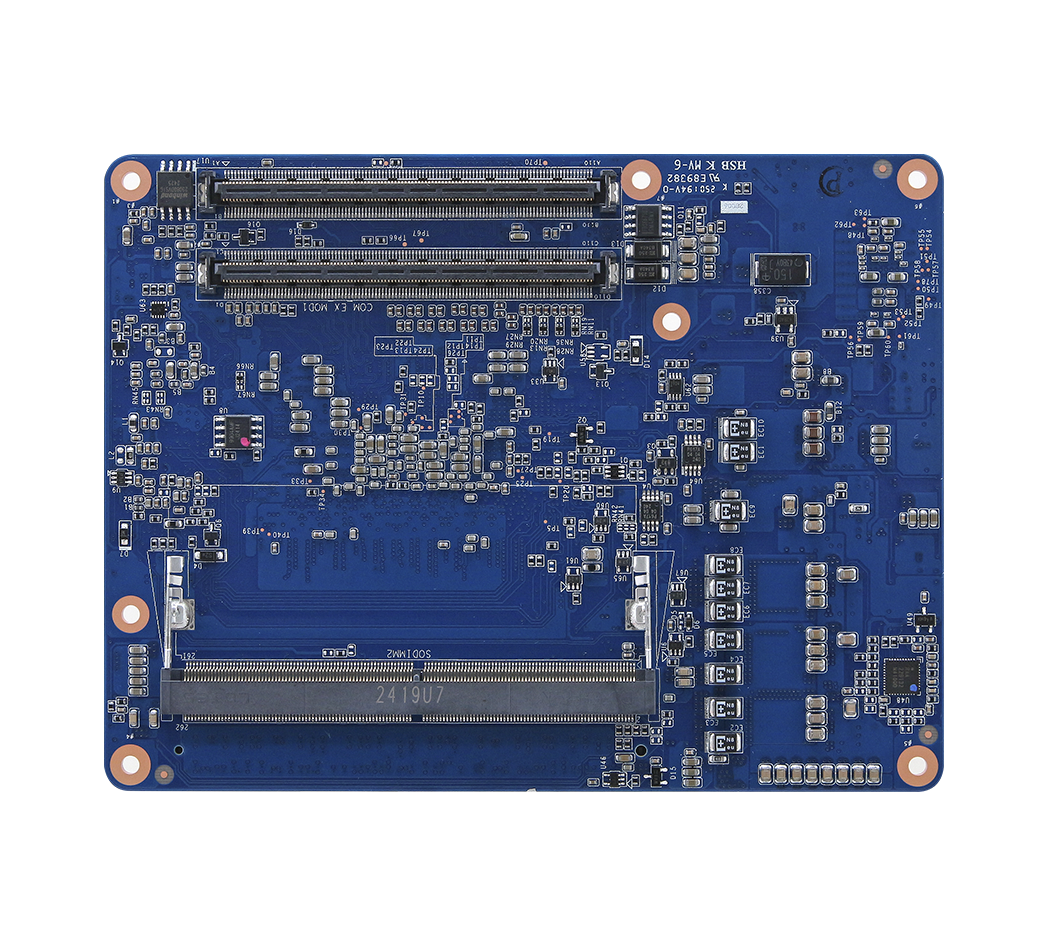

Processor

Intel® Core™ Ultra Processor U/H Series (TDP 28W/15W)

System Memory

2 x 262-Pin DDR5 5600MT/s SO-DIMM Up to 96GB

I/O Chipset

EC ITE IT5782VG-I-128/BX

Watchdog Timer

65536 level, 0 ~ 65535 sec

BIOS

AMI 256Mb UEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

Monitoring CPU Temperature, Voltage with Auto Throttling Control

TPM

Onboard NuvoTon NPCT760AABYX support TPM 2.0, co-lay Infineon SLB9670VQ2.0 FW7.85

Expansion

PEG (H series): 1 x PCIe x8 Gen5, 2 x PCIe x4 Gen4
PEG (U series): 3 x PCIe x4 Gen4
PCIe: Max 5 x PCIe x1 Gen4 or 1 x PCIe x1 Gen4,1 x PCIe x4 Gen 4 (configurable x1, or x2, or x4)

Storage

1 x NvMe (Option)

Graphic Chipset

Intel® Xe LPG

Spec. & Resolution

DDI (HDMI/Display Port):
Up to 3 x DDI Port Support Configurable HDMI/DisplayPort
-HDMI 2.1: 4096 x 2304 @ 60Hz
-DisplayPort 1.4 8K60
LCD (LVDS/eDP):
1 x LVDS (via CH7511B eDP-to-LVDS): 1920x1200 @60Hz (Default); or 1 x eDP 1.4b(By BOM Optional): Max 4K

Multiple Display

Quad Simultaneous Independent Display

LVDS

1 x LVDS (via CH7511B eDP-to-LVDS): 1920x1200 @60Hz

DDI

Up to 3 x DDI Port Support Configurable HDMI/DisplayPort
-HDMI 2.1: 4096 x 2304 @ 60Hz
-DisplayPort 1.4 8K60

Audio Codec

Intel® HD Audio integrated in SoC

LAN Chipset

1 x Intel® i226 2.5G Gigabit Controller

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

OS

Windows 11, Ubuntu 24.04

Certification Information

CE, FCC Class, RoHS Compliant

USB

USB4: Up to 2 ports, Co-lay with DDI and in place of DDI1 & DDI2
USB3.2 (Gen2): 4 Ports (10 Gbps)
USB2.0: 8 Ports (480 Mbps)

COM Port

2 x UART (RX/TX Only)

SATA

2 x SATAIII (6.0Gb/s)

DIO

8 bit GPIO from EC

MIO

1 x SMBus
1 x LPC (via eSPI-to-LPC bridge IC ITE_IT8883FN)
1 x I2C
1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.226lbs (0.101Kg) without NvMe
0.227lbs (0.103Kg) with NvMe

Power Requirement

+9V~+19V

Power Mode

AT/ATX

Dimension (L x W)

4.92" x 3.74" (125*95 mm)

Ordering Information

TBD
