ESM-APLC

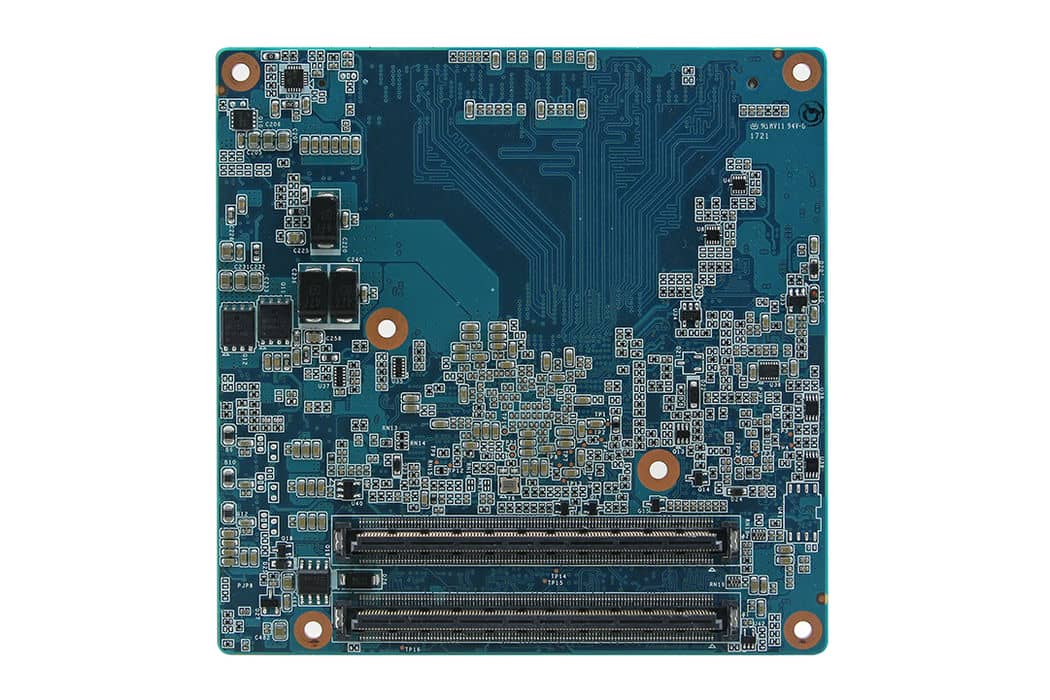

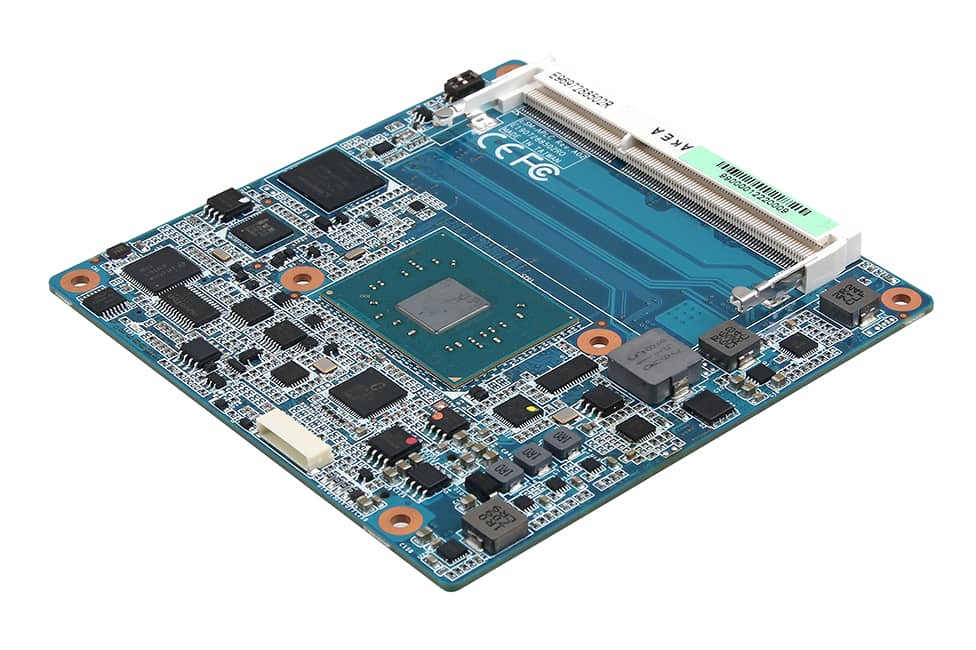

Intel® Celeron®N3350,J3455 / Pentium®N4200 SoC Processor Type6 COMe Compact Module

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet
  • Onboard Intel® Celeron®N3350,J3455 / Pentium® N4200 SoC BGA Processor
  • 1 x 204-Pin DDR3L 1600&1333MHz SO-DIMM, Supports Up to 8GB (Non-ECC)
  • 1 x Intel® I210AT
  • Intel® HD Audio Integrated on CPU
  • eMMC 5.0 Up to 64GB (Optional)
  • Onboard TPM 2.0 Optional
  • COMe Type 6 Compact Size: 3.74” x 3.74” (95 x 95 mm)
  • Type 6 Rev 2.1 Pin-out
  • DC in +9~+19V
  • Specification
  • Document
  • FAQ

ProductSpecification

System Information

  • Processor

    Intel® Pentium® N4200 4C 1.1GHz / 6W
    Intel® Celeron® N3350 2C 1.1 GHz / 6W
    Intel® Celeron® J3455 4C 1.5 GHz / 10W

  • System Memory

    1 x 204-Pin DDR3L 1600&1333MHz SO-DIMM, Supports Up to 8GB (Non-ECC)

  • I/O Chipset

    EC iTE IT8528VG

  • Watchdog Timer

    H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

  • BIOS

    AMI uEFI BIOS, 128Mbit SPI Flash ROM

  • H/W Status Monitor

    Monitoring System Temperature
    Voltage and FAN Status with Auto Throttling Control

  • TPM

    Onboard TPM 2.0 Optional

Expansion

  • Expansion

    4 x PCIe x1 or 1 x PCIe x4 while Removing Ethernet, Compliant to PCIe (Gen2), 3 Ports Optional

Storage

  • Storage

    eMMC 5.0 Up to 64GB (Optional)

Display

  • Graphic Chipset

    Intel® SoC Integrated Graphics

  • Spec. & Resolution

    VGA: Max. Resolution 1920x1200@60Hz
    LVDS: Max. Resolution 1920x1200@60Hz
    HDMI: Max. Resolution 3840x2160@30Hz
    DP: Max. Resolution 4096x2160@60Hz

  • Multiple Display

    Support Dual Channel18/24 bit LVDS, Display Port, HDMI, VGA, eDP (Optional)

  • LVDS

    CH7511B(eDP to LVDS)

  • DDI

    HDMI
    DP
    DisplayPort

Audio

  • Audio Interface

    Intel® HD Audio Integrated on CPU

Ethernet

  • LAN Chipset

    1 x Intel® I210AT

  • Ethernet Interface

    10/100/1000 Base-Tx Gigabit Ethernet Compatible

Software Support

  • OS

    Windows 10 Enterprise (64-bit)
    Linux (Kernel 4.5) above

Certification

  • Certification Information

    CE, FCC Class, RoHS Compliant

I/O

  • USB

    4 x USB 3.0
    8 x USB 2.0

  • COM Port

    2 x UART (RX/TX Only)

  • SATA

    2 x SATA III

  • DIO

    1 x 8-bit GPIO

  • MIO

    1 x SMBus
    1 x LPC
    1 x I2C

Mechanical & Environmental

  • Operating Temp.

    Standard 0°C ~ 60°C (32°F ~ 140°F)

  • Storage Temp.

    -40°C ~ 75°C (-40°F ~ 167°F)

  • Operating Humidity

    40°C @ 95% Relative Humidity, Non-condensing

  • Weight

    0.44lbs(0.2Kg)

  • Power Requirement

    +9V ~ +19V

  • Power Mode

    AT/ATX

  • Dimension (L x W)

    3.74” x 3.74” (95 x 95 mm)

Ordering Information

  • Ordering Information

    ESM-APLC-N42-A3R
    Intel® Pentium®  SoC Processor N4200  Type6 COMe Compact Module

    ESM-APLC-N33-A3R
    Intel® Celeron®  SoC Processor N3350 Type6 COMe Compact Module

    ESM-APLC-J34-A3R
    Intel® Celeron®  SoC Processor J3455 Type6 COMe Compact Module

    EEV-EX14-B1R
    mATX Ev. Board for COMe Type 6 A2

    ACC-ESMAPLC-SK-1R
    Heatsink for ESM-APLC W/O FAN H=22.5mm

    ACC-ESMAPLC-SD-1R
    Heatspreader  for ESM-APLC W/O FAN H=8.0mm
