EMX-TWLP

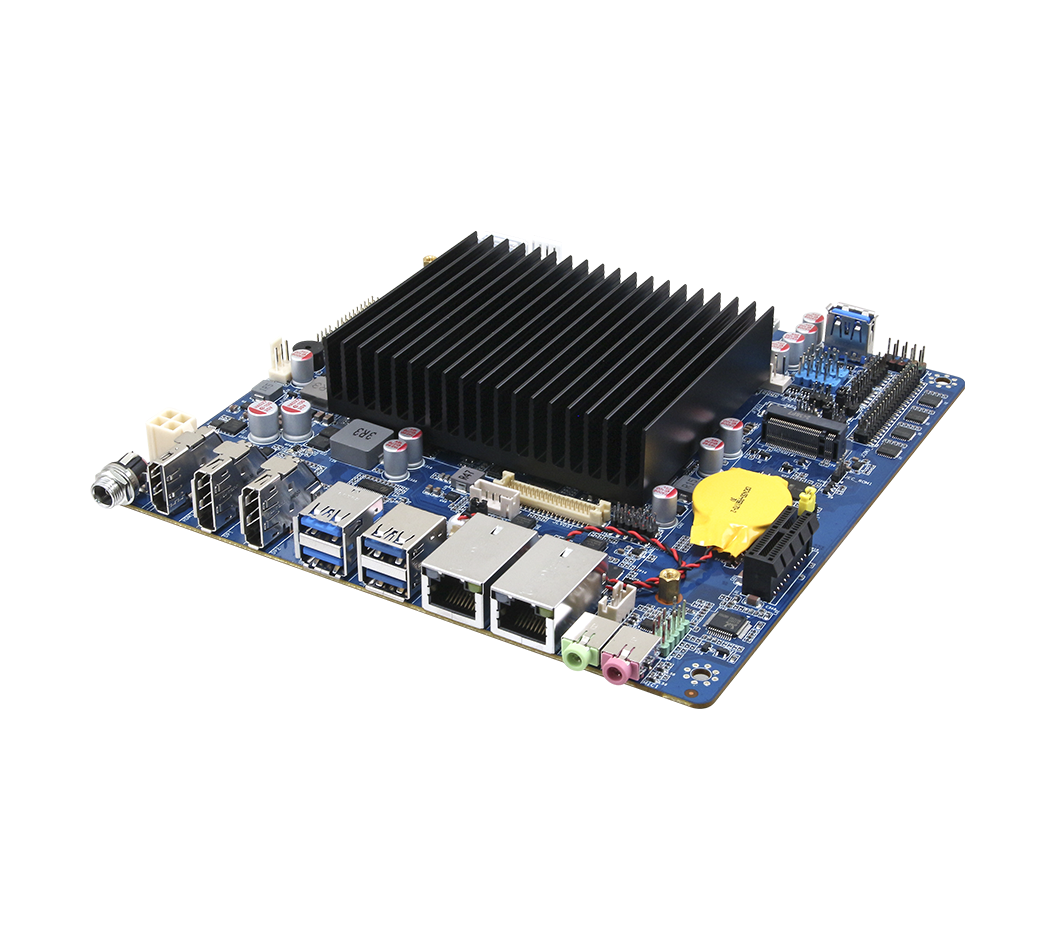

Onboard Intel® Processor N150, N250 & Intel® Core™ 3 Processor N355, Thin Mini ITX Motherboard
- Onboard Intel® Processor N150, N250 & Intel® Core™ 3 N355 series processors, Thin Mini ITX Motherboard
- 1 x 262-pin DDR5 4800 MHz SO-DIMM Socket, Supports up to 16GB Max
- HDMI, DP++, DP, eDP or LVDS, Supports up to triple display
- 1 x PCIe Gen3 x1
- 2 x Intel® i226V
- 2 x USB3.2 Gen2, 3 x USB3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Type B, 1 x M.2 Key E, 1 x M.2 Key M
- 6 x COM
- DC in +12V~24V
ProductSpecification
System Information
-
Processor
Onboard Intel® Processor N150, N250 & Intel® Core™ 3 Processor N355
-
System Memory
1 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 16GB
-
I/O Chipset
EC iTE IT5782VG
-
Watchdog Timer
H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
-
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
-
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control -
TPM
Onboard nuvoTon NPCT754AADYX support SPI TPM 2.0
-
Board
Thin Mini ITX
Expansion
-
Expansion
1 x M.2 Type B slot for 3042/3052/2242 size with USB 3.2 Gen1x1, USB 2.0, SIM Slot for LTE/IO Cards support WWAN+GNSS
1 x M.2 Key E 2230 (1 x PCIe Gen3 x1 & USB 2.0 Signal)
1 x M.2 Type M 2242/2280 SSD Support PCIe Gen3 x1 or SATA III
Display
-
Graphic Chipset
Intel® Graphics
-
Spec. & Resolution
1 x HDMI 2.0b
HDMI 2.0b Max resolution 4096 x 2160@60Hz
1 x DP++
DP++ Max resolution 1920 x 1080@60Hz
1 x DP 1.4a Max resolution 4096 x 2160@60Hz
1 x eDP or LVDS
eDP 1920 x 1080@60Hz (2 Lanes)
LVDS 1920 x 1080 (Dual Channel 18/24-bits) -
Multiple Display
Triple Display
-
LVDS
1 x LVDS (Dual Channel 18/24-bits) or 1 x eDP (2 Lanes)
Chrontel CH7513A-BF eDP to LVDS Converter
Audio
-
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
-
Audio Interface
Mic-in, Line-out
-
Audio Amplifier
2 x 2W 4Ω Amplifier
Ethernet
-
LAN Chipset
2 x Intel® i226V 2.5 Gigabit Ethernet
-
Ethernet Interface
100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet
-
LAN Port
2 x RJ-45
Software Support
-
OS
Windows 10, Windows 11, Linux
Certification
-
Certification Information
CE, FCC, RoHS Compliant

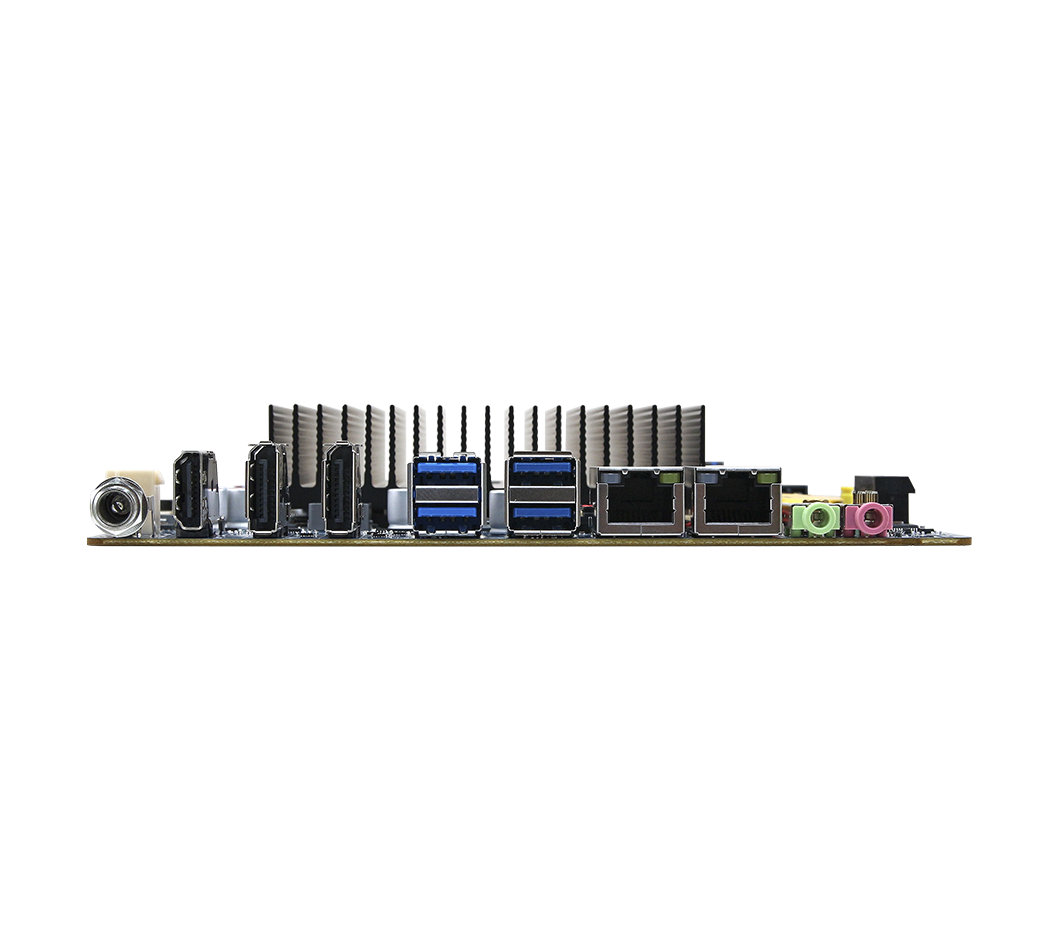

I/O
-
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Vertical Type A
4 x USB 2.0 -
COM Port
4 x RS232
2 x RS232/422/485 -
SIM Slot
Co-lay 1 x 10pin FPC Connector for SIM Card Adapter
-
SATA
1 x SATA III
1 x SATA Power -
DIO
1 x 16-bit GPIO
Mechanical & Environmental
-
Operating Temp.
0~60°C (32~140°F) with 0.5m/s air flow
-
Storage Temp.
-40 ~ 75°C (-40 ~ 167°F)
-
Operating Humidity
40°C at 95% relative humidity, non-condensing
-
Weight
0.88lbs (0.4Kgs)
-
Power Requirement
DC in +12V~24V
-
Power Mode
AT/ATX (Default Setting: ATX)
-
Dimension (L x W)
6.7" x 6.7" (170mm x 170mm)
Ordering Information
-
Ordering Information
EMX-TWLP-N150-A1R
EMX-TWLP/N150/6COM/9USB/2LAN/A1
EMX-TWLP-N250-A1R
EMX-TWLP/N250/6COM/9USB/2LAN/A1
EMX-TWLP-N355-A1R
EMX-TWLP/N355/6COM/9USB/2LAN/A1
