Processor

Intel® Core™ Ultra processor (Series 3) Series

System Memory

2 x 262-Pin DDR5 (H404)6400MHz, (H484)7200MHz SoDIMM/CSoDIMM Socket Supports Up to 64GB

I/O Chipset

uBMC IT5792 or equivalent for remote out-of-band management and IPMI support.

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX (7.2.3.1) support TPM 2.0

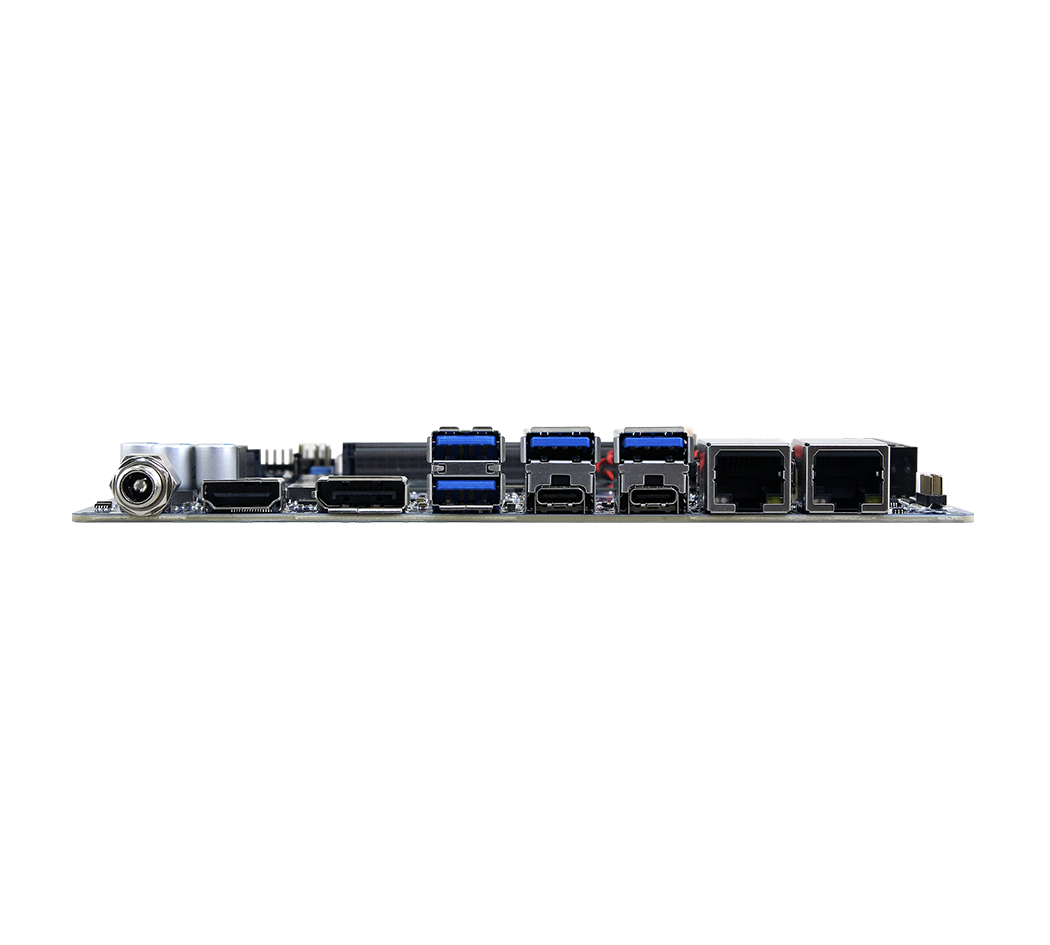

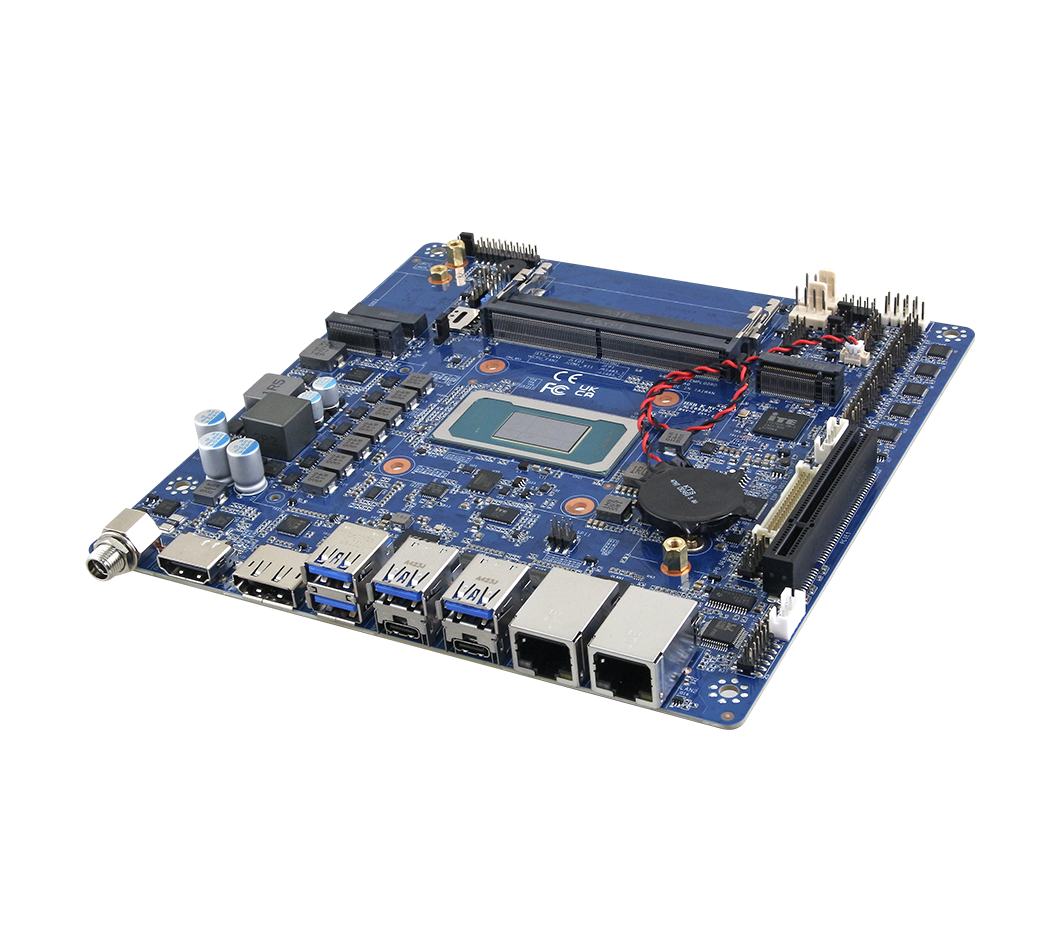

Board

Thin Mini ITX

Expansion

1 x PCIe x8 Gen5 (H484 only)
1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS
1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)
1 x M.2 Key M 2280 (PCIe x4 Gen5) Slot for Storage NVMe SSD
1 x M.2 Key M 2280 (PCIe x4 Gen4) Slot for Storage NVMe SSD

Graphic Chipset

Intel® Xe LPG Graphics

Spec. & Resolution

1 x HDMI 2.1: 7680 x 4320 @60Hz
1 x DP1.4a: Max: 7680 x 4320@60Hz
2 x USB Type C supports 3840 x 2160@60Hz
LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) or eDP1.4: Max 1920x1080 60Hz (2 Lanes)

Multiple Display

2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP
(Maximum: 6 for Quadruple Independent Displays)

LVDS

1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support MIC-in, Line-out, Line-in via internal connector

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

1 x Intel® i210AT Gigabit Ethernet Controller
1 x Intel® i226LM 2.5 Gigabit Ethernet Controller

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

DC Input

12~24V

OS

Windows 11 LTSC
Linux

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB Type C, 5V@3A
4 x USB 3.2 Gen2 x1
3 x USB 2.0

COM Port

3 x RS232 (JCOM1 ~ JCOM3)
2 x RS422/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

DIO

1 x 16-bit GPIO

Operating Temp.

Intel@ Commercial Temperature CPU SKU support: 0~60°C
**w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

Shipping w/o cooler: 0.603lbs (0.27kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-PTLP-H404-A1R
EMX-PTLP-H484-A1R
