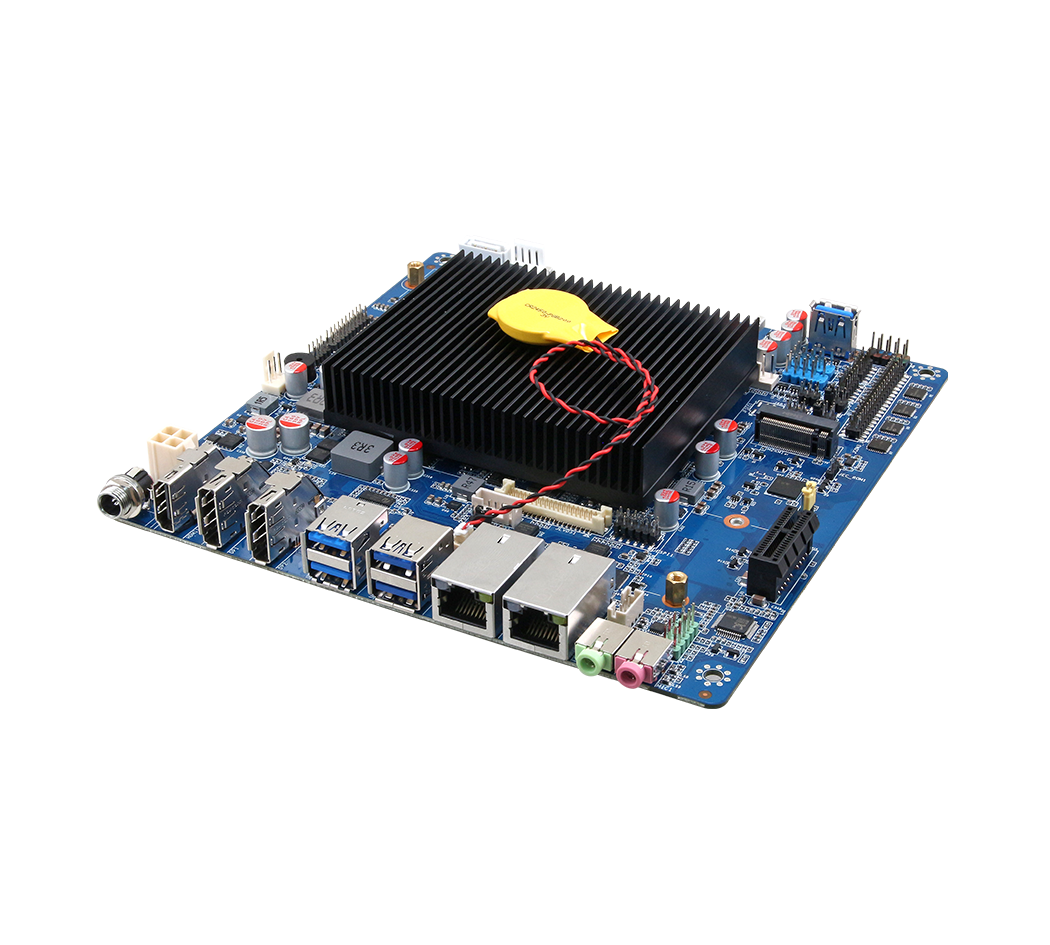

Processor

Onboard Intel® Processor N97, and Intel® Core™ i3-N305 Processor, Intel Atom® x7000RE series processors

System Memory

1 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 16GB

I/O Chipset

EC iTE IT5571

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT754AADYX support SPI TPM 2.0

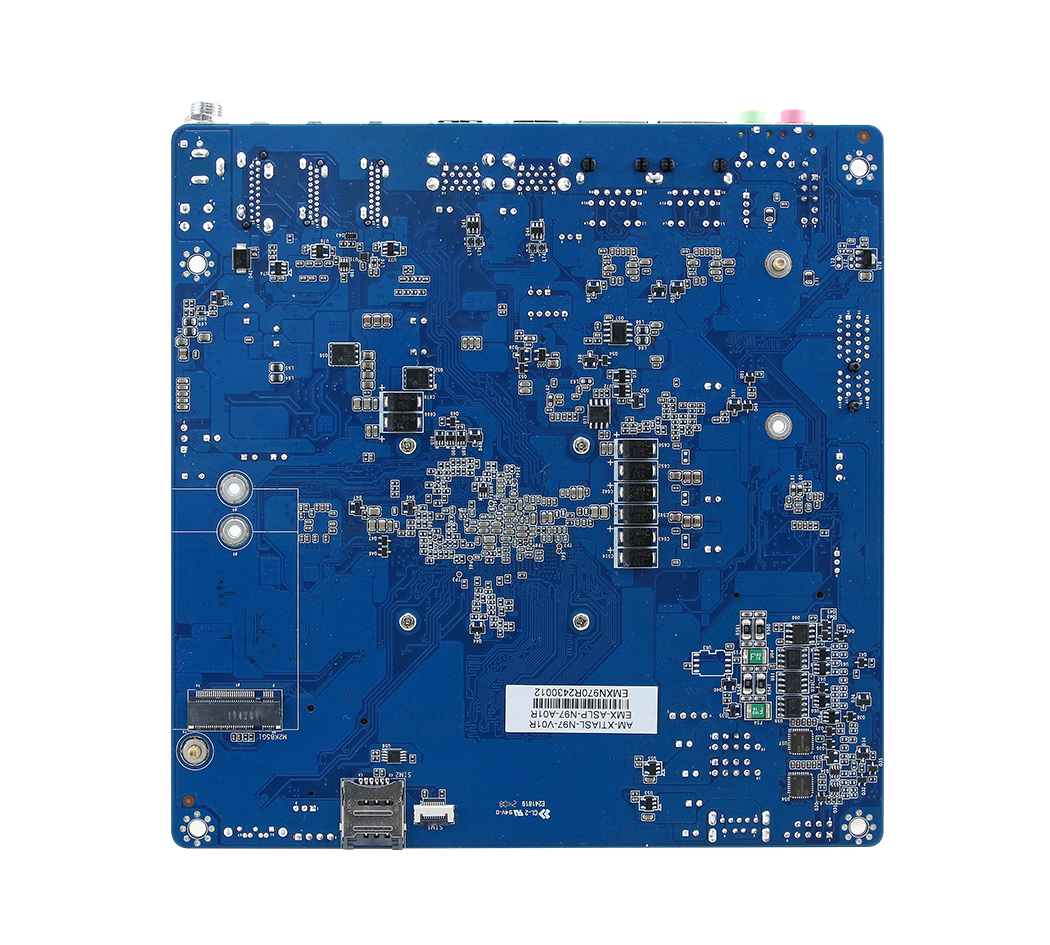

Board

Thin Mini ITX

Expansion

1 x M.2 Type B slot for 3042/3052/2242 size with USB 3.2 Gen1x1, USB 2.0, SIM Slot for LTE/IO Cards support WWAN+GNSS
1 x M.2 Key E 2230 (1 x PCIe Gen3 x1 & USB 2.0 Signal)
1 x M.2 Type M 2242/2280 SSD Support PCIe Gen3 x1 or SATA III

Graphic Chipset

Intel® UHD Integrated Graphics

Spec. & Resolution

1 x HDMI 2.0b
HDMI 2.0b Max resolution 4096 x 2160@60Hz
1 x DP++
DP++ Max resolution 1920 x 1080@60Hz
1 x DP 1.4a Max resolution 4096 x 2160@60Hz
1 x eDP or LVDS
eDP 1920 x 1080@60Hz (2 Lanes)
LVDS 1920 x 1080 (Dual Channel 18/24-bits)

Multiple Display

Triple Display

LVDS

1 x LVDS (Dual Channel 18/24-bits) or 1 x eDP (2 Lanes)
Chrontel CH7513A-BF eDP to LVDS Converter

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

2 x 2W 4Ω Amplifier

LAN Chipset

2 x Intel® i226V or i226IT 2.5 Gigabit Ethernet

Ethernet Interface

100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet

LAN Port

2 x RJ-45

OS

Windows 10, Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

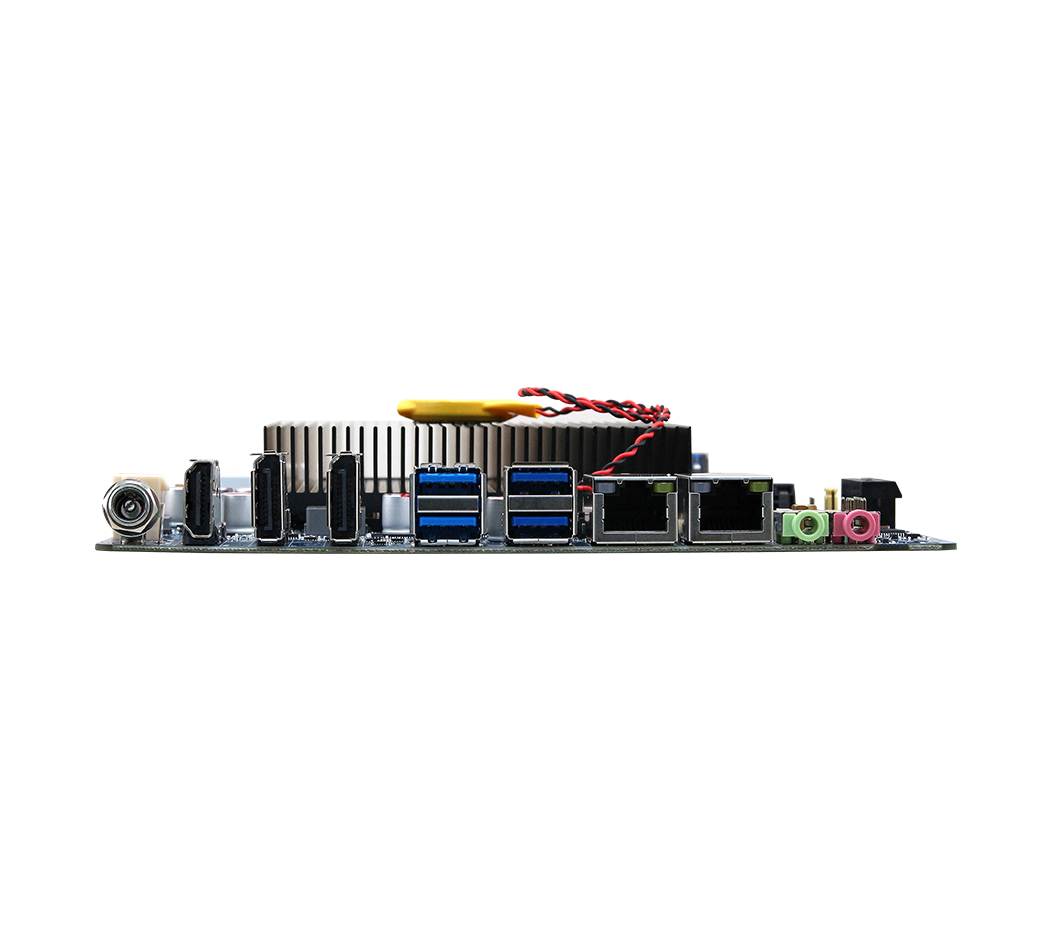

USB

2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Vertical Type A
4 x USB 2.0

COM Port

4 x RS232
2 x RS232/422/485

SIM Slot

Co-lay 1 x 10pin FPC Connector for SIM Card Adapter

SATA

1 x SATA III
1 x SATA Power

DIO

1 x 16-bit GPIO

Operating Temp.

Standard Temperature: 0~60°C (32~140°F) with 0.5m/s air flow
Extend Temperature: -20~70°C (-4~158°F) with 0.5m/s air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-ASLP-N97-A1R
EMX-ASLP/N97/6COM/9USB/2LAN/A1

EMX-ASLP-7433-A1R
EMX-ASLP/X7433RE/6COM/9USB/2LAN/A1
