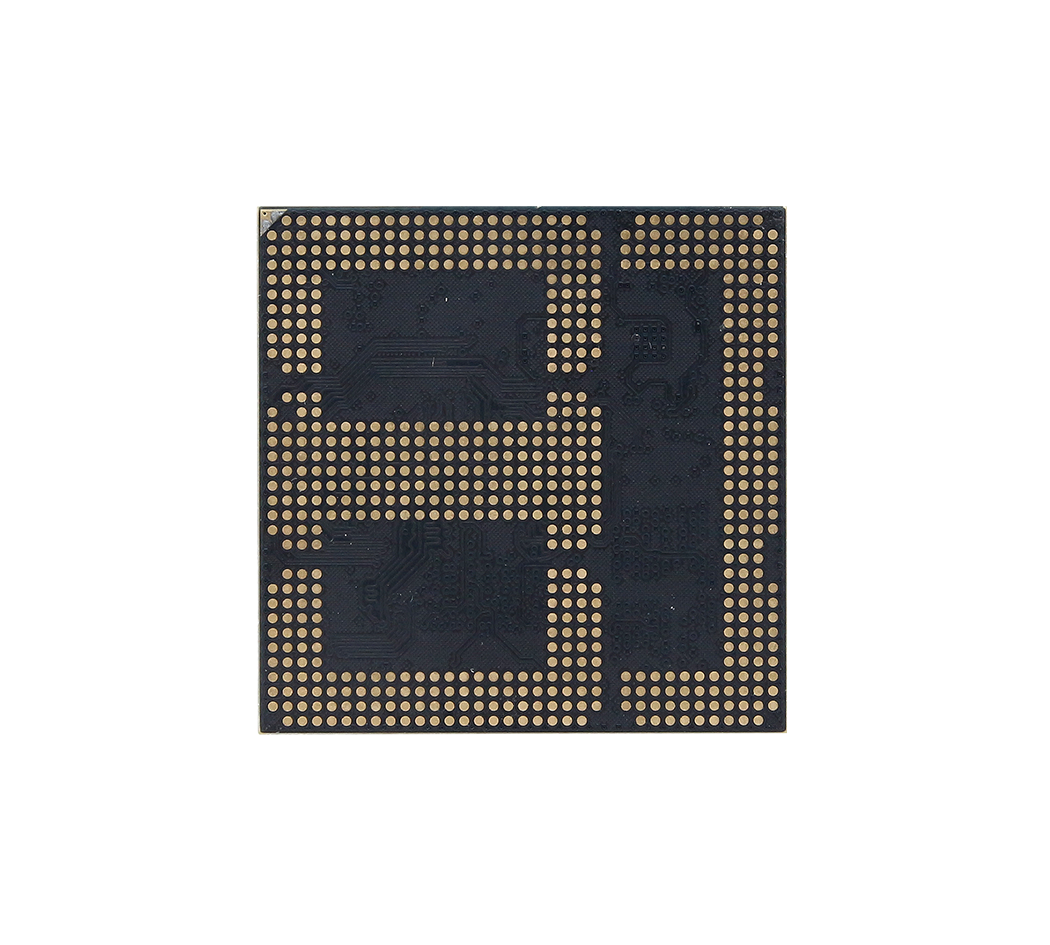

System Memory

2GB LPDDR4

Processor

Quad-core Cortex-A53
Core Cortex-M4

Chipset

NXP iMX8M Mini Arm

Storage

8GB eMMC 5.1

PCIe

1 x 2.0

GPIO

x 24 ( 3 share with PWM)

HDMI

x 1 , 4k60Hz

I2C

x 3

MIPI CSI

x 1 (4 lane)

MIPI DSI

x 1 (4 lane)

SPDIF

x 1

I2S

x 1

SPI

x 2

LAN

1 x Ethernet 1000M

SDIO

2 x SDIO 3.0

COM

1 x debugging port
3 x UART

USB Port

2 x USB Host 2.0

Certification Information

CE, FCC Class B

Storage Temperature

-40~85 Degree

Dimension

45mm x 45mm (Size-L)

Power Requirement

DC input voltage 5V

Operating Humidity

5% to 95%, non-condensing

Operating Temperature

Industry：-40~80 Degree

OS Information

Yocto 2.5 and 4.0

Ordering Information

TBD

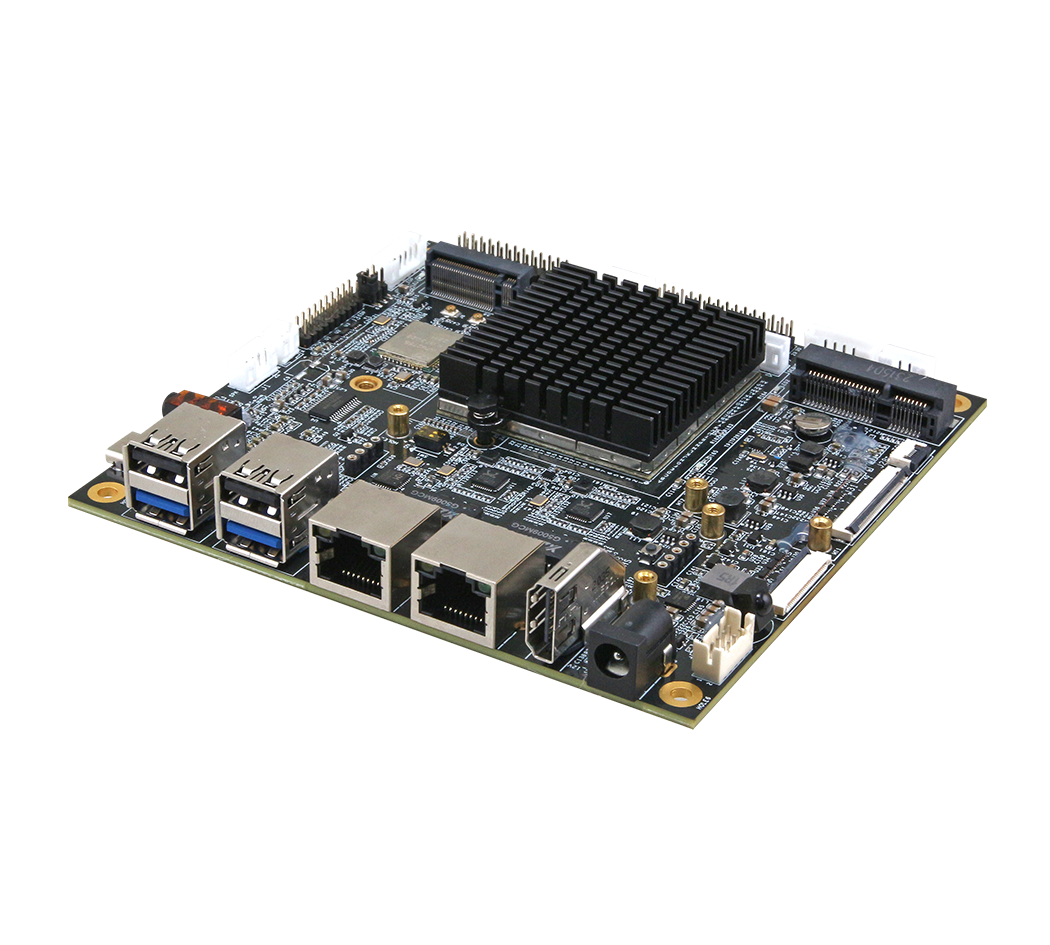

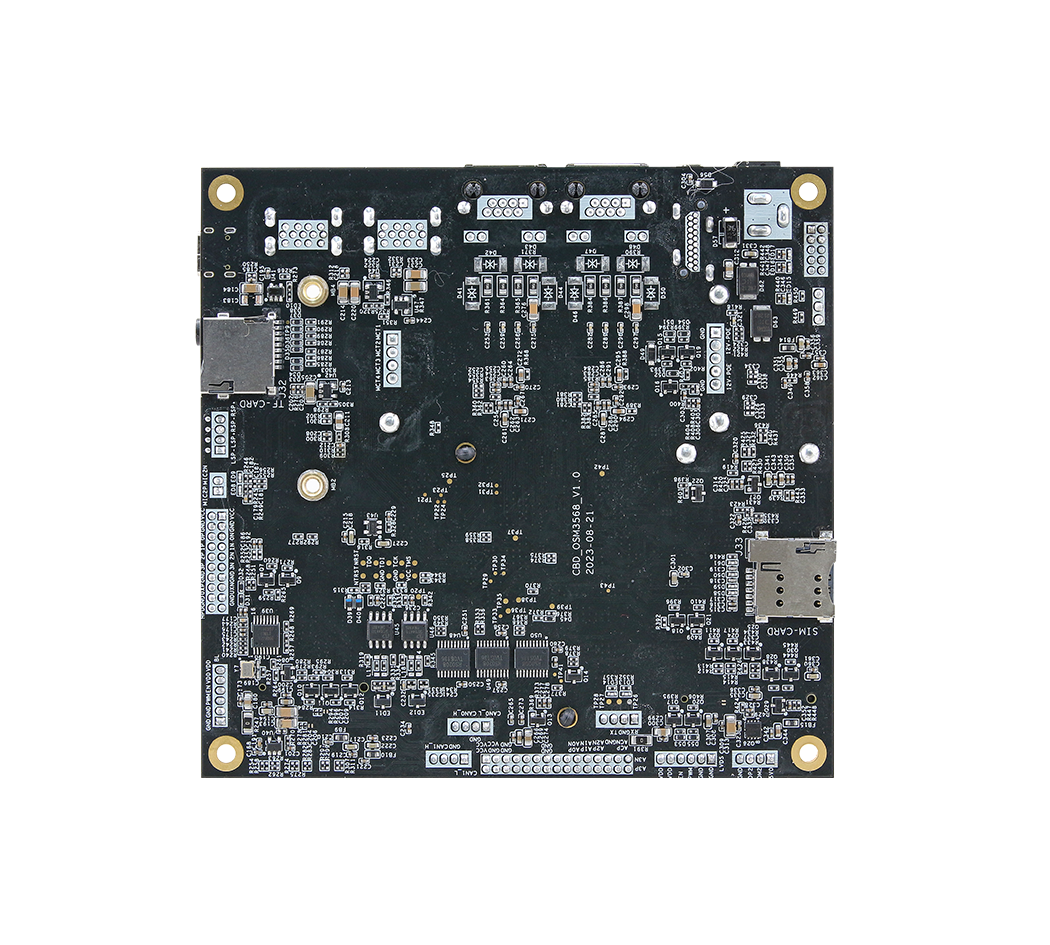

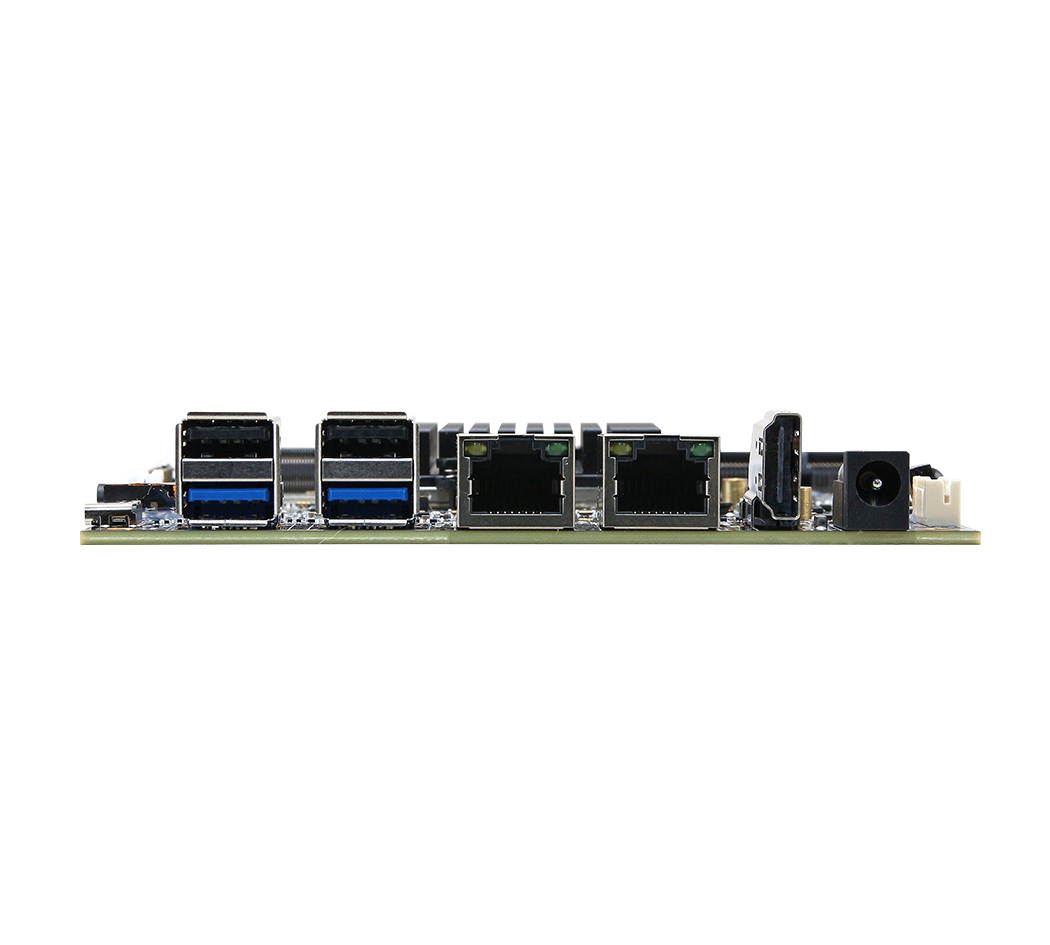

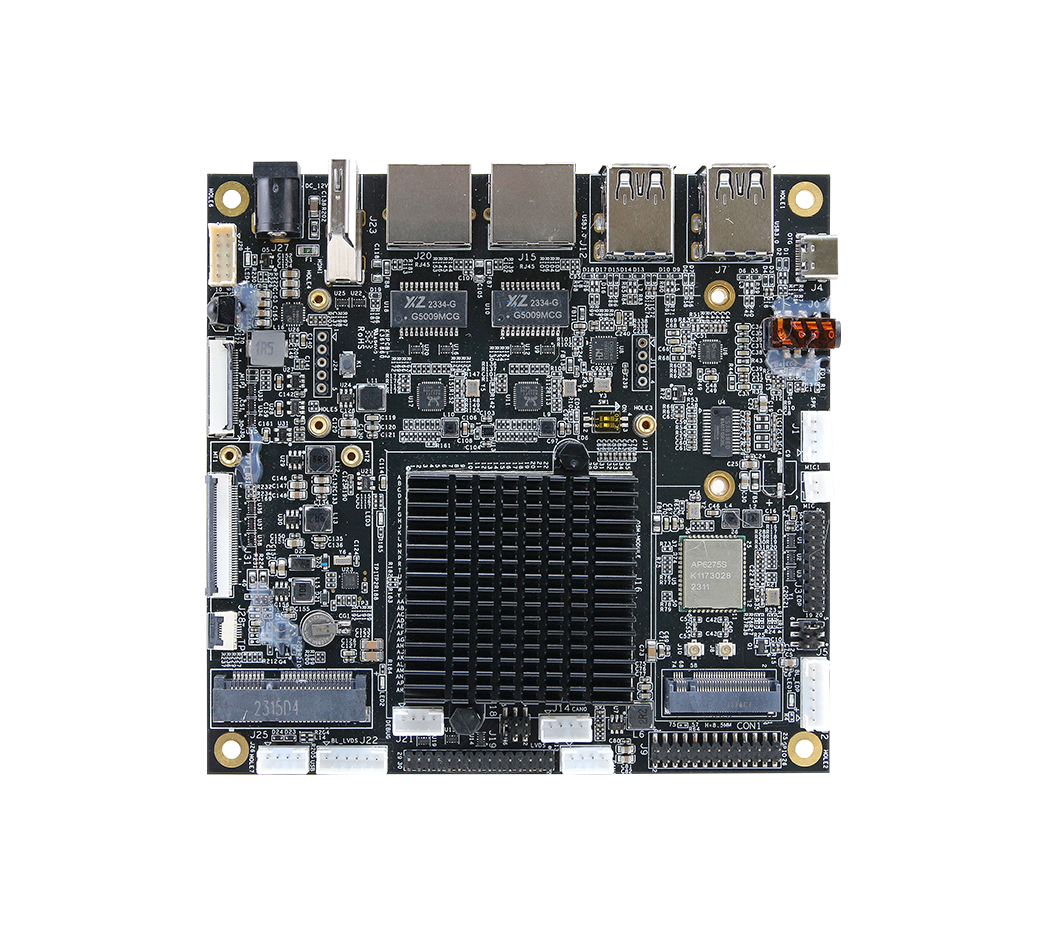

Gigabit Ethernet

x 1 Port(JP2 Support POE PD Function with POE Module)

Wi-Fi/BT

AP6275S module,support 802.11 a/b/g/n/ac

USB

x 2 (2 x USB 2.0 Type A, 1 x Expansion Connector)

Micro SD Slot

x 1

SIM Card Slot

x 1

Mini-PCIE

x 1 (Support 4G module)

MIPI CSI

x 1

IR Module

x 1 (Support USB IR RECEIVE MODULE)

Speaker

x 1

DC-IN

12V/2A

SW

K1 (Recovery mode)

Dimensions

125 x 120 mm
