80 Port code transfer to WebUI interface

檔案編號

2023081640
類別

軟體 Application
更新日期

2023-09-20
修訂版本

A1

匯出PDF文件

型號名稱

HPM-246UA HPM-621DE HPM-621UA HPM-SRSUA HPS-246U4A HPS-246UTA HPS-621D4A HPS-621DTA HPS-621U2A HPS-621U4A HPS-621UTA HPS-SRSU4A HPS-SRSUTA HPM-SRSDE HPS-SRSD4A HPM-SIEUA HPM-ERSUA HPM-ERSDE HPS-ERSU4A HPS-ERSUTA HPS-ERSD4A HPS-SRSD4A_(複製1662) GAI-ERSR-70B GAI-ERSR-70B-Lite GAI-ERSR-33B HPS-SIEU4A HPS-SIEUTA HPM-GNRDE HPS-ERSU2A HPM-GNRUA HPS-ERSU1A HPS-GNRD4A HPS-GNRU4A

目的

For debugging purpose, it's helpful by knowing which stage the BIOS code has executed with 80 port code information.

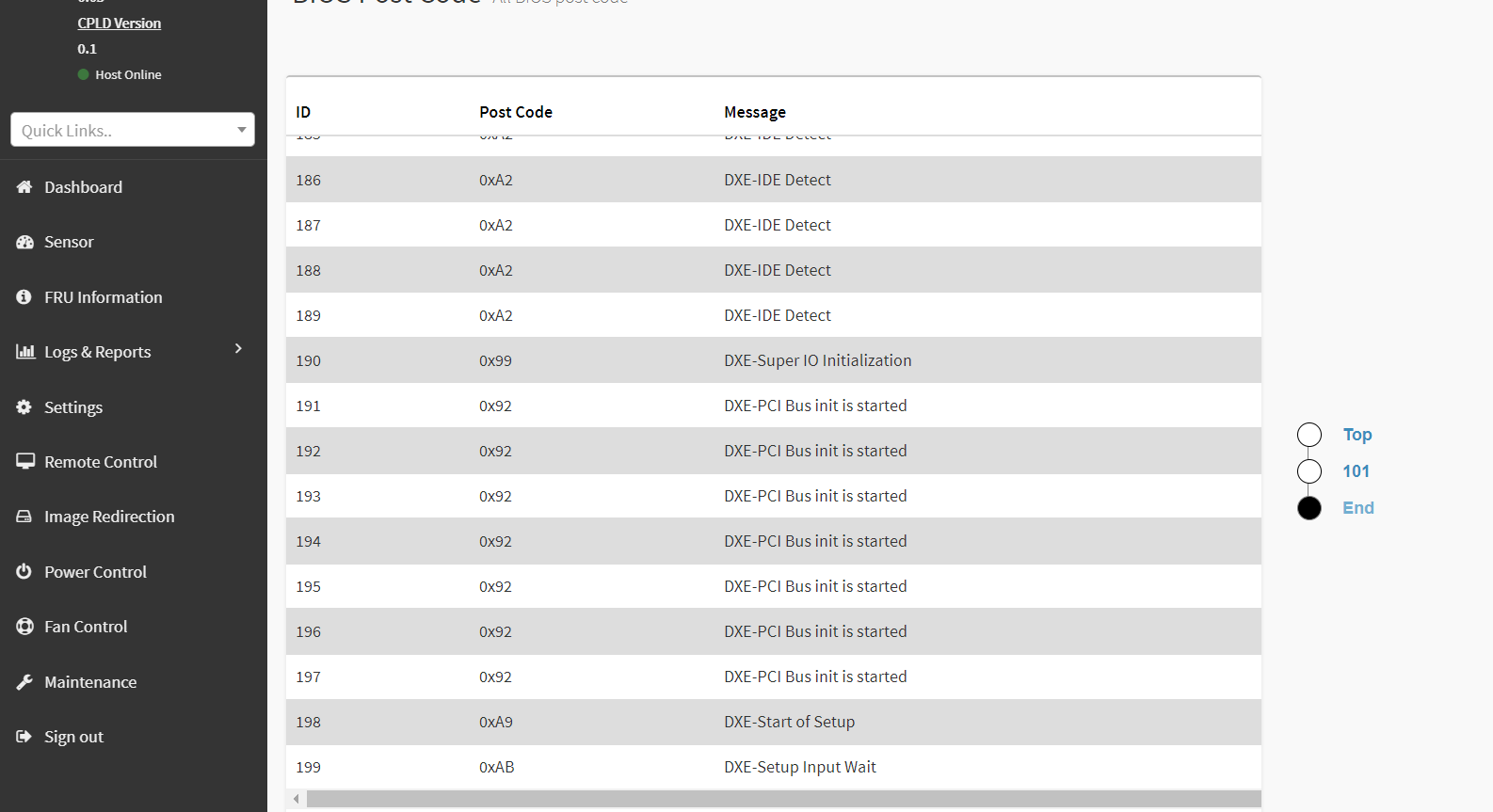

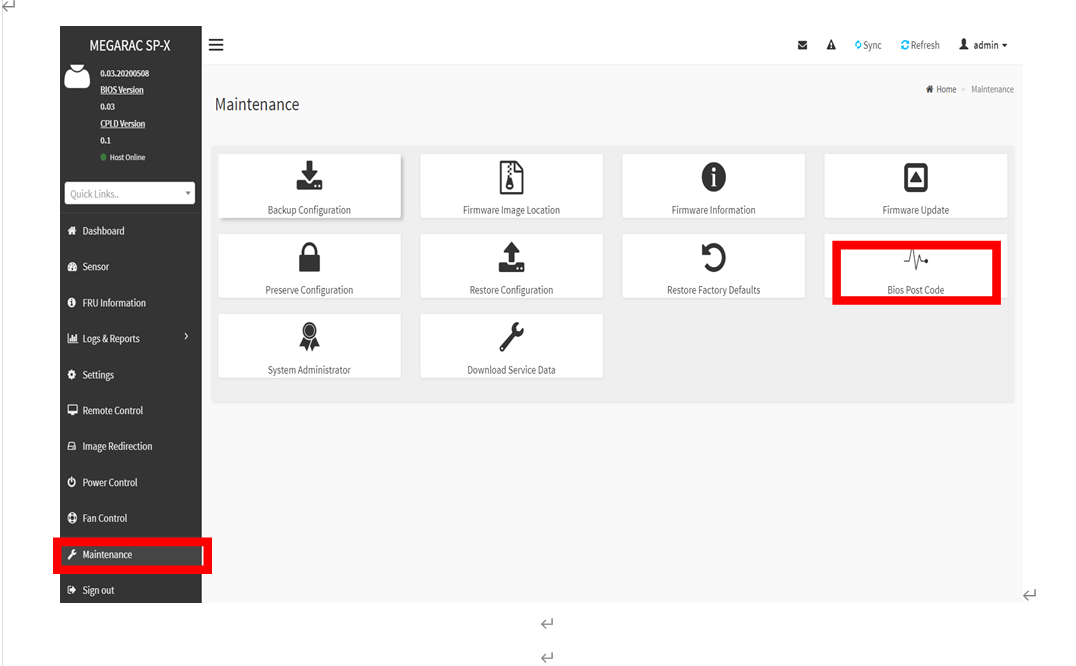

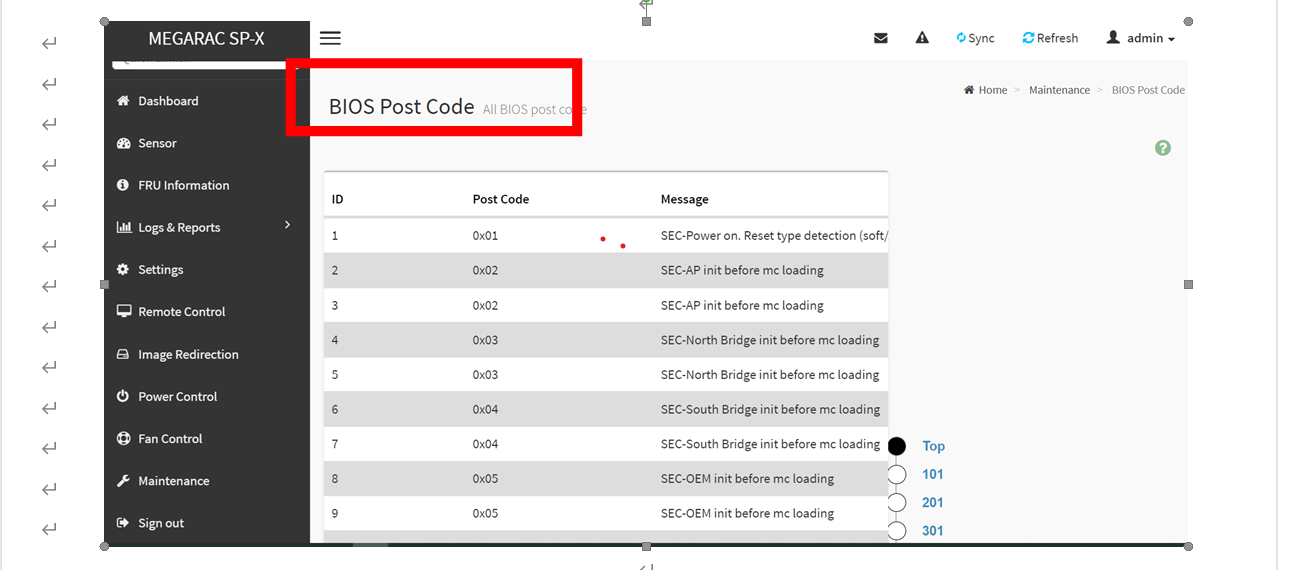

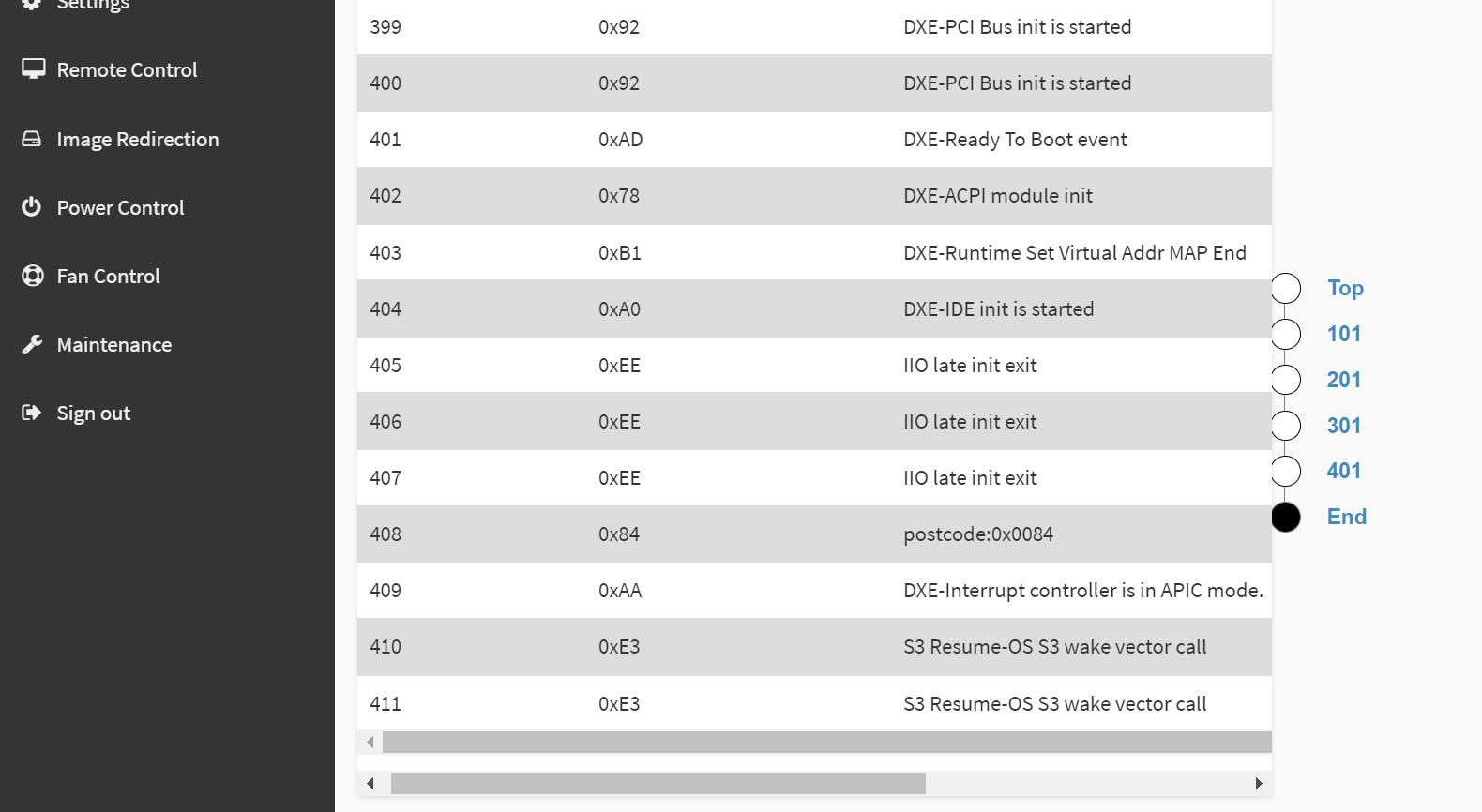

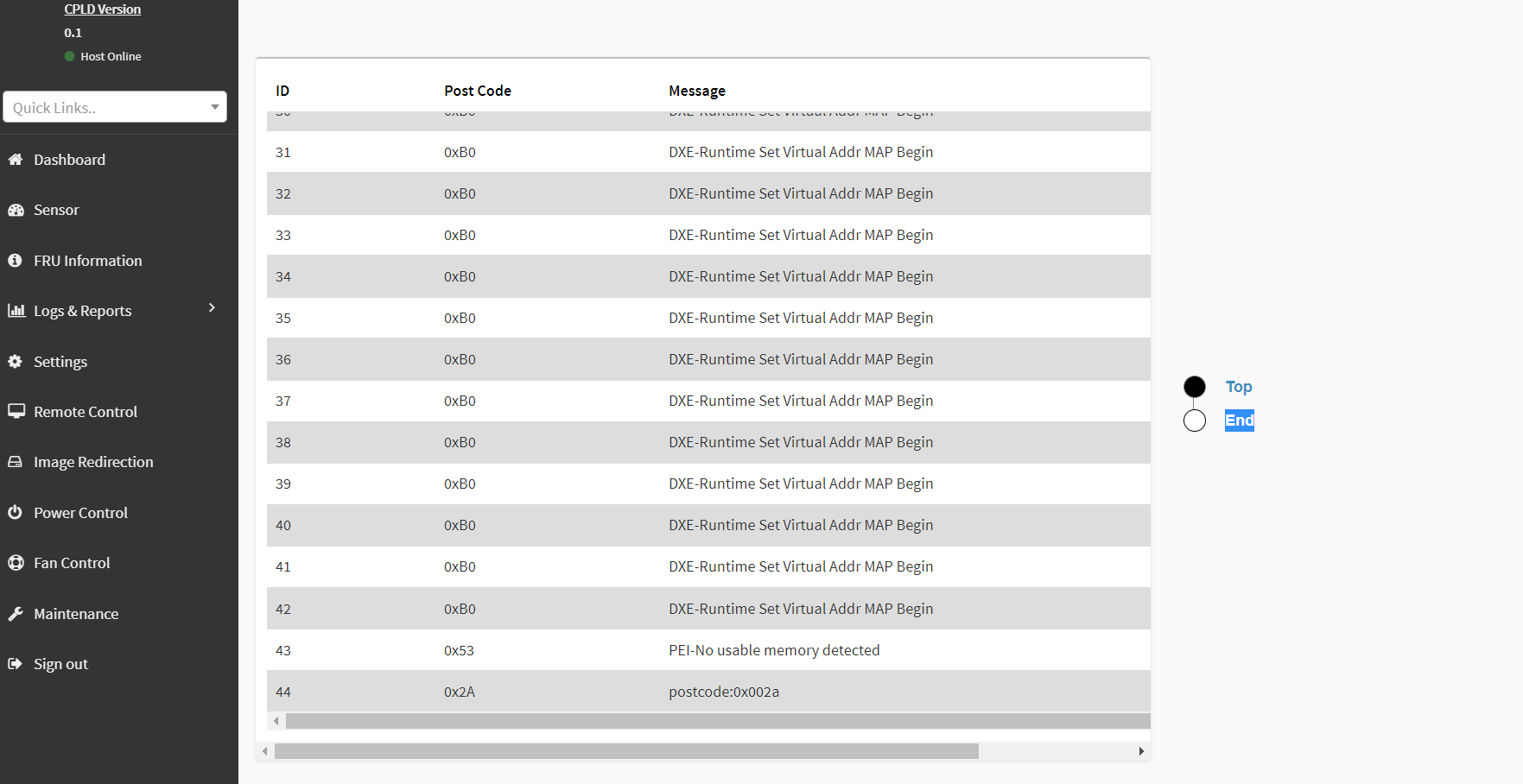

1. Through WebUI interface, click Maintenance button in the lower left corner for BIOS
Post Code information.
