SID-15W04

15.6" Semi Industrial Panel PC with Intel® Celeron™ Processor J3455

Get a Quote

Comparison

資料表

Get a Quote

Comparison

資料表

15.6" 1920 x 1080 Semi Industrial Panel PC with True-flat PCAP touch
Intel® Celeron® Processor J3455
1 x 204 pin SO-DIMM DDR3L 4GB (8GB for BOM Option)
32GB eMMC / 1 x M.2 B Key for SSD
Fanless operation from 0°C ~ 40°C
Wide voltage input +12 ~ 24Vdc

規格
檔案
常見問題

產品規格

System Information

Processor

Intel® Celeron® Processor J3455
System Memory

1 x 204 pin SO-DIMM DDR3L 4GB (8GB for BOM Option)

Storage

Storage

32GB eMMC
Other Storage Device

1 x Micro SD Slot

Display

Graphic Chipset

Intel® HD Graphics 500

Ethernet

LAN Chipset

1 x Realtek RTL8211FI-CG
Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V

Software Support

OS

Windows 10 / Ubuntu 20.04

Certification

Certification Information

CE, FCC Class B

Panel

LCD Size

15.6"
LCD Panel

TFT LCD
Resolution

1920 x 1080
Pixel pitch

0.17925 x 0.17925 mm
Luminance

220 cd/m²
Contrast ratio

800
Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)
Response time

30 ms
Backlight

LED
Touch Type

Projective capacitive multi-touch up to 10 points
Touch Light Transmission

85%

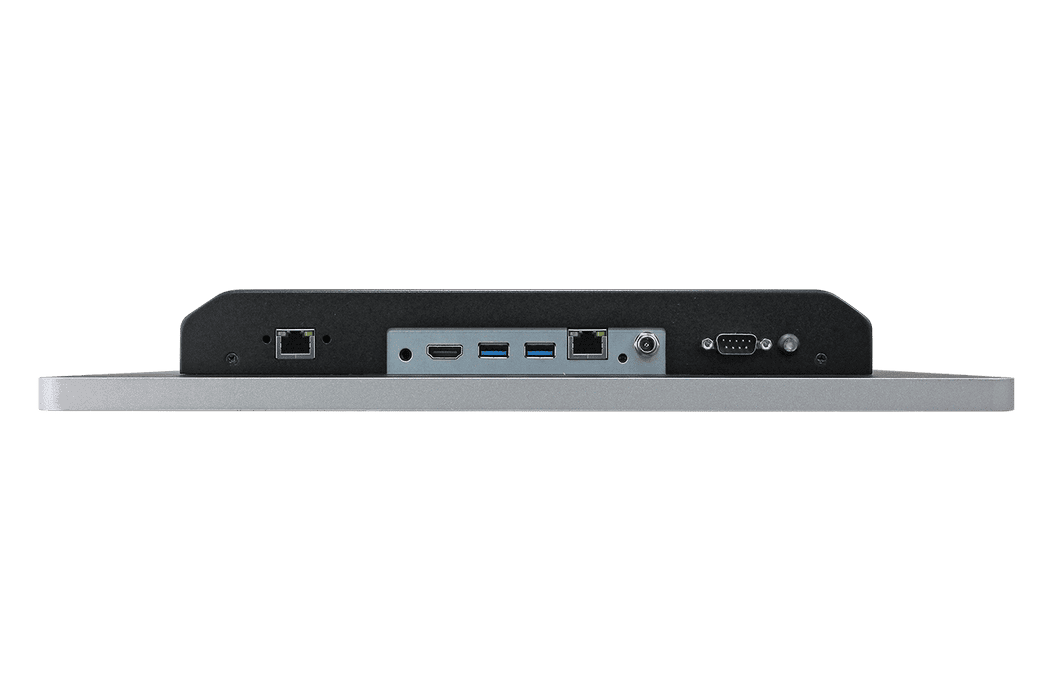

External I/O

USB Port

2 x USB 3.0
Audio Port

1 x Headphone Jack
LAN Port

1 x RJ45

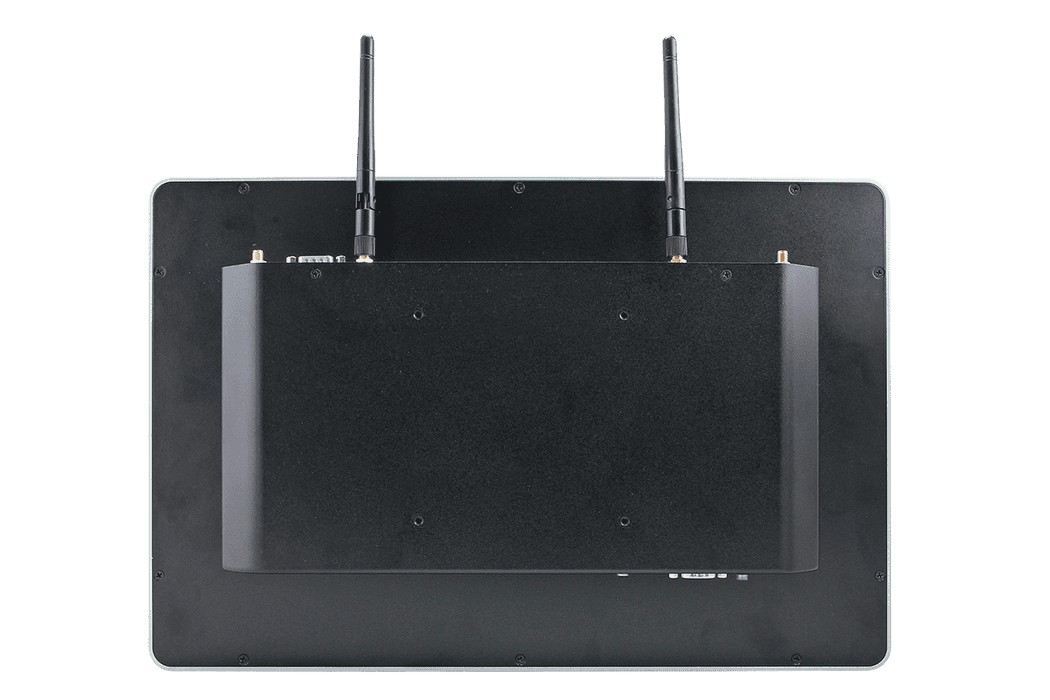

Wireless LAN Antenna

2 x Wi-Fi Antenna
COM Port

1 x RS232 DB9
1 x RS485 DB9
HDMI

1 x HDMI 1.4b
Switch

1 x Power Button
1 x Reset Button
DC input

1 x DC Jack
LED indicator

1 x Power LED

Internal I/O

Expansion

1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module)
SIM Slot

1 x Micro SIM Slot

Wireless Communication

WLAN

Wi-Fi 802.11ac/a/b/g/n

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)

388.8 x 258.8 x 49.6mm
Weight

4.5 kg
IP Rating

Front panel IP65
VESA

100 x 100
Power Requirement

DC +12 ~ +24V
System Fan

Fanless
Construction - Front

Aluminum extrusion with cover lens
Construction - Rear

Metal sheet

Ordering Information

Ordering Information

SID-15W04-3410-A1R : 15.6" SID J3455 4G 32G Ubuntu 20.04
SID-15W04-3411-A1R : 15.6" SID J3455 4G 32G 2019 WIN10
