Processor

Rockchip RK3568J

System Memory

Onboard 4GB LPDDR4

Storage

Onboard 64GB eMMC

Spec. & Resolution

1280 x 800

DC Input

DC 12 ~ 24V

Power Type

AT

OS

Android 13 , Debian 11

Certification Information

CE, FCC CLASS A

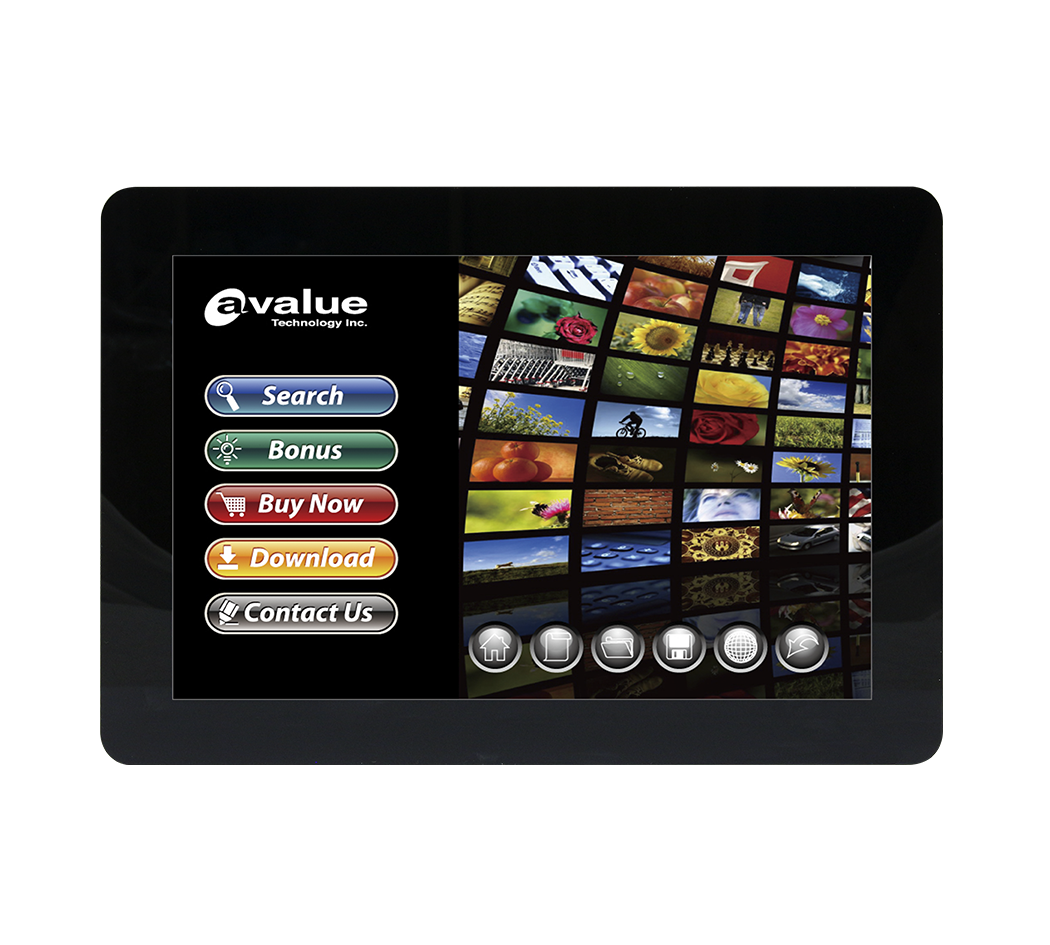

LCD Size

10.1’’

Resolution

1280 x 800

Luminance

500 cd/m2

Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)

Touch Type

PCAP

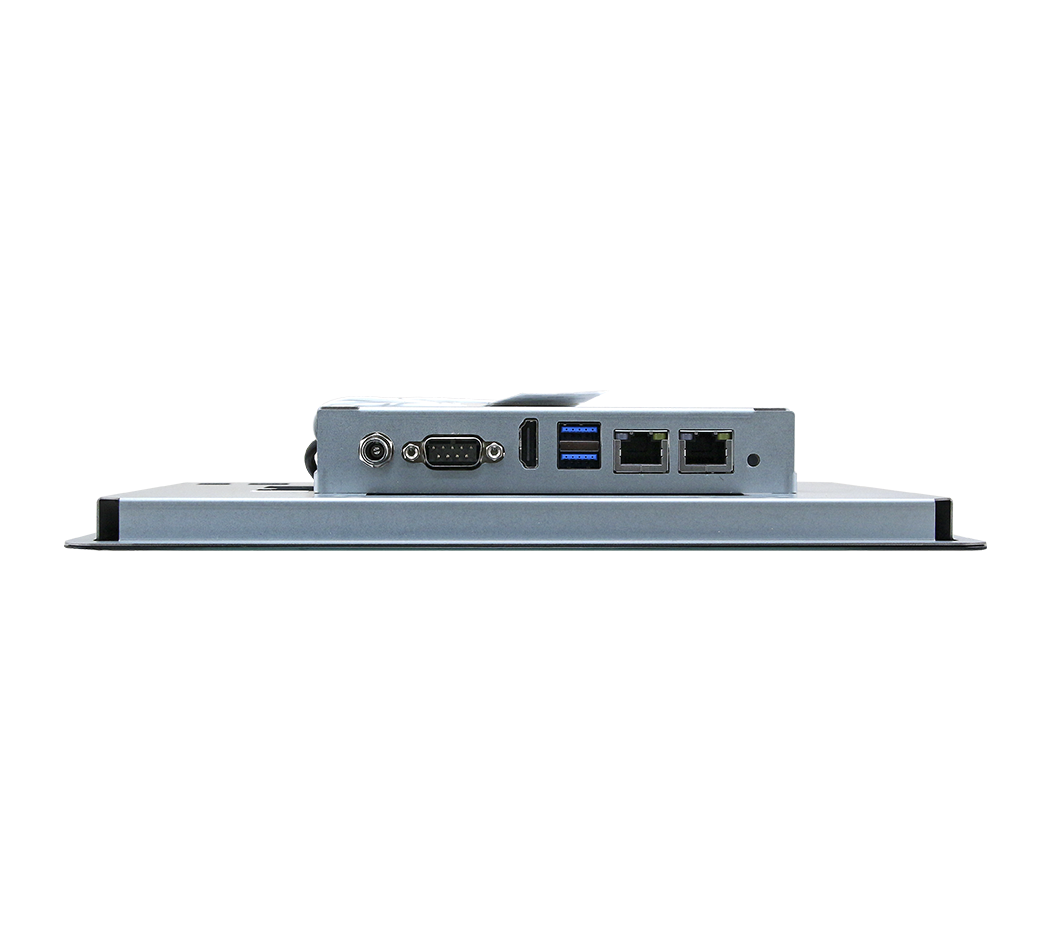

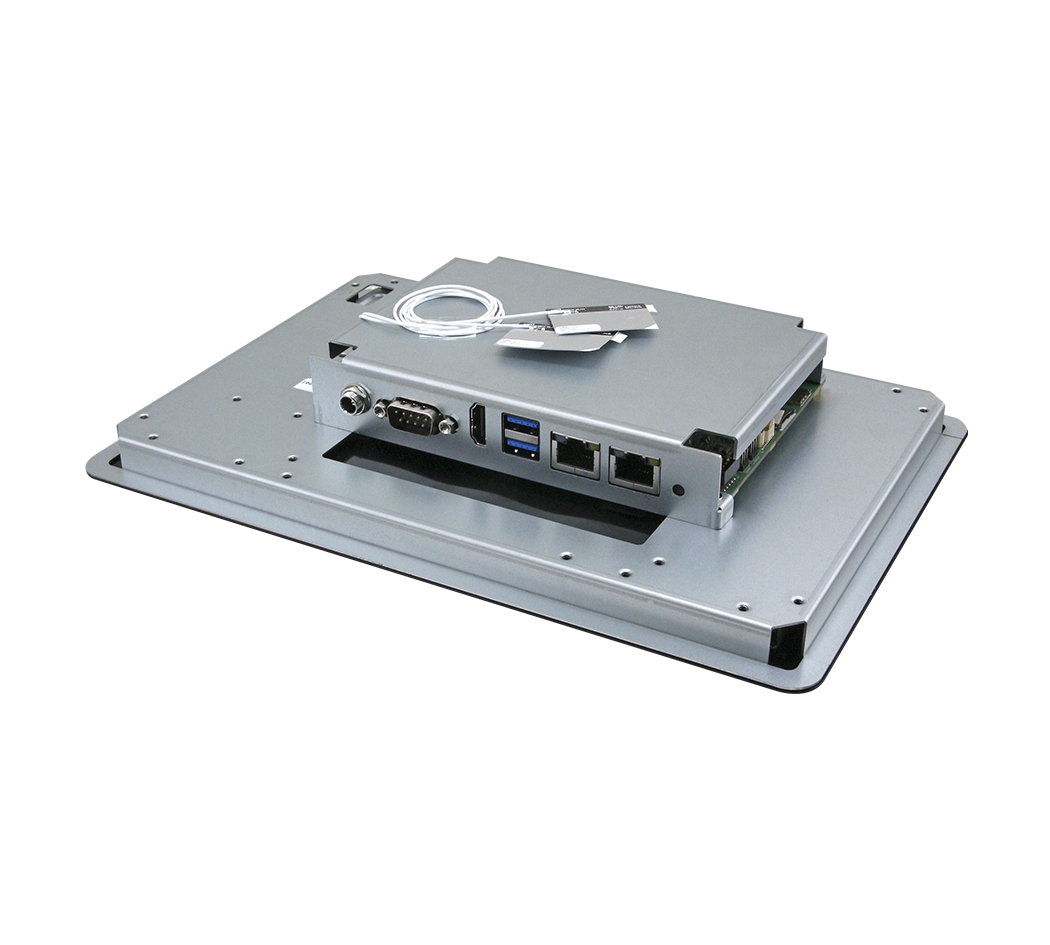

External I/O Connector

2 x 10/100/1000 RJ45 LAN
1 x DC Jack
1 x HDMI 2.0 Out
1 x Reset
1 x RS-232/422/485 DB9
2 x USB 3.0 Type A

Internal I/O Connector

1 x Backlight
2 x CAN
1 x DC Input
1 x eDP, 1 x GPIO
1 x I2C, 1 x LVDS
1 x M.2 2230 E-Key
1 x M.2 3042 B-Key
1 x MIPI DSI
2 x RS-232
1 x RS-485
1 x RTC Battery
1 x SIM Card Slot
1 x Speaker
1 x Touch Button
2 x USB 2.0

WLAN

802.11 a/b/g/n/ac (2230)

Operating Temp.

-30°C ~ 60°C (-22°F ~ 140°F)

Storage Temp.

-30°C ~ 60°C (-22°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity,
Non-condensing

Dimension (W x L x H)

TBD

Power Requirement

DC 12~24V

Power Mode

AT

Ordering Information

OFT-10WR3
