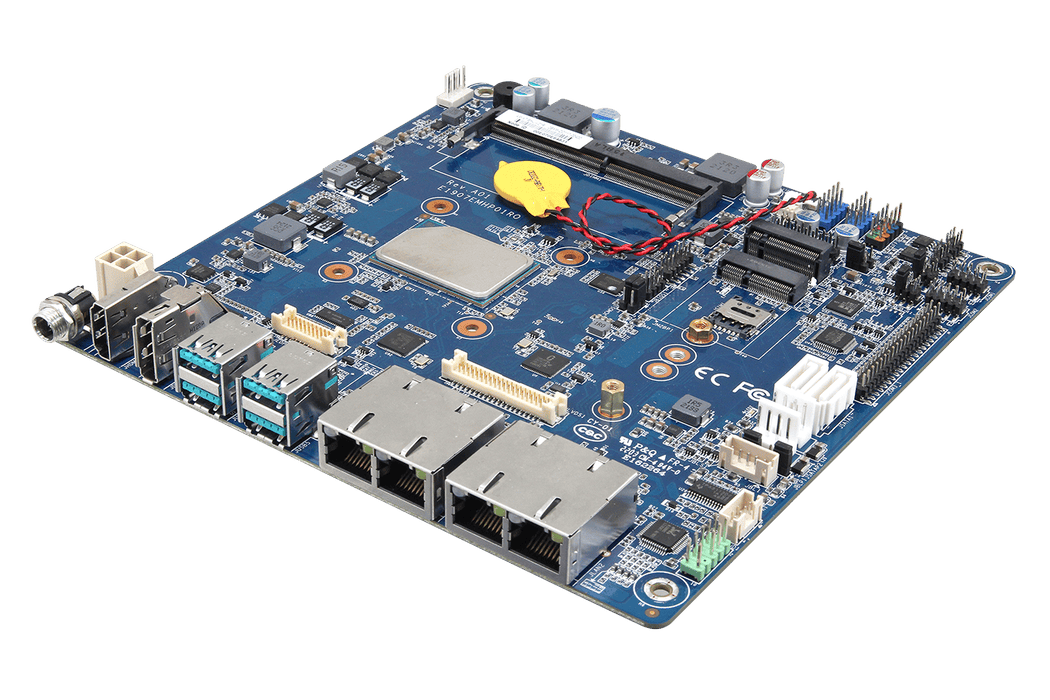

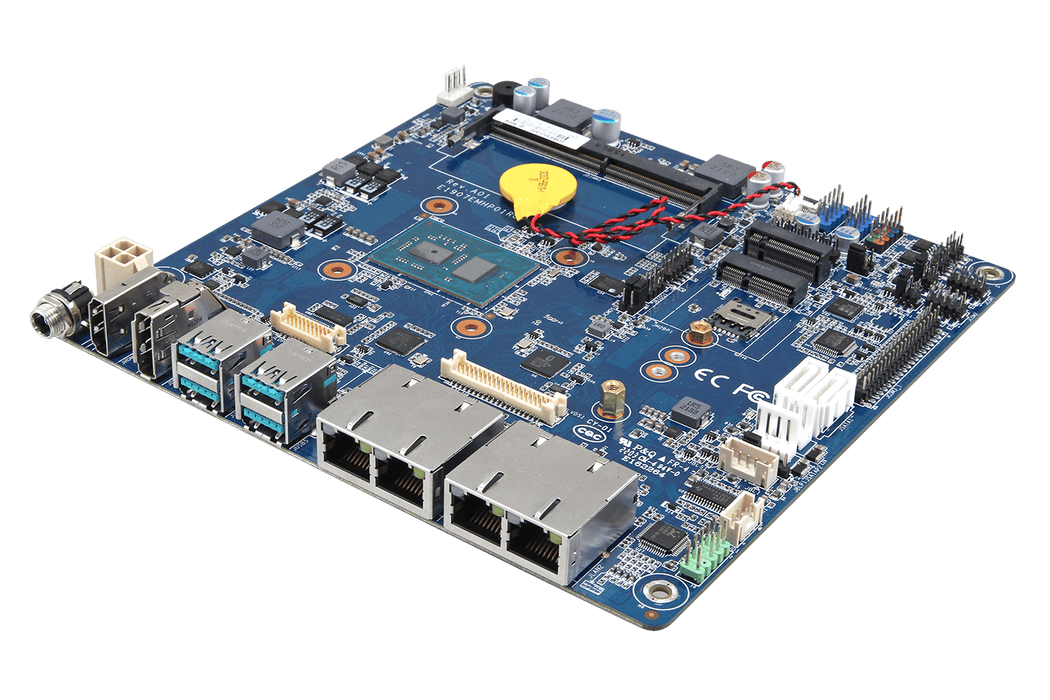

Processor

Intel® Atom® x6000E and Celeron® Processor

System Memory

1 x 260-Pin DDR4 3200MHz SO-DIMM SSocket Supports Up to 32GB (Only Atom® x6000E Series Processors Support IBECC)

I/O Chipset

EC iTE IT5571

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

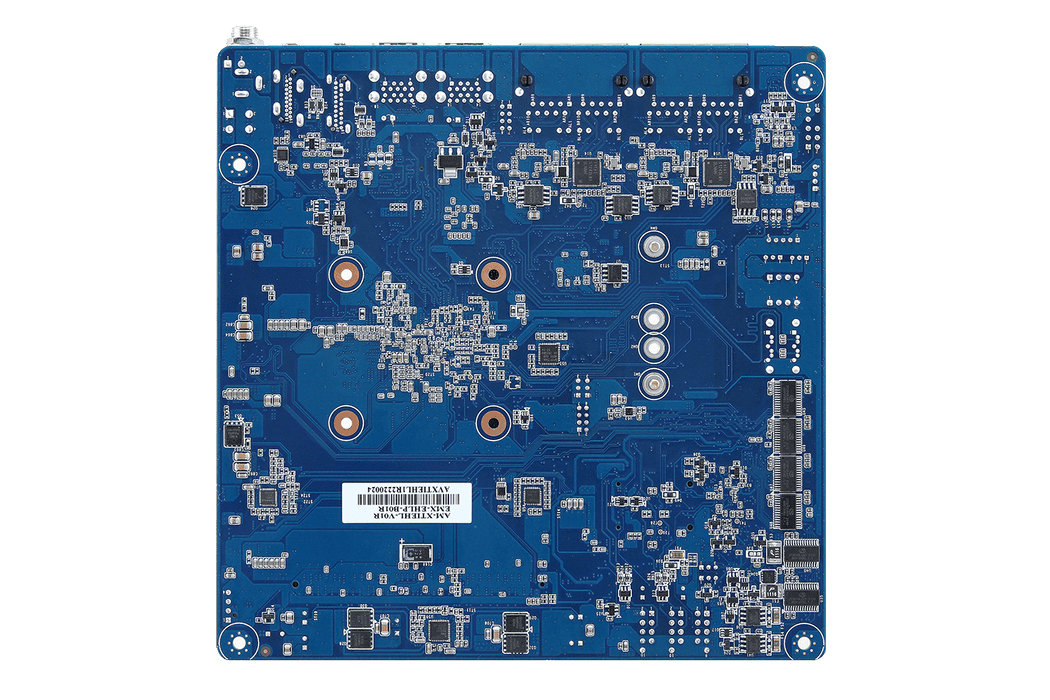

Board

Thin Mini ITX

Expansion

1 x M.2 Type B Slot for 3042/3052/2242/2260/2280 Size with SATAIII + USB 3.1 GEN2, USB 2.0, SIM Slot for SSD/LTE/IO Cards Support WWAN+GNSS and SSD
*3042/2242 Bridge Bracket to 3052
*SATA 2 Share with M.2 key B SATA
* Only Supports One SIM Card
* Does not support I2S and PCM Functions
1 x M.2 Key E 2230 Support WiFi Module (1 x PCIe x1 & USB 2.0 Signal)
* Does not Support PCM/I2S and UART Functions

Graphic Chipset

Intel® UHD Graphics for 10th Gen Intel® Processors

Spec. & Resolution

1 x DP++: 4096 x 2160@60 Hz (DP: 4096 x 2160@60Hz)
1 x HDMI 2.0b: 4096 x 2160@60 Hz
LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B-BFI eDP to LVDS)
1 x eDP 4096 x 2160@60Hz
LVDS and eDP Via Switch IC, Either One Display is Functional.

Multiple Display

Triple Display

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP By BOM Option

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

TI TPA3113D2 Stereo Class-D 6W

LAN Chipset

4 x Intel® i226LM/IT(Default: i226LM/IT);
(i226IT for Wide temp version) 2.5 Gigabit Ethernet
(BOM optional for 1 x 2 RJ45 Thin Mini ITX Cost version design SKU)

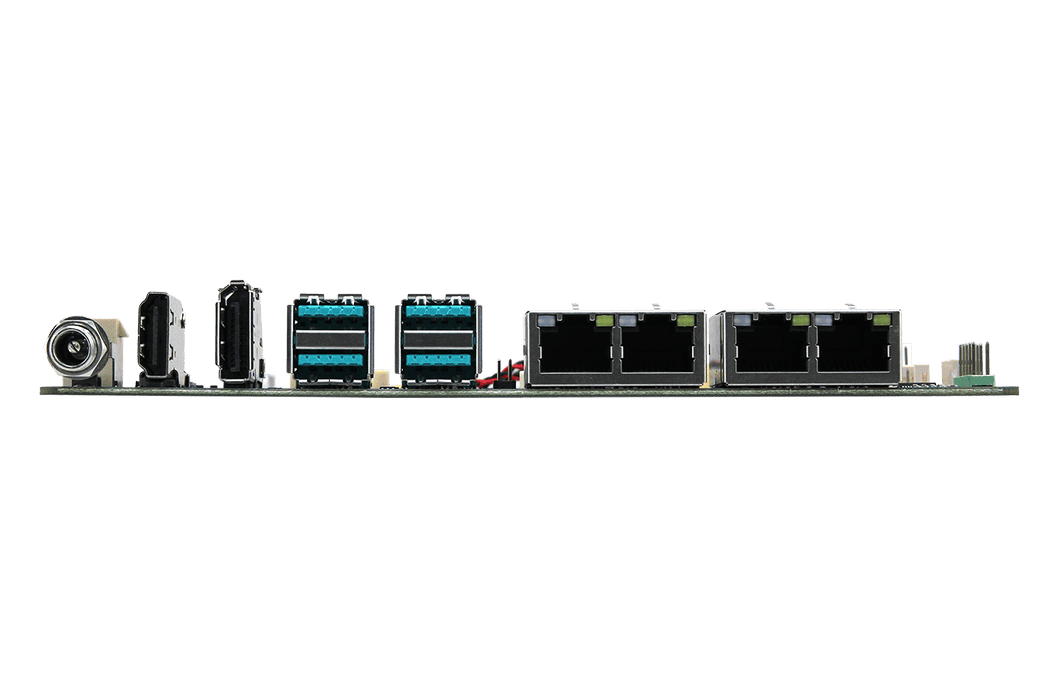

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet

LAN Port

4 x RJ-45

OS

Windows 10, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
4 x USB 2.0

COM Port

4 x RS232
2 x RS-232/RS422/485

SATA

2 x SATA III
2 x SATA Power

DIO

1 x 16-bit GPIO

Operating Temp.

0 ~ 60°C (32 ~ 140 °F) Intel® Pentium®/Celeron®N/J Series CPU SKU
-20~60°C (-8~140°F) Intel® Atom®x6000 Series CPU SKU
w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-EHLP-J6412-A1R (J6412, 4LAN, i226LM, Standard Temp.)
EMX-EHLP-J6413-A1R (J6413, 4LAN, i226LM, Standard Temp.)
EMX-EHLP-X13E-A1R (x6413E, 4LAN, i226IT, Wide Temp.)
EMX-EHLP-X25RE-A1R (x6425RE, 4LAN, i226IT, Wide Temp.)
EMX-EHLP-J12-A1-1R (J6412, 2LAN, i226V, Standard Temp.)
Intel® Celeron®/Atom™ SoC BGA Processor Thin Mini ITX SBC Motherboard
