Processor

Intel® N97 and Atom® x7000RE series processors

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.

I/O Chipset

EC IC: IT5782 or Equivalent
Fintek_F81435N or Equivalent for COM port

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

TPM

Support fTPM

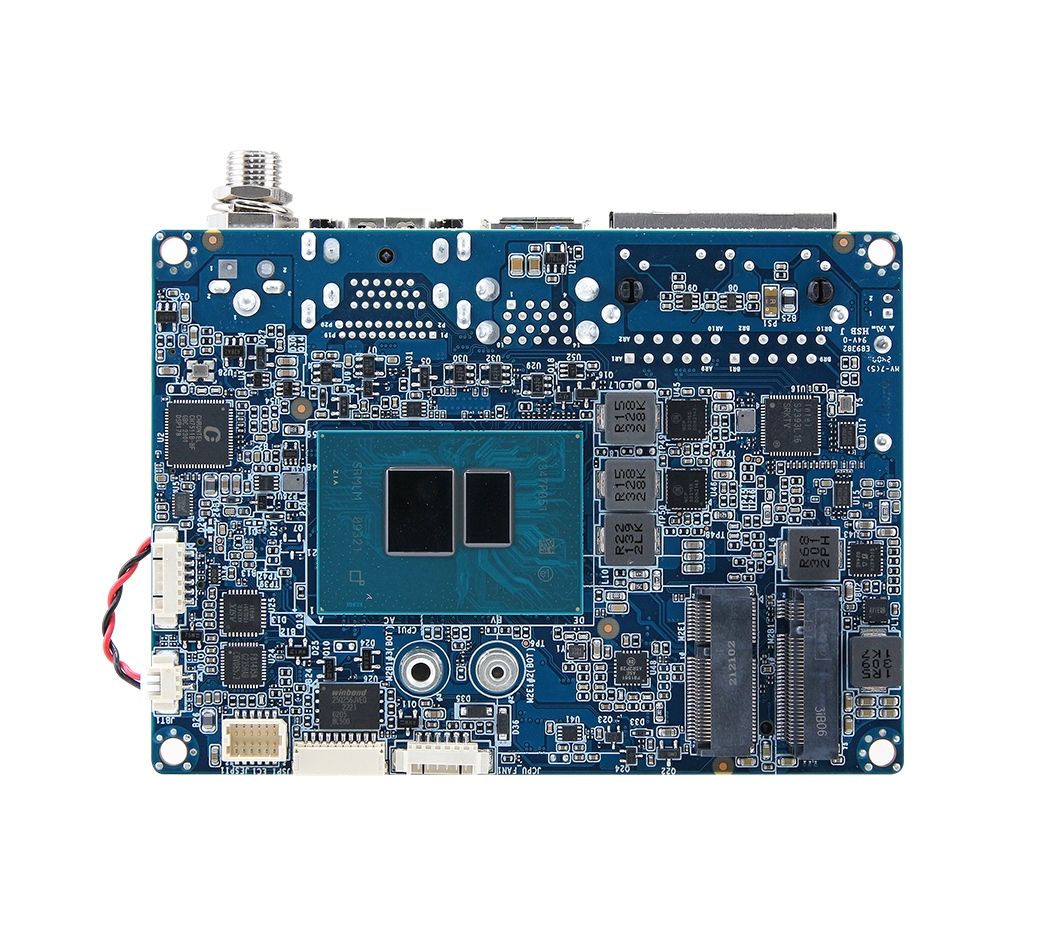

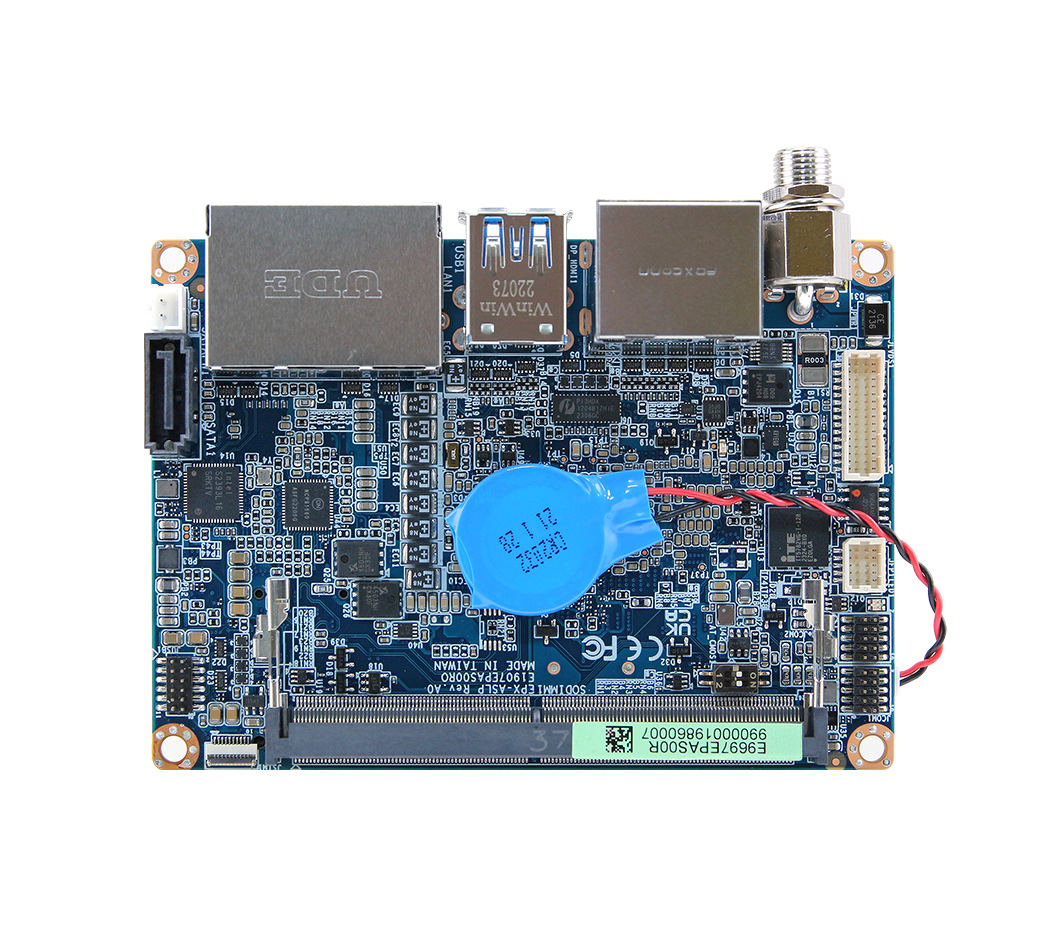

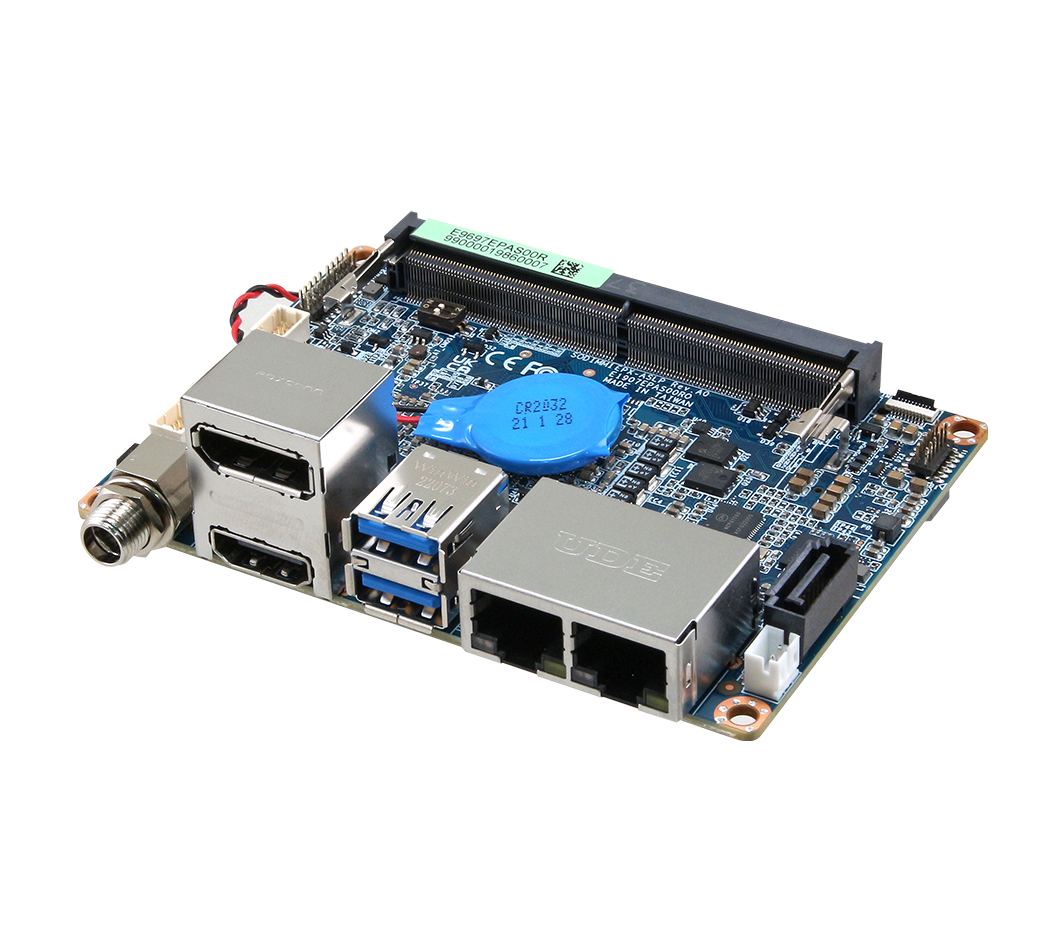

Board

PICO ITX

Expansion

1 x M.2 Type B 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards)
*Default is Default: SATA)
*1 x 10Pin FPC connector for Micro SIM card adapter
*Micro SIM card to SIM card adapter by optional
1 x M.2 Type E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal.

Storage

1 x M.2 (Type B)
1 x SATA III

Graphic Chipset

Intel® UHD Graphics

Spec. & Resolution

HDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1366 x 768 Single channel 18/24-bits

Multiple Display

Triple Display

LVDS

1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS Converter

LAN Chipset

2 x Intel® i226V (i226IT for wide temp version) 2.5 Gigabit Ethernet

Ethernet Interface

2.5 Gigabit Ethernet

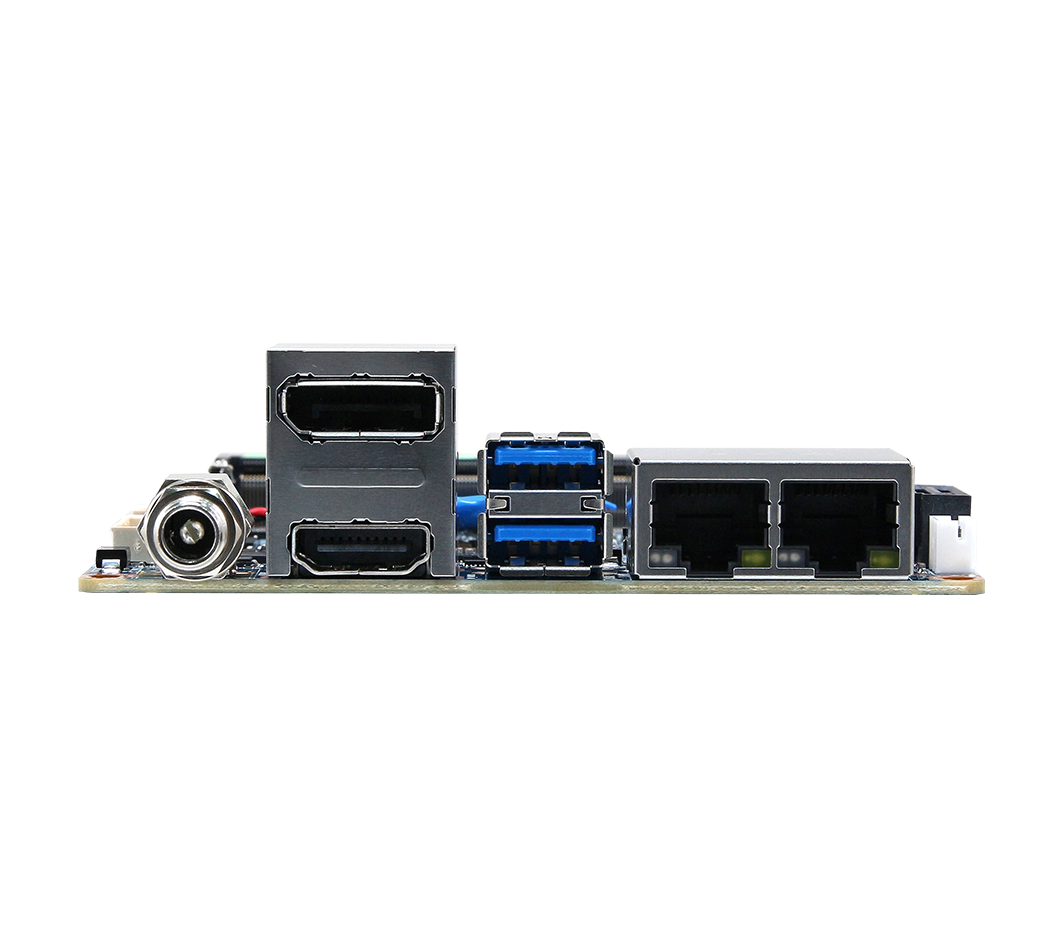

LAN Port

2 x RJ45

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB 3.2 Gen2 at IO
4 x USB 2.0 by pin header

COM Port

1 x RS-232
1 x RS-232/422/485

SATA

1 x SATA III

DIO

1 x 4-bit GPIO

Operating Temp.

Standard Temperature: 0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow
Extend Temperature: -40°C ~ 80°C (-40°F ~ 176°F) with 0.5m/s Air Flow for Wide Temp CPU SKU

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.66lbs (0.3Kgs)

Power Requirement

DC in +12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

3.94" x 2.83" (100mm x 72mm)

Ordering Information

Intel® Processor N-series & Atom® Processor X Series BGA Processor 2.5 Pico ITX SBC Motherboard
EPX-ASLP-N97-A1R
EPX-ASLP/N97/2COM/6USB/2LAN/A1

EPX-ASLP-7433-A1R
EPX-ASLP/x7433RE/2COM/6USB/2LAN/A1
