Prepare to use console to debug SMA-X8I.

Document NO.

2023103001
Category

Software OS
Update Date

2023-10-30

Export PDF

Model Name

SMA-X8I

Purpose

Using console mode to debug SMA-X8I in Linux OS without GUI(Graphical User Interface).

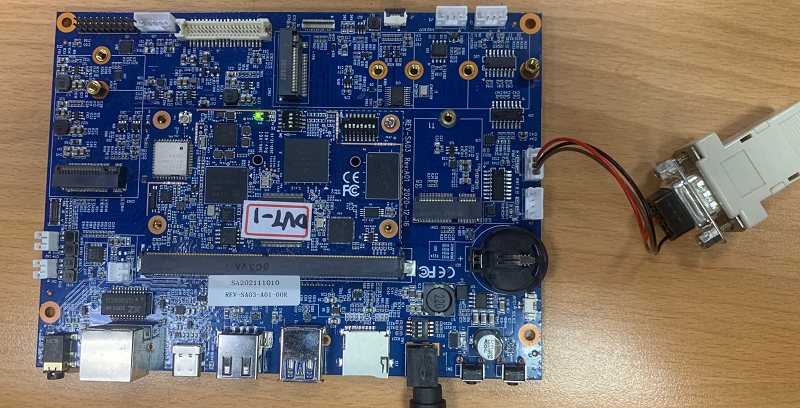

1. Connect debug cable to SMA-X8I

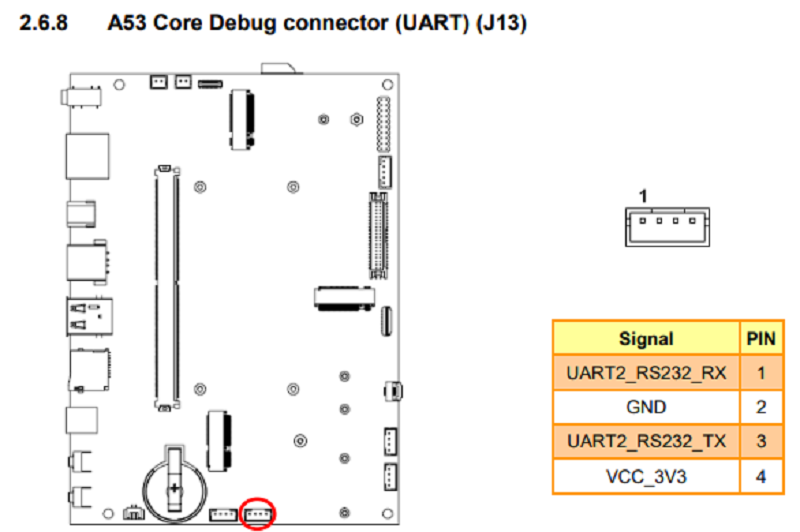

Connect the debug cable to J13.

2. Connect the USB cable

Connect the Local Manager to a Windows 10 computer using the appropriate cable.

3. Locate the correct COM port

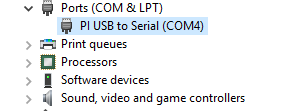

Right click on the Windows Start Icon and select "Device Manager."

Open the "Ports (COM & LPT)" Section.

Locate the "PI USB to Serial" and note which COM port it is using.

4. Open a console session

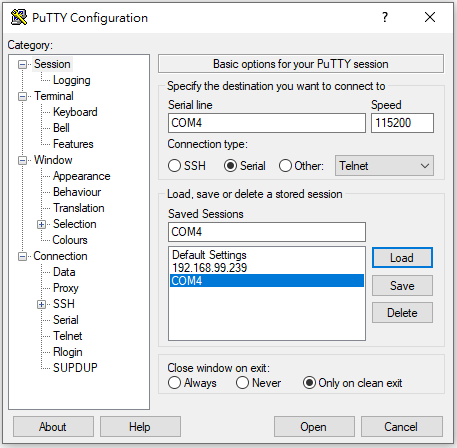

Using PuTTY or other terminal emulator, select "Serial" as the connection type and change the "Serial line" to match the COM port noted earlier. The serial console speed is typically 115200.

Power on SMA-X8I and boot to Linux OS.(note: the login password is root.)
