Intel VROC PCH SATA RAID

Document NO.

2023103112
Category

Software BIOS
Update Date

2023-11-01
Rev.

A1

Export PDF

Model Name

HPM-SRSUA HPS-SRSU4A HPS-SRSUTA

Purpose

Enable intel VROC PCH SATA RAID on Sapphire Rapids Platform

The Intel® Virtual RAID on CPU (Intel® VROC) is an enterprise RAID solution for both NVMe SSD and SATA devices for the enterprise servers, workstations and some high-end desktops.

Intel VROC interface Types:
1. Intel VROC NVMe RAID
2. Intel VROC PCH SATA RAID *
3. Intel VROC PCH NVMe RAID

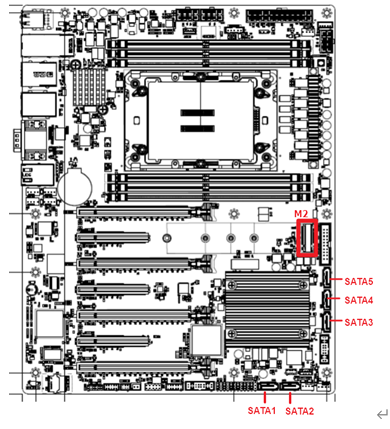

Location of SATA Ports on HPM-SRSUA

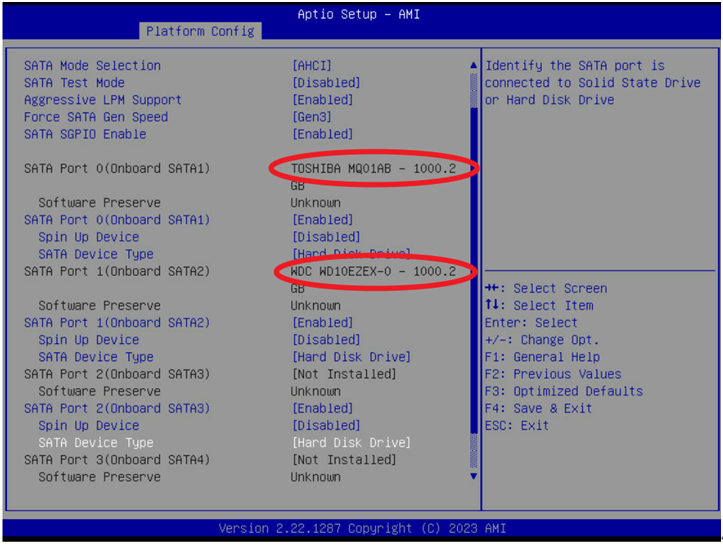

1. Check if SATA SSDs are detected.

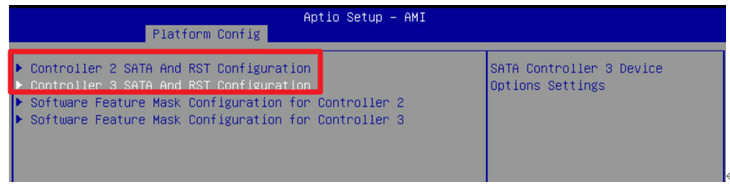

BIOS Platform Config PCH-IO Configuration  SATA And RST Configuration

There are 2 PCH SATA controllers, please ensure which SATA ports you used.
Controller 2 for SATA5 and M.2 Key.M SATA
Controller 3 for SATA1, SATA2, SATA3 and SATA4

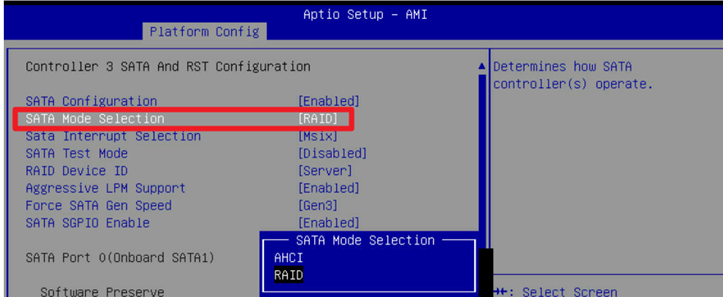

2. Configure SATA mode to RAID.

Press “F4” to save and exit.

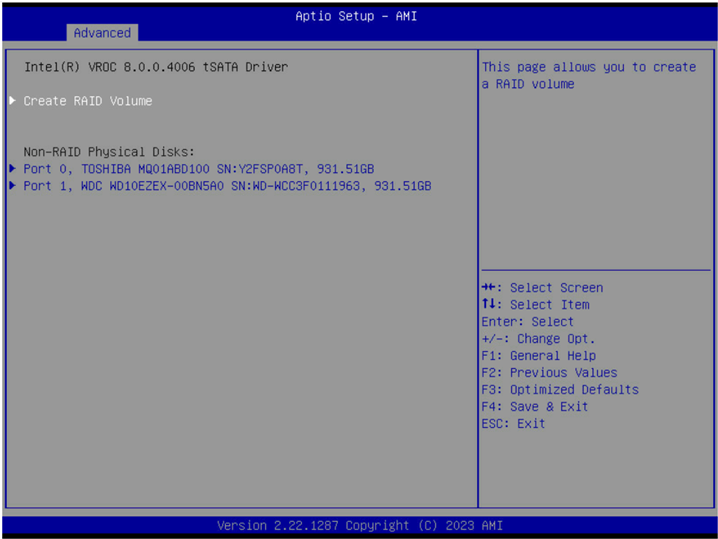

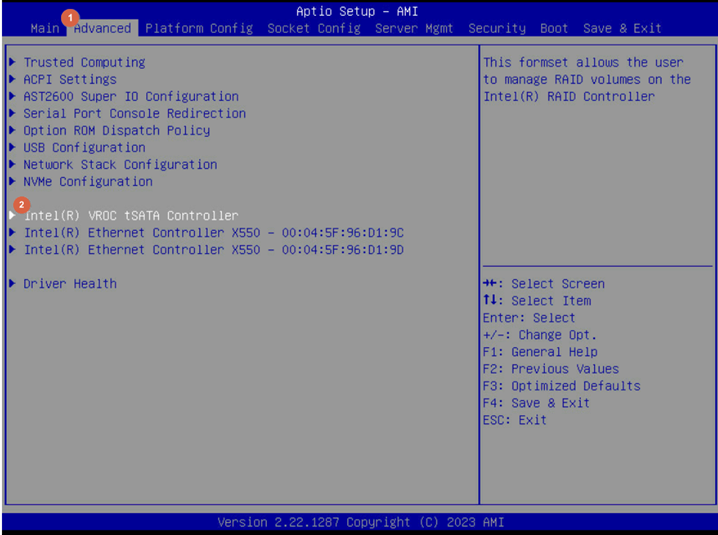

3. Reboot to BIOS Setup and go to VROC SATA Controller

Configuration RAID to what you want.

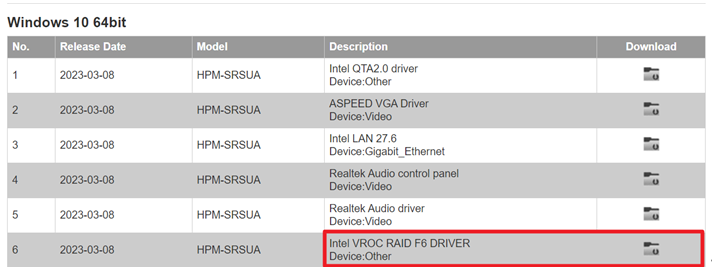

4. Download intel RAID driver from avalue web site. Un-zip and put in USB drive.

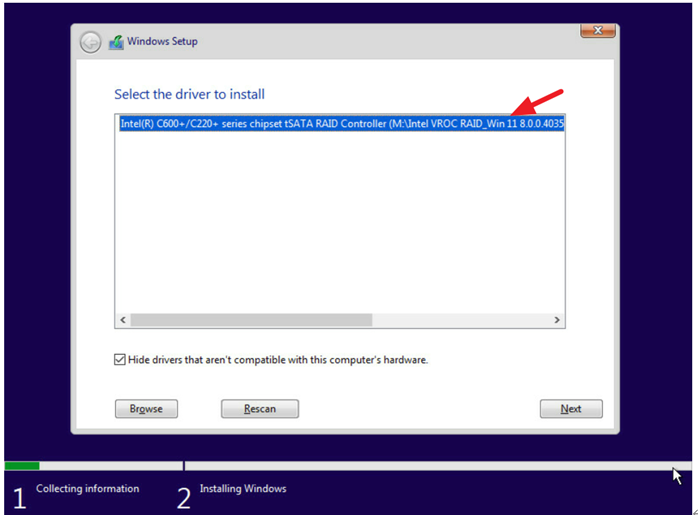

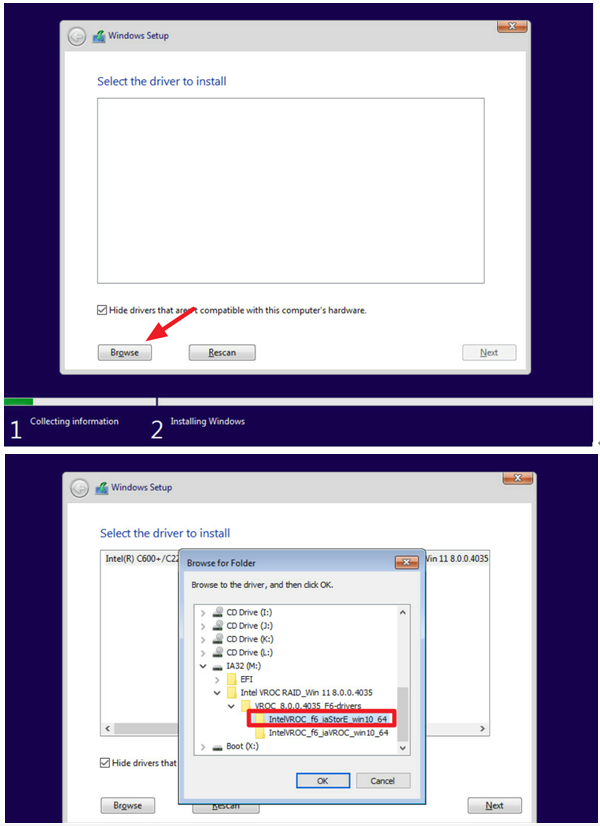

5. Load driver from your USB when you install Windows

You can install windows to your RAID now.
