OFT-15W04

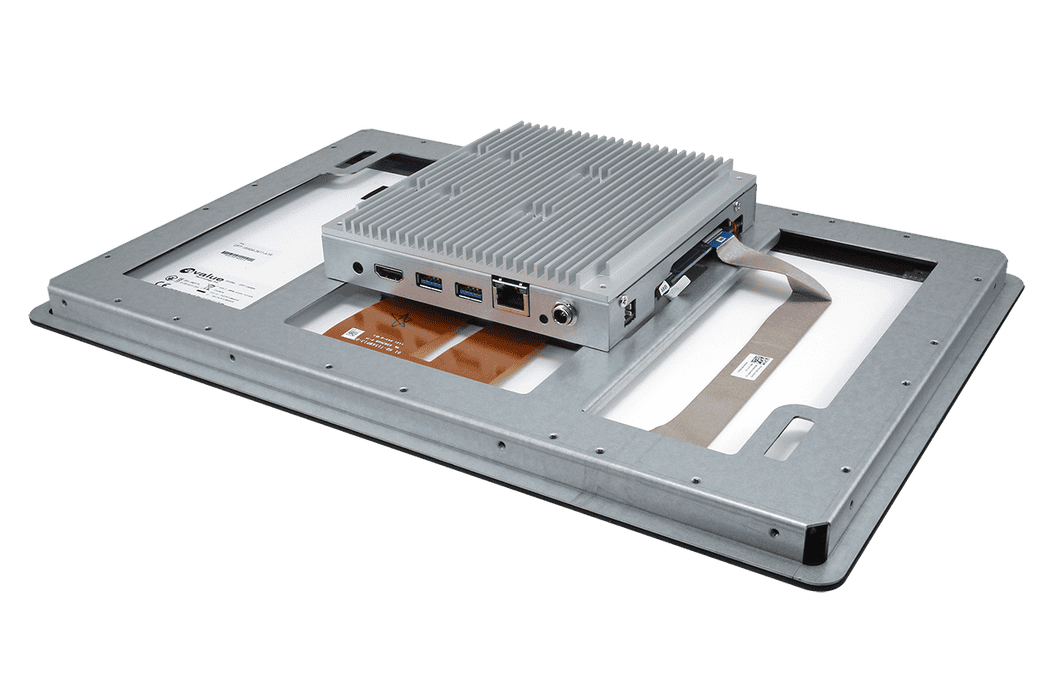

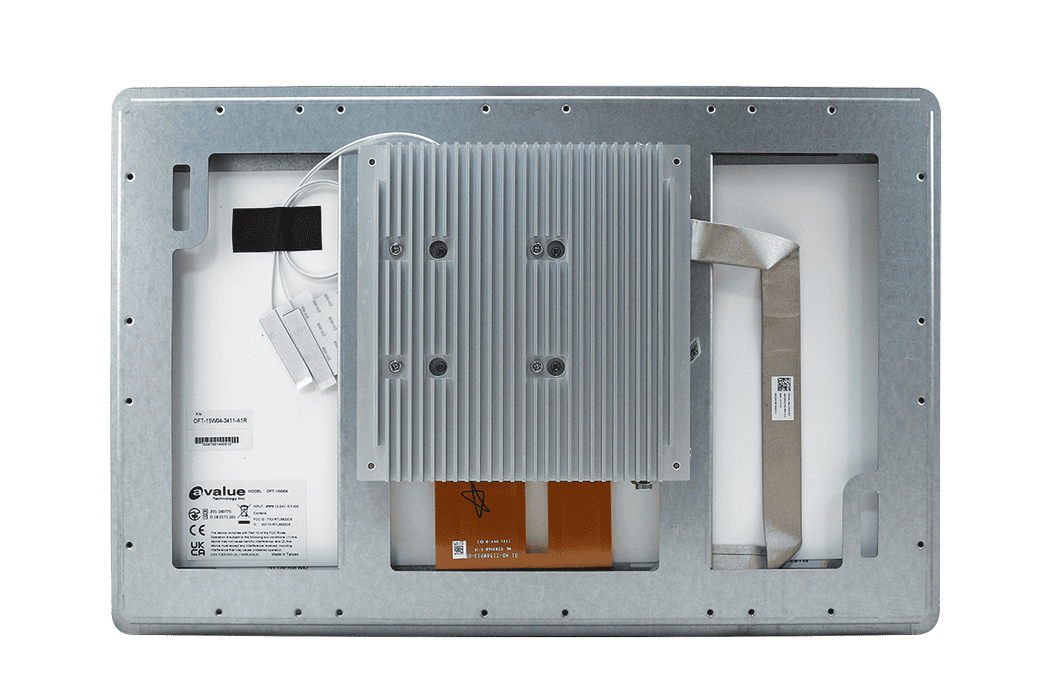

15.6" Open Frame Tablet with Intel® Celeron® Processor J3455

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

1 x 204 pin SO-DIMM DDR3L 4GB
1 x 204 pin SO-DIMM DDR3L 4GB
32GB eMMC / M.2 3042 SSD
0°C ~ 40°C
CE, FCC Class A

Specification
Document
FAQ

ProductSpecification

System Information

Processor

Intel® Celeron® Processor J3455
System Memory

1 x 204 pin SO-DIMM DDR3L 4GB (8GB for BOM Option)

Storage

Storage

32GB eMMC
Other Storage Device

1 x Micro SD Slot

Display

Graphic Chipset

Intel® HD Graphics 500

Ethernet

LAN Chipset

1 x Realtek RTL8211FI-CG
Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V

Software Support

OS

Windows 10 / Ubuntu 20.04

Certification

Certification Information

CE, FCC Class A

Panel

LCD Size

15.6"
LCD Panel

TFT LCD
Resolution

1920 x 1080
Pixel pitch

0.17925 x 0.17925 mm
Luminance

220 cd/m²
Contrast ratio

800
Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)
Response time

30 ms
Backlight

LED
Touch Type

Projective capacitive multi-touch up to 10 points
Touch Light Transmission

85%

External I/O

USB Port

2 x USB 3.0
Audio Port

1 x Headphone Jack
LAN Port

1 x RJ45
HDMI

1 x HDMI 1.4b
Switch

1 x Power Button
1 x Reset Button
DC input

1 x DC Jack
LED indicator

1 x Power LED

Internal I/O

USB

1 x Micro USB
COM Port

1 x RS232 (Tx/Rx/Rts/Cts)
1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts)
GPIO

16-bit GPIO
Expansion

1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module)
SIM Slot

1 x Micro SIM Slot
Other

1 x DC in
1 x A-MIC
1 x I2S
1 x Speaker
1 x Touch key Button
Camera

1 x USB Camera & DMIC

Wireless Communication

WLAN

Optional Wi-Fi 802.11ac/a/b/g/n
Bluetooth

Optional BT 5.0

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

40°C @ 95% Relative humidity, Non-condensing
Dimension (W x L x H)

384 x 254 x 47.5mm
Weight

2.2 kg
Power Requirement

DC 12~24V

Ordering Information

Ordering Information

OFT-15W04-3410-A1R : OFT-15W04-4G_32G-Ubuntu 20.04
OFT-15W04-3411-A1R : OFT-15W04-4G_32G-Win10
OFT-15W04-3412-A1R : OFT-15W04-4G_32G-Non OS

Chipset

1
Audio

1
Graphics

1
LAN

1
Manual

1
Other Driver

6

Chipset

Total 1 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2023-11-01

chipset-10.1.17861.8101-public-mup

Windows 10 64bit

Audio

Total 1 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2023-11-01

8943_FF00_PG475_Win10_RS3_RS4_RS5_19H1_20H1_Win7_Win8_Win8.1_WHQL

Windows 10 64bit

Graphics

Total 1 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2023-11-01

igfx_win10_100.8935

Windows 10 64bit

LAN

Total 1 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2023-11-01

Install_Win10_10038_02202020(SId1152921504628325429)

Windows 10 64bit

Manual

Total 1 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2024-08-05

OFT-15W04 4th Quick Reference Guide

Other Driver

Total 6 Files

No.

Release Date

Title、Description

Operating System

Document

Download

2023-11-01

Intel(R)_HIDEventFilterDriver-2.2.1.375_RS5Certified

2023-11-01

apollo lake-i intel(r) txe 3.1.75.2351_ipu_2020.1-lite

Windows 10 64bit

2023-11-01

serialio_30.100.1631.03_apl_pv_rs1-lite

Windows 10 64bit

2023-11-01

DIO TCA955

Windows 10 64bit

2023-11-01

RTBlueR_Windows10_FilterDriver_1015_0307.2019_new_L

Windows 10 64bit

2023-11-01

RTLWlanE_WindowsDriver_2024.0.8.105_Drv_3.00.0031_Win10.L

Windows 10 64bit

OPEN ALL FILES
