Avalue Technology - Industrial Computer

Processor

Intel® Processor N50, 6M Cache, up to 3.4 GHz

System Memory

8GB LPDDR5

CPU Cooler (Type)

Heatsink

Storage

64GB eMMC

LAN Chipset

Realtek RTL8111I-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

OS

Windows 10/11, ubuntu 24.04

Certification Information

CE, FCC Class A

LCD Size

7"

Resolution

1280 x 800
1024 x 600

Luminance

350 cd/m2

Viewing angle

87.5 (U), 87.5 (D), 87.5 (L), 87.5 (R)

Touch Type

Projective capacitive multi-touch up to 10 points

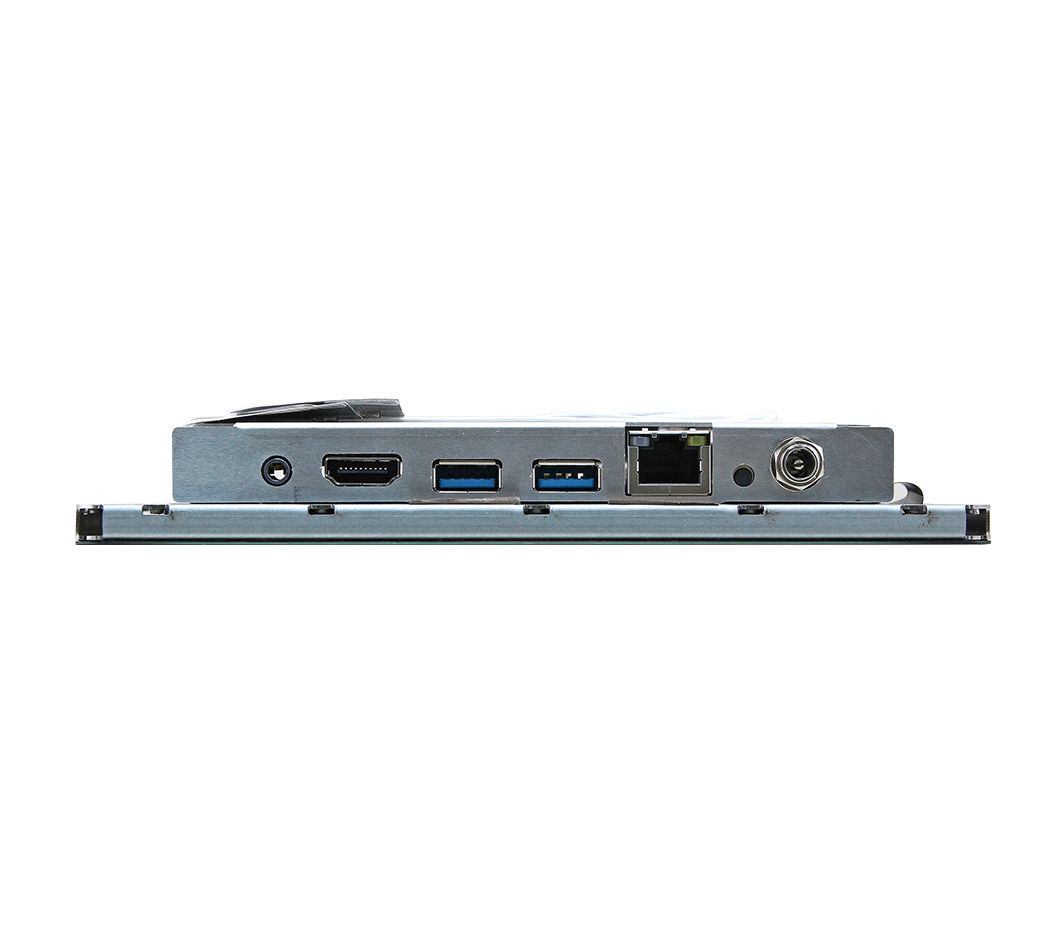

External I/O Connector

1 x H/W power button

USB Port

2 x USB 3.0

Audio Port

1 x Audio Jack TRS

LAN Port

1 x RJ45​

HDMI

1 x HDMI 2.0 Out

DC input

1 x DC Jack

Internal I/O Connector

1 x A-MIC
2 x GPIO
1 x I2C
1 x M.2 2230 E-Key
1 x Micro SD Slot
1 x MIPI DSI
1 x RS-232/RS-485
1 x RTC Battery
1 x Speaker
2 x Touch Button
1 x USB 2.0
2 x USB 2.0 + DMIC

WLAN

Wi-Fi 802.11ac/a/b/g/n

Input Voltage Range

DC +12 ~ +24V

Power Type

AT

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity,
Non-condensing

Dimension (W x L x H)

183.1 x 115.85 x 27.3 mm

Weight

0.55kg

Ordering Information

TBD
