ARC-1538-B

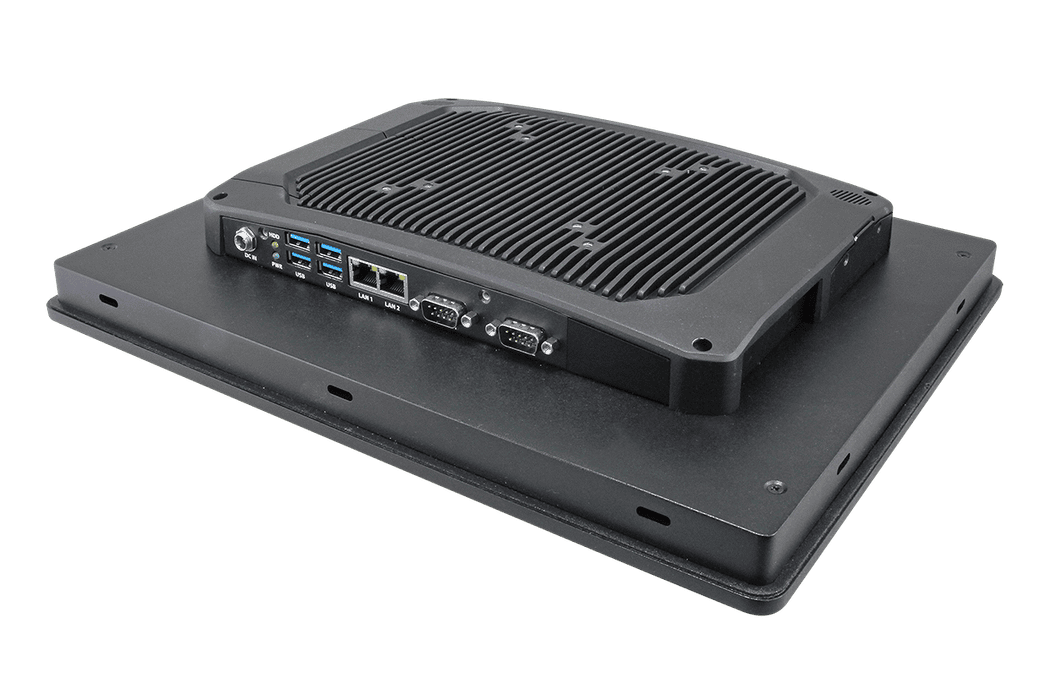

15" 11th Generation Intel® Core™ i3/i5/i7 Processors Fanless Rugged Touch Panel PC with IET Expansion
- 11th Generation Intel® Core™ i3/i5/i7 Processors
- Full flat front panel with projected capacitive touch supports multi touch
- One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
- 4 x USB3.2, 2 x COM
- Dual Intel Gigabit LAN
- 2 x M.2 slots (Key-B 2242/3042/3052, Key-E 2230)
- Support Wi-Fi / BT / 4G / 5G (by option)
- Wide voltage +12V ~ +24V input, ErP power
- Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
- IP65 compliant front panel, IP41 rear box
- With panel mount kits included
- TPM 2.0 function
- Fanless operation from -10°C ~ 50°C (14°F ~ 122°F)
ProductSpecification
System Information
-
Processor
11th Generation Intel® Core™ i3/i5/i7 Processors
Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz
Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz
Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz -
System Memory
1 x 260-pin DDR4 3200MHz SO-DIMM up to 32 GB
-
I/O Chipset
EC ITE IT8528E
-
Watchdog Timer
H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step
-
H/W Status Monitor
Monitoring CPU & system temperature and voltage
-
TPM
Onboard NuvoTon NPCT754AABYX support TPM 2.0
-
SBC
ARC-TGL
-
CPU Cooler (Type)
Fanless heatsink
-
Other
7 x Knockouts for antenna mounting
*5 from rear cover + 2 from IET bracket
Expansion
-
Expansion
1 x M.2 Key-B 2242/3042/3052 with SIM card slot
Support SATA3 / PCIe & USB for LTE(4/5G) / NVMe(BOM option for PCIex 2)
1 x M.2 Key-E 2230
Support PCIe/USB/CNVi Wi-Fi/BT module
1 x 80-pin IET interface
Storage
-
Storage
1 x 2.5 Drive bay (7mm HDD restricted)
Display
-
Graphic Chipset
Intel® Tiger Lake UP3 SoC integrated graphics
supports optional dual display -
Spec. & Resolution
HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)
Audio
-
Audio Codec
Realtek ALC888S
-
Speaker Output
2 x 2W
Ethernet
-
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I225LM 2.5 Gigabit Ethernet -
Ethernet Interface
Intel® I219LM : 10/100/1000 Base-Tx GbE compatible
Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V ~ +24V
-
DC Input Connector
Lockable DC Jack (default)
Optional for phoenix connector -
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
-
OS
Win10 / Win11 / Linux
Certification
-
Certification Information
CE / FCC Class B / VCCI
Panel
-
LCD Size
15", 4:3
-
Display Type
XGA
-
Resolution
1024 x 768
-
Pixel pitch
0.297mm(H) x 0.297mm(V)
-
Luminance
300 cd/m2
-
Contrast ratio
2000
-
Viewing angle
88 (U), 88 (D), 88 (L), 88 (R)
-
Response time
16 ms
-
Backlight
LED
-
Touch Type
Projective capacitive multi-touch up to 10 points
-
Touch Light Transmission
89%
-
Touch Controller
USB touch (ILITEK ILI2511，COF)
External I/O
-
USB Port
4 x USB 3.0
-
LAN Port
2 x RJ-45
-
COM Port
1 x RS-232/422/485
1 x RS-232
Internal I/O
-
SATA
1 x SATA III
System Control
-
LED Indicator
HDD LED, power LED
Mechanical & Environmental
-
Operating Temp.
-10°C ~ 50°C (14°F ~ 122°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
40°C @ 95% Relative humidity, non-condensing
-
Dimension (W x L x H)
350.51 x 274.51 x 56.5mm
-
Weight
3.7 Kg
-
Vibration Test
With SSD/M.2 SSD : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis
-
Shock Test
Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=20G
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
-
IP Rating
Front panel IP65
Back cover IP41 -
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits -
Power Mode
AT/ATX (ATX is default)
-
System Fan
Fanless
-
Construction - Front
Die casting with cover lens
-
Construction - Rear
Black die casting
Component
-
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter
Ordering Information
-
Ordering Information
ARC-1538-57E-B1-1R
15 1024x768 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC888S)
11th Gen Intel Core i5-1145G7E 1.50 GHz CPU/2GLAN/2COM/4USB/SPK/12~24V input/19V Adapter
Optional IET Module list:
ACC-ARC-USB-01R
4 x USB 3.0 IET module for ARC-1535/38
ACC-ARC-AUDIO-01R
HDMI + 5.1 CH audio IET module for ARC-1535/38
ACC-ARC-MPCIE-02R
HDMI + MPCIE w/SIM IET module for ARC-1535/38
ACC-ARC-COM-01R
2 x Isolated RS-232 IET module for ARC-1535/38
ACC-ARC-COM-02R
3 x RS-232 IET module for ARC-1535/38
ACC-ARC-COM-03R
2 x RS-232 + USB IET module for ARC-1535/38
ACC-ARC-COM-04R
2 x RS-232 + LAN IET module for ARC-1535/38
ACC-ARC-GPIO-01R
12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/38
ACC-ARC-OBDII-01R
OBDII - CAN bus IET module for ARC-1535/38 (OBDII/EOBD for small vehicle)
ACC-ARC-OBDII-02R
OBDII - CAN bus IET module for ARC-1535/38 (J1939J1708 for large vehicle)
ACC-ARC-OBDII-03R
OBDII - CAN bus IET module for ARC-1535/38 (ISO15765-4 for special large vehicle)
E1702031835R
USA Power Cord
E170203183DR
EU Power Cord
E170203183BR
Japan Power Cord
E170P060370R
UK Power Cord
E170P060392R
Australia Power Cord
BIOS
Total 2 Files
Chipset
Total 1 Files
Audio
Total 1 Files
Graphics
Total 1 Files
LAN
Total 1 Files
Design Document
Total 1 Files
Manual
Total 1 Files
