COMING SOON

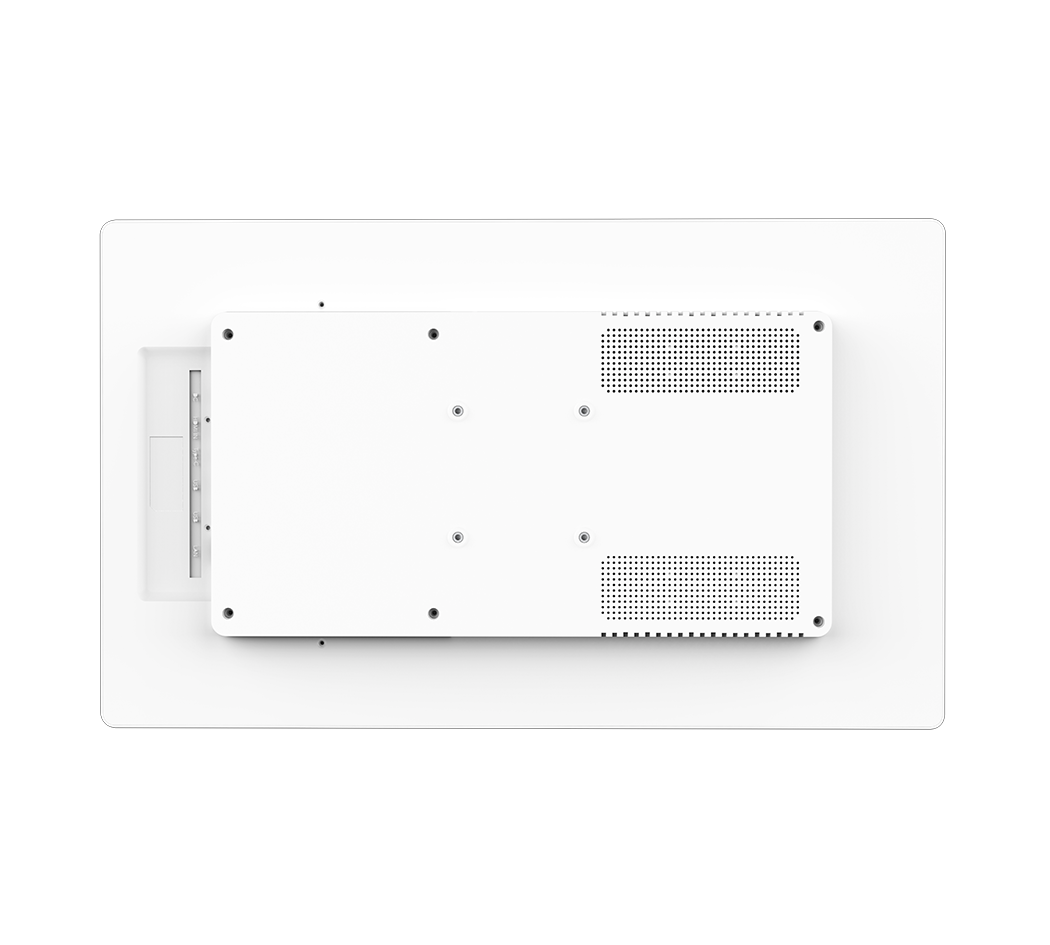

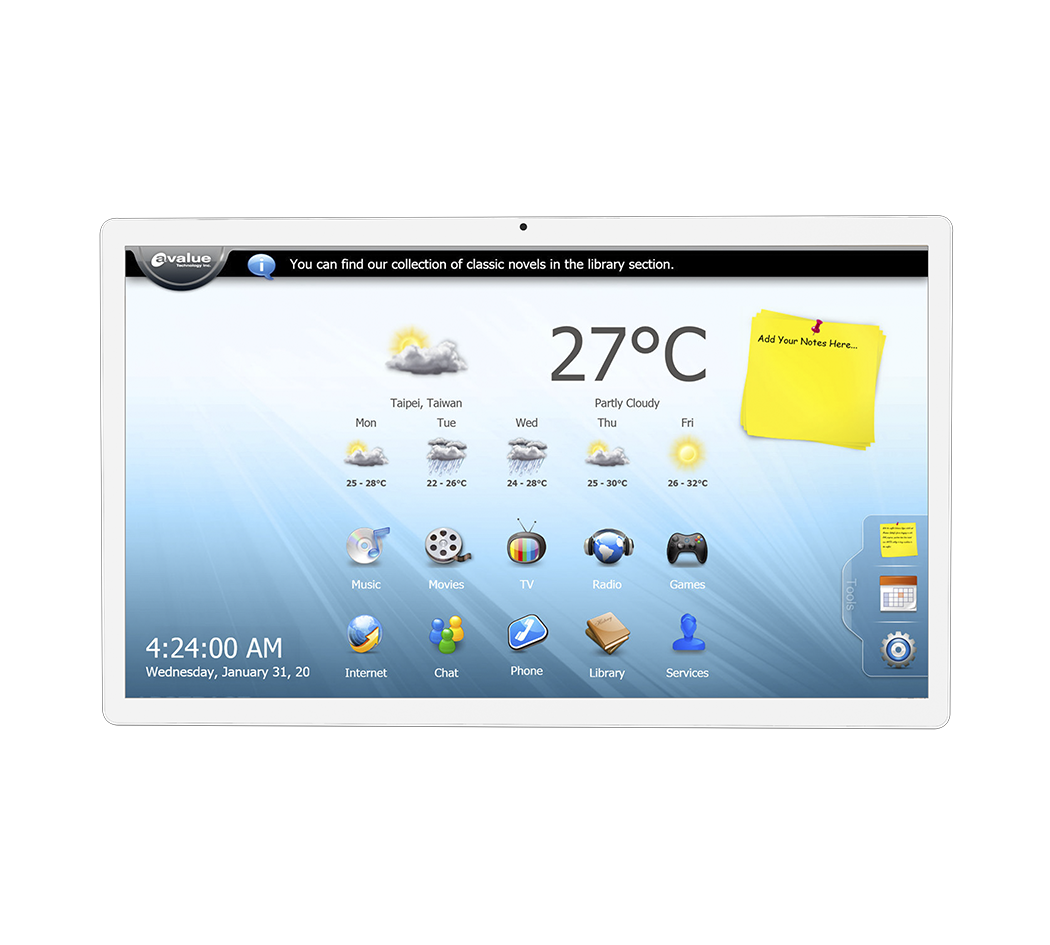

APC-21WR6
21.5" Ultra Slim Panel PC with Rockchip RK3576
- 21.5" 1920 x 1080 Slim Panel PC with PCAP touch
- Rockchip RK3576 Quad core cortex A53+Quad core cortex A72
- 4GB LPDDR4 / 32GB eMMC
- Ture color LED indicating light bar
- Fanless operation from 0°C ~ 40°C
- DC 12V and support Powered LAN (802.3bt)
- Support Android 14
ProductSpecification
System Information
-
Processor
Rockchip RK3576 Quad core cortex A53+Quad core cortex A72
-
System Memory
4GB LPDDR4
Storage
-
Storage
32GB eMMC
Display
-
Graphic Chipset
Mali-G52 MC3 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.2, OpenCL 2.1
Audio
-
Speaker Output
2 x 3W
Ethernet
-
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V
-
DC Input Connector
DC Jack
-
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 36W (12V@3A) AC-DC adapter
Software Support
-
OS
Android 14
Panel
-
LCD Size
21.5"
-
LCD Panel
IPS
-
Resolution
1920 x 1080
-
Luminance
250 cd/m2
-
Contrast ratio
3000
-
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
-
Response time
7ms
-
Backlight
ELED
-
Touch Type
Projective capacitive multi-touch up to 10 points
External I/O
-
USB Port
1 x USB 3.0
1 x USB 2.0
1 x USB Type C -
LAN Port
1 x RJ45
-
HDMI
1 x HDMI-in
-
DC input
1 x DC Jack
-
Other
Power Button
Data Collection
-
NFC
Suppout 13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693,JIS X 6319-4 & MIFARE
-
Camera
1 x 5.0MP Camera
Wireless Communication
-
WLAN
Optional Wi-Fi 802.11b/g/n/a/ac/ax
-
Bluetooth
Optional BT 5.4
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
20~80%RH
-
Dimension (W x L x H)
520 x 312.5 x 27.5 mm
-
Weight
3.5KG
-
Mounting Kit
Wall mount bracket
-
VESA
100 x 200
-
Power Requirement
DC 12V/Powered LAN (802.3bt)
-
Power Mode
AT/ATX (AT is default)
-
System Fan
Fanless
-
Construction
Plastic ABS
Packing List
-
Packing List
1 x APC-21WR6
1 x AC/DC 36W Adapter 12V/3A
1 x Power Cord
1 x USB Cable (Type-A to Type-C)
1 x Wall mount bracket
5 x KA4.0*3mm Screws with Wall plug
