Processor

Intel® Core™ i5-1135G7 (up to 4.2GHz, quad-core, 8M Cache, TDP: 15W)
Intel® Core™ i3-1115G4 (up to 3.0GHz, dual-core, 6M Cache, TDP: 15W)

Platform Controller Hub

Intel® Tiger Lake SoC integrated

System Memory

2 x 260-pin DDR4 3200 MHz SO-DIMM supports up to 64GB (non ECC only)

I/O Chipset

EC iTE IT8528E

Watchdog Timer

H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0

SBC

EMX-TGLC / EMX-TGLP

Expansion

1 x M.2 type B 3042/3052/2242/2260/2280 support WWAN+GNSS or NVMe SSD
1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)

Storage

1 x 2.5 Drive bay
1 x M.2 slot

Graphic Chipset

Intel® 11th Generation CPU integrated

Spec. & Resolution

DP1+DP2 (DP1.4): Max: 7680 x 4329@60 Hz
DP3+DP4 (DP1.4): Max: 7680 x 4329@60 Hz
Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, DVT check Max: 7680 x 4329@60 Hz
Note: This resolution is actual test result. Intel resolution as below:
2 x DP++ : 1920 x 1080@60 Hz
2 x DP: 4096 x 2304@60 Hz
LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (chrontel CH7511B eDP to LVDS)
eDP 4096 x 2304@60 Hz
*2 x DP++, LVDS, eDP default (thin mini ITX), optional: DP3 and DP4 for full height
(Maximum: 6 for quadruple independent displays)

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

LAN Chipset

1 x Intel® I225IT 2.5 Gigabit Ethernet
1 x Intel® I219LM Gigabit Ethernet PHY

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V~+24V

DC Input Connector

4-pin din

OS

Win10 / Win11

Certification Information

CE, FCC Class B, VCCI

Dimension

539.6 * 342.6 * 45.2 mm

LCD Size

21.5"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

248.25um (H) x248.25um (V)

Luminance

250 cd/m2

Contrast ratio

3000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

18ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

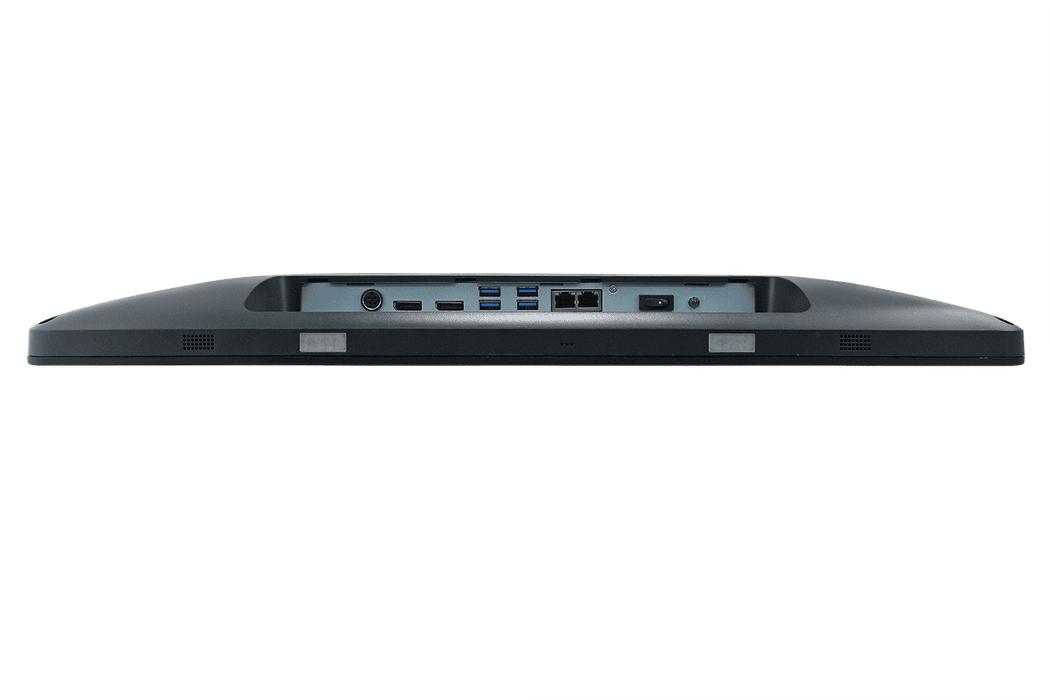

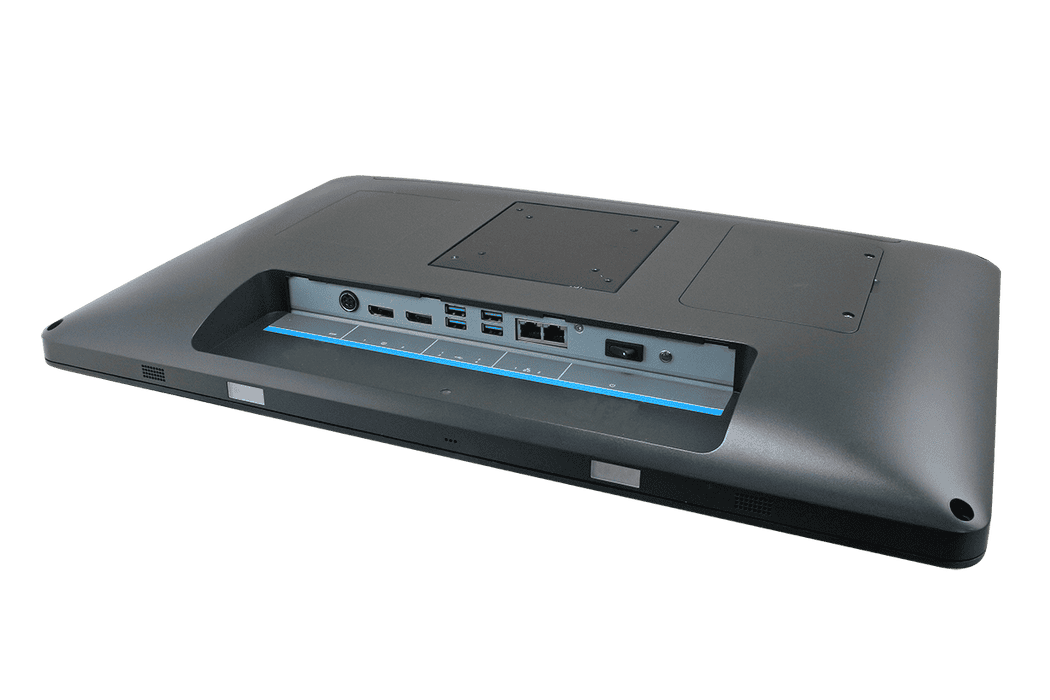

USB Port

4 x USB 3.0

LAN Port

2 x LAN

Display Port

2 x DP++

Switch

Power switch

DC input

24V DC in

LED indicator

Power LED

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% @ 90% Relative humidity, non-condensing

Dimension (W x L x H)

539.6 x 342.6 x 45.2 mm

Weight

6.3 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

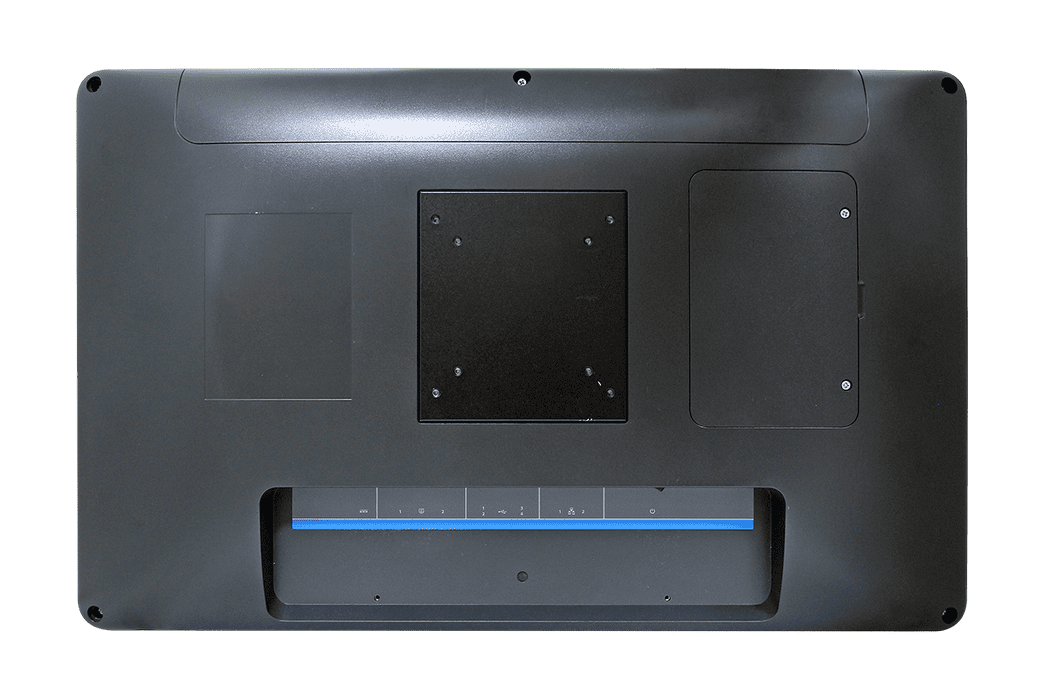

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX

System Fan

Fanless

Construction - Front

Plastic- black

Construction - Rear

Plastic- black

Adapter

Input:100 ~ 240Vac/ 50 ~ 60Hz
Output:90W adapter (24V @ 3.75A adapter) AC-DC adapter

Packing List

1 x APC-2138
1 x Power adapter

Ordering Information

APC-2138-C15-A1R
21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black)
Intel Core i3-1115G4/4GB Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter

APC-2138-C35-A1R
21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black)
Intel Core i5-1135G7/4GB Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter

APC-2138-S15-A1R
21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black)
Intel Core i3-1115G4E/4GB
Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter

APC-2138-S45-A1R
21.5 1920x1080 Projected Capacitive Touch Panel PC (Plastics, Black)
Intel Core i5-1145G7E/4GB
Memory/4USB3.0/2LAN/2DP/SPK/90W Power adapter

E971XAP2138002R
WIFI Kit for APC-2138

E971XAP2138000R
Camera Kit for APC-2138

E170203183DR
EU Power Cord

E1702031835R
US Power Cord

E17120318001R
JP Power Cord

E170P060370R
UK Power Cord
