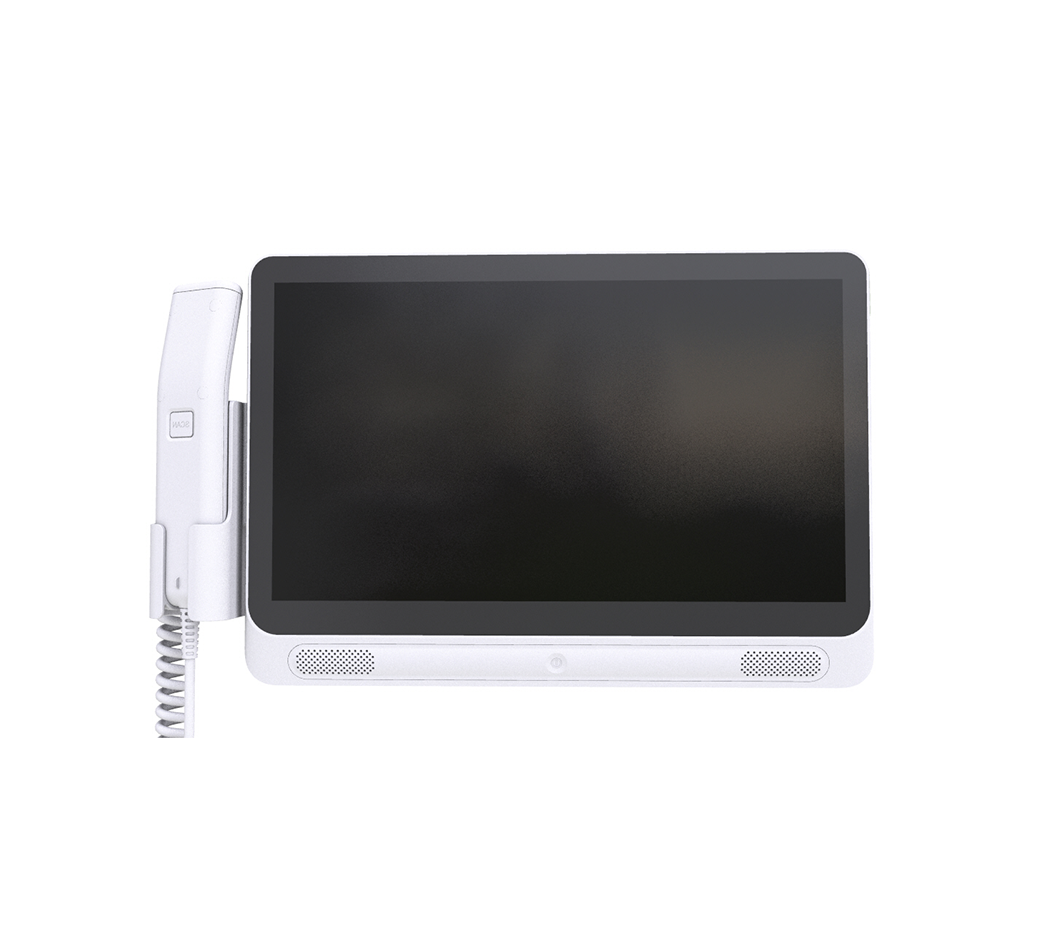

APC-15WR2
15.6" Applied Panel PC with Rockchip RK3568
- 15.6" 1920 x 1080 Applied Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 4GB LPDDR4 / 64GB eMMC
- Ture color LED indicating light bar
- Fanless operation from 0°C ~ 40°C
- Wide voltage input DC 12~24V and support Powered LAN (802.3at)
ProductSpecification
System Information
-
Processor
Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
-
System Memory
4GB LPDDR4
Storage
-
Storage
64GB eMMC
-
Other Storage Device
1 x Micro SD
Display
-
Graphic Chipset
Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0
Audio
-
Speaker Output
2 x 4Ω 2.0W/2.2W(MAX)
Ethernet
-
LAN Chipset
Realtek RTL8211F-CG
-
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V ~ +24V
-
DC Input Connector
Lockable DC Jack
Software Support
-
OS
Android 11 / Debain 11
Certification
-
Certification Information
CE, FCC Class B
Panel
-
LCD Size
15.6”
-
LCD Panel
TFT
-
Resolution
1920 x 1080
-
Pixel pitch
0.17925 (H) x 0.17925 (V) mm
-
Luminance
400 cd/m²
-
Contrast ratio
800
-
Viewing angle
85 (U), 85 (D), 85 (L), 85 (R)
-
Response time
30 ms
-
Backlight
LED
-
Touch Type
Projective capacitive multi-touch up to 10 points
-
Touch Light Transmission
>85%
External I/O
-
USB Port
2 x USB 3.0
-
LAN Port
1 x RJ45
-
COM Port
1 x RS232/485 (RJ45 Type)
-
DC input
1 x DC Jack
-
Other
1 x Power On/Off Touch key
Internal I/O
-
Expansion
1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module)
-
SIM Slot
1 x Micro SIM Slot
System Control
-
LED Indicator
2 x Ture color light bar
Data Collection
-
NFC
Support NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE and FeliCa
-
Camera
1 x 2.0MP Camera
Wireless Communication
-
WLAN
Optional Wi-Fi 802.11ac/a/b/g/n
-
Bluetooth
Optional BT 5.0
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temp.
-10°C ~ 60°C (14°F ~ 140°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Dimension (W x L x H)
385 x 266 x 34 mm
-
Weight
1.5 kg
-
IP Rating
Front panel IP65
-

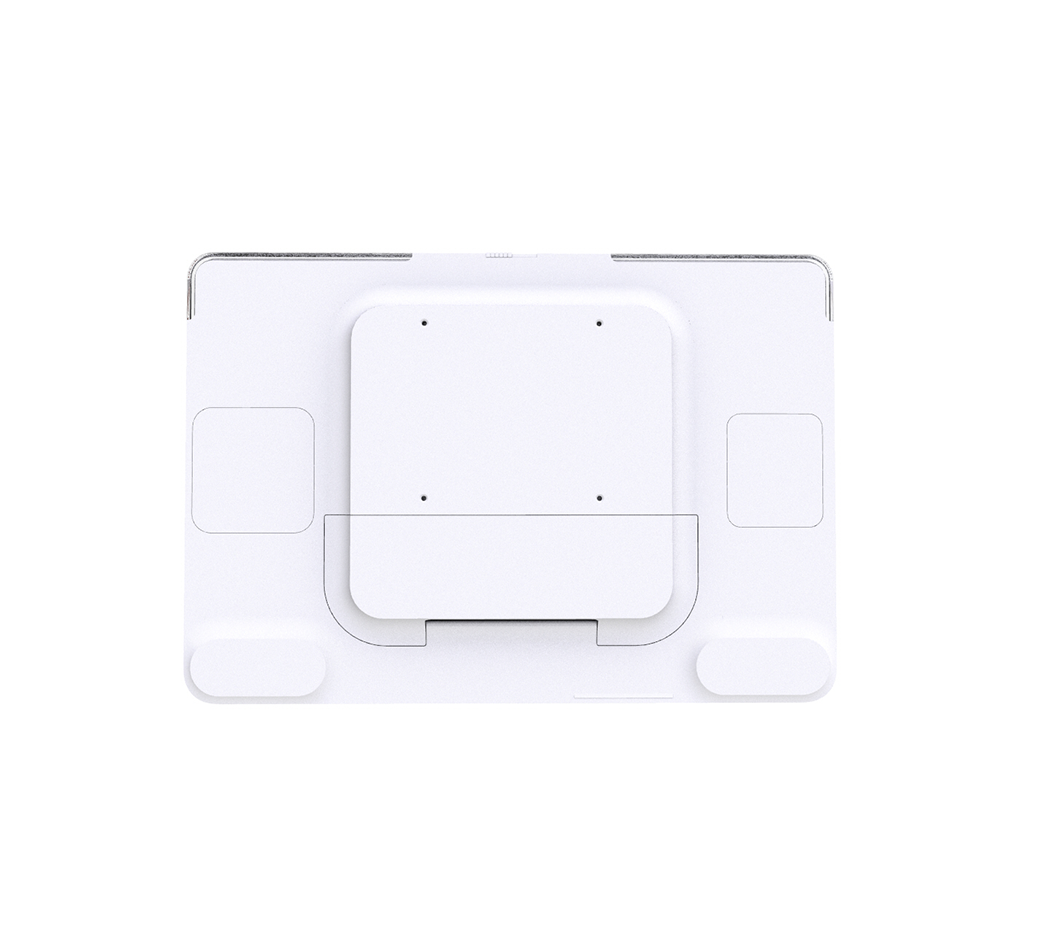

VESA
75 x 75
-
Power Requirement
DC 12~24V/Powered LAN (802.3at)
-
Power Mode
AT
-
System Fan
Fanless
-
Color
White
-
Construction
Plastic PC+ABS
Component
-
Adapter
Optional
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
Ordering Information
-
Ordering Information
APC-15WR2-CW49-1R:APC-15WR2-4G/64G-Andriod 11
APC-15WR2-CW49-2R:APC-15WR2-4G/64G-Andriod 11 w/Adapter
APC-15WR2-CW49H-1R:APC-15WR2-4G/64G-Andriod 11 w/Handset
APC-15WR2-CW49H-2R:APC-15WR2-4G/64G-Andriod 11 w/Handset & Adapter
