RPC-06NB

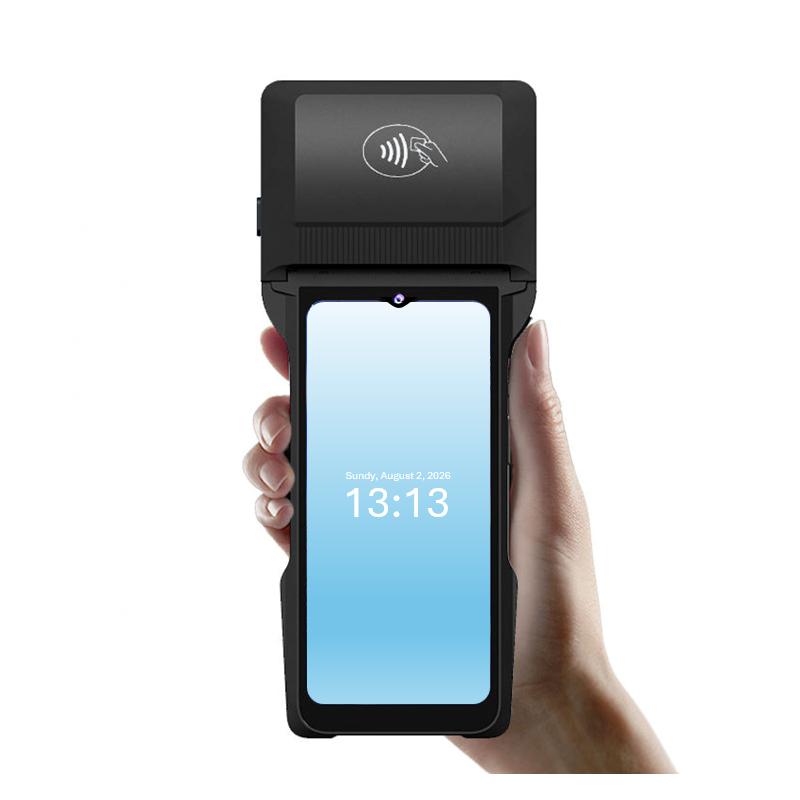

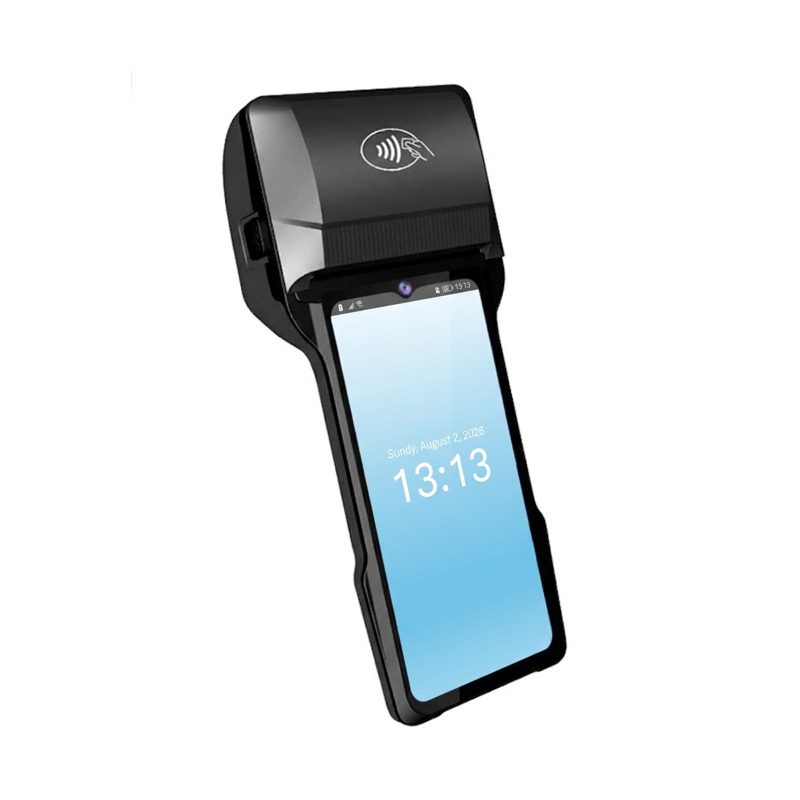

6.5" Handheld POS Terminal with UNISOC T606

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

6.5" HD (720 x 1600) IPS Incell Display with Multi-Touch
UNISOC T606 Octa-core Cortex-A75 + Cortex-A55 Processor
Integrated 80mm Thermal Printer & Built-in NFC for Fast Checkout & Payment
Optional 1D/2D Barcode Scanner for Efficient Inventory & Order Tracking
4G LTE, Dual-Band Wi-Fi (2.4G/5G), Bluetooth 5.0, and GPS Connectivity
6400mAh Removable Pure Cobalt Lithium Battery for Long-Lasting Operation

Specification
FAQ

ProductSpecification

System Information

Processor

UNISOC T606 Hexa-core Cortex-A55 + Dual-core Cortex-A75
System Memory

Onboard 3GB RAM

Storage

Storage

Onboard 32GB eMMC

Display

Graphic Chipset

Mali-G57 MP1 GPU

Audio

Audio Interface

Built-in Microphone

Power Requirement

DC Input

+5V
Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 10W (5V@2A) AC-DC adapter

Software Support

OS

Android 14

Panel

LCD Size

6.5"
LCD Panel

IPS
Display Type

LED
Resolution

720 x 1600
Touch Type

Projective capacitive multi-touch

External I/O

USB Port

1 x USB Type-C
Other

2 x SIM Card Slot

Battery

Battery Type

Lithium
Typical Capacity

6,400mAh

System Control

Control Buttons

Power / Volume+ / Volume- / Scan

Thermal Printer

Printing Method

Direct Thermal
Total Dots Per Line

576 dots/line
Max. Print Speed

70 mm/s
Max. Print Width

72mm
Max. Paper Width

80mm
Resolution

203 dpi
Type of Paper Cutting

Manual Tear Bar
Media Dimension

Paper Width: 80mm, Max. Roll Ø: 50mm

Data Collection

NFC

Support ISO/IEC 14443 Type A/B, Mifare1, SL3, Felica
Barcode Scanner

1D/2D IR
Camera

Front : 2MP
Rear : 5MP

Wireless Communication

WLAN

Optional Wi-Fi 802.11b/g/n/ac
Bluetooth

Optional BT 5.0

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity

20~80%RH
Weight

0.87kg

Packing List

Packing List

1 x RPC-06NB
1 x 5V/2A Adapter
1 x USB Type A to Type C
