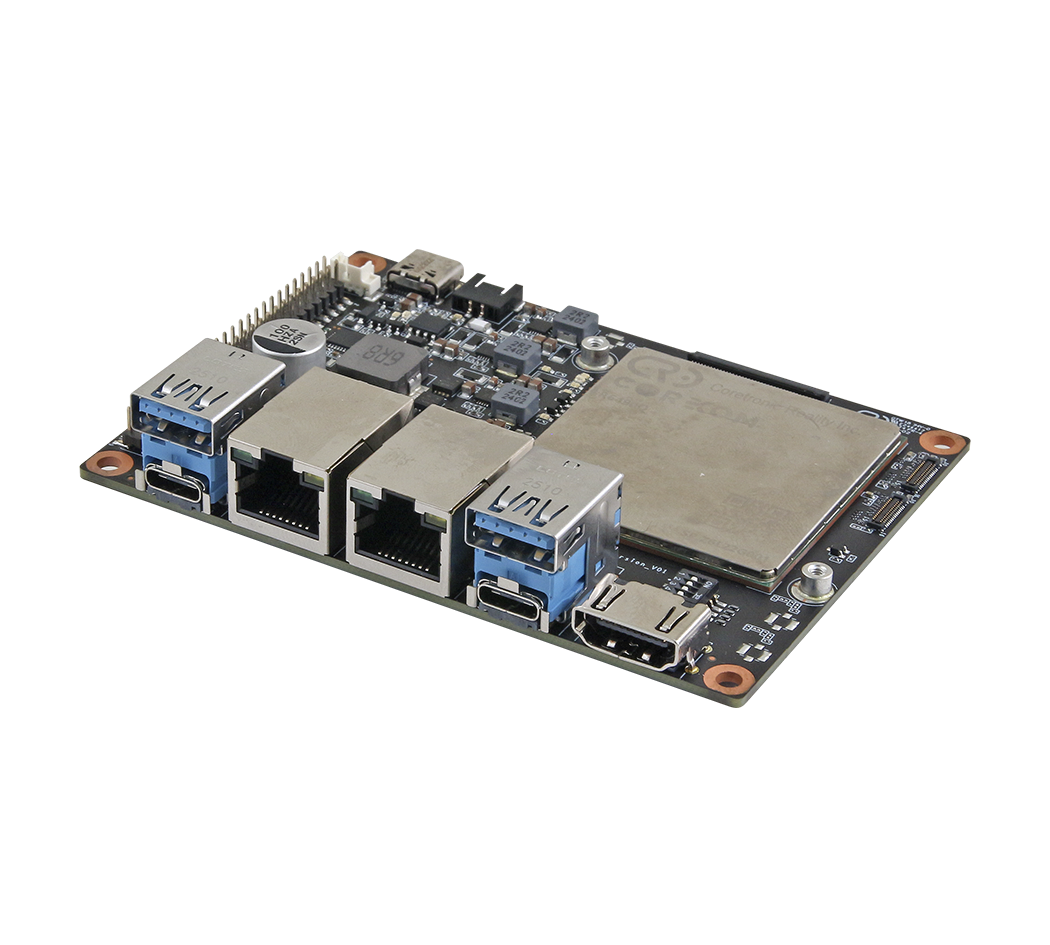

Avalue Technology - Industrial Computer

Processor

QCS6490
Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8)

System Memory

LPDDR4, 8GB (optional 4GB to 16GB)

Expansion

1 x M.2 B key 3052 (USB3.1) reference RM520N-GL Quectel
1 x Nano SIM slot (push and pull)

Storage

Support UFS 3.1, default 128GB

DC Input

DC 12V

DC Input Connector

2 pin Power Jack

OS

Ubuntu, Andriod , Windows(by demand )

Rear I/O Connectors

1 x GbE (RJ-45)
2x USB 3.1 Gen1 Type A
1x HDMI 1.4
1 x Line out/(stereo), 1x Mic in (mono), 1x speaker (stereo) audio jack

Internal I/O Connector

1 x RS-232 (RX, TX, RTS, CTS), 1x RS485
3x USB 2.0 , 1xUSB 3 type C (download only)
1 x 16-bit DIO
1xI2C
1 x uSD3.0 card
2 x MIPI-CSI2 for 4-lanes camera, reference to IMX577 and GC5035
UART (TX,RX)
1 x Power LED, 1 x System LED, Backlight
802.11ax Wifi and BT 5.2 onboard SoM

Operating Temp.

-20°C ~ 70°C

Storage Temp.

-40°C ~ 85°C

Dimension (L x W)

2.5" 100mm (3.94") x 72mm (2.83")
