AIB-NIAO-S

Highly Integrated AI Server, Provide 275 TOPS and Expandability

Get a Quote

Comparison

Datasheet

Get a Quote

Comparison

Datasheet

Powered by NVIDIA® Jetson AGX Orin™ up to 275 TOPS
2×PCIe Gen3×4
3×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key

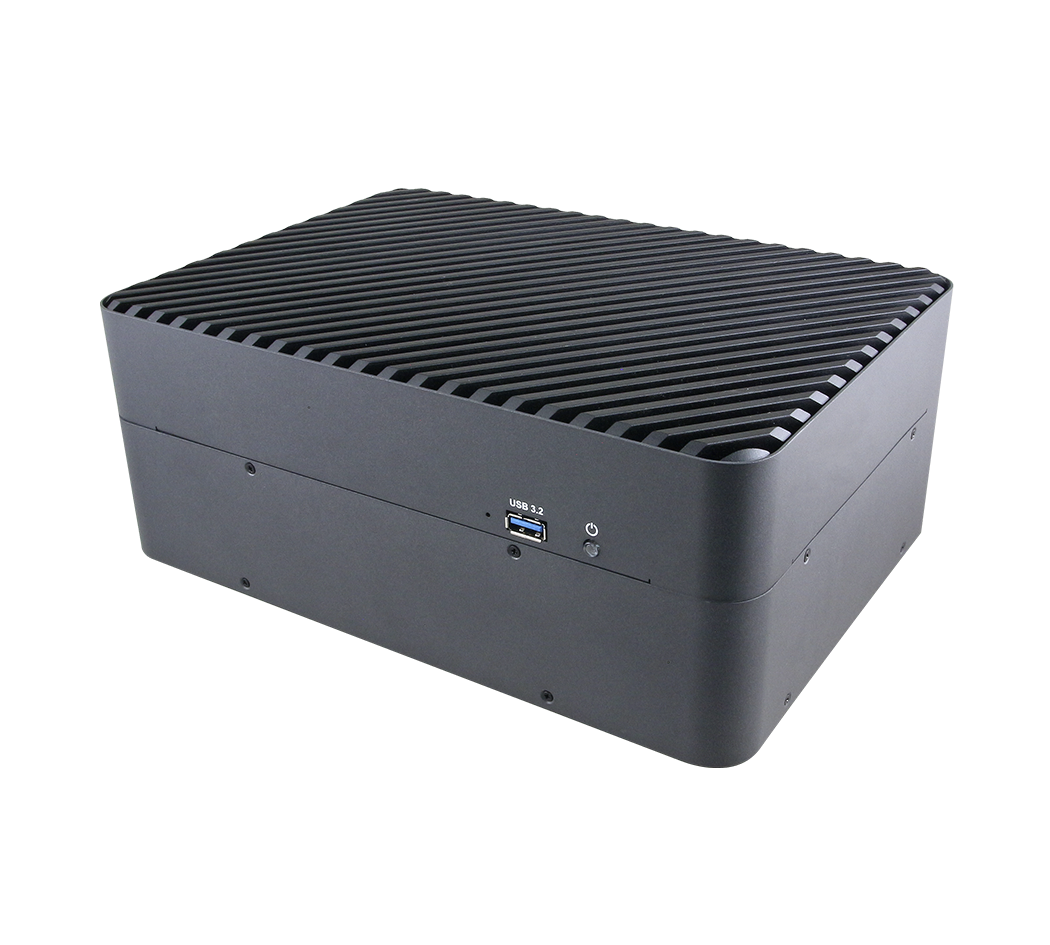

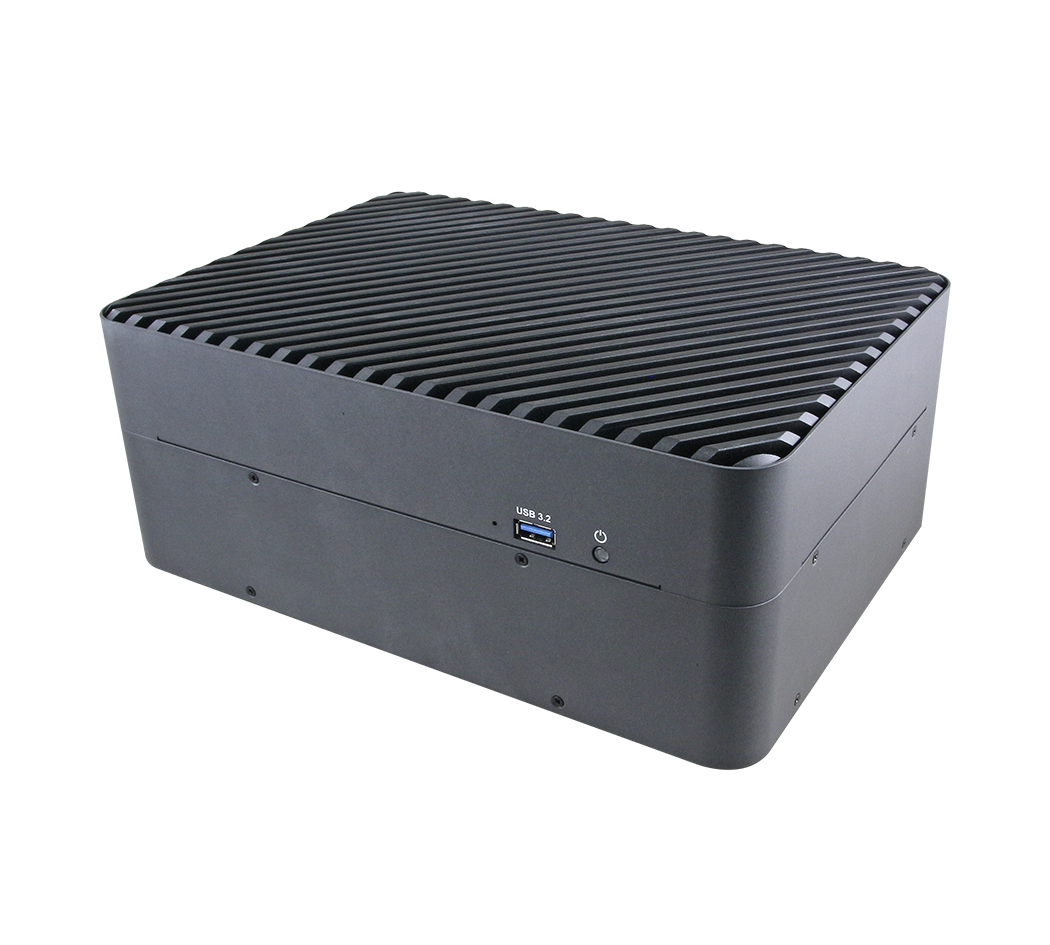

Fanless Design
2×USB3.2 Gen2
CAN Bus / UART / I2C / SPI

Specification
FAQ

ProductSpecification

System Information

System Memory

NVIDIA Jetson AGX Orin™ 32GB
32GB LPDDR5/
NVIDIA Jetson AGX Orin™ 64GB
64GB LPDDR5
Processor

NVIDIA Jetson AGX Orin™ 32GB
8-core Arm® Cortex®-A78AE v8.2 64-Bit CPU
2MB L2 + 4MB L3/
NVIDIA Jetson AGX Orin™ 64GB
12-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU
3MB L2 + 6MB L3
GPU

NVIDIA Jetson AGX Orin™ 32GB
1792-Core NVIDIA Ampere Architecture GPU with 56 Tensor Cores/
NVIDIA Jetson AGX Orin™ 64GB
2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores

AI Performance

AI Performance

NVIDIA Jetson AGX Orin™ 32GB
200 TOPS/
NVIDIA Jetson AGX Orin™ 64GB
275 TOPS

Expansion

PCIe

1×PCIe Gen3×4 Slot
1×PCIe Gen3×4 Slot
M.2

1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot
1×M.2 2280 M Key PCIe Gen4×4 Slot
1×M.2 2280 M Key PCIe Gen4×4 Slot(*)
1×M.2 3080 M Key PCIe Gen4×4 Slot(**)
1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot

* Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use
** Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use

Storage

Storage

64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)

Development Environment

OS

Ubuntu: 20.04
Kernal

5.10.104-tegra or Higher
BSP

Linux for Tegra(L4T) R35.1 or Higher
SDK

JetPack 5.0.2 or Higher

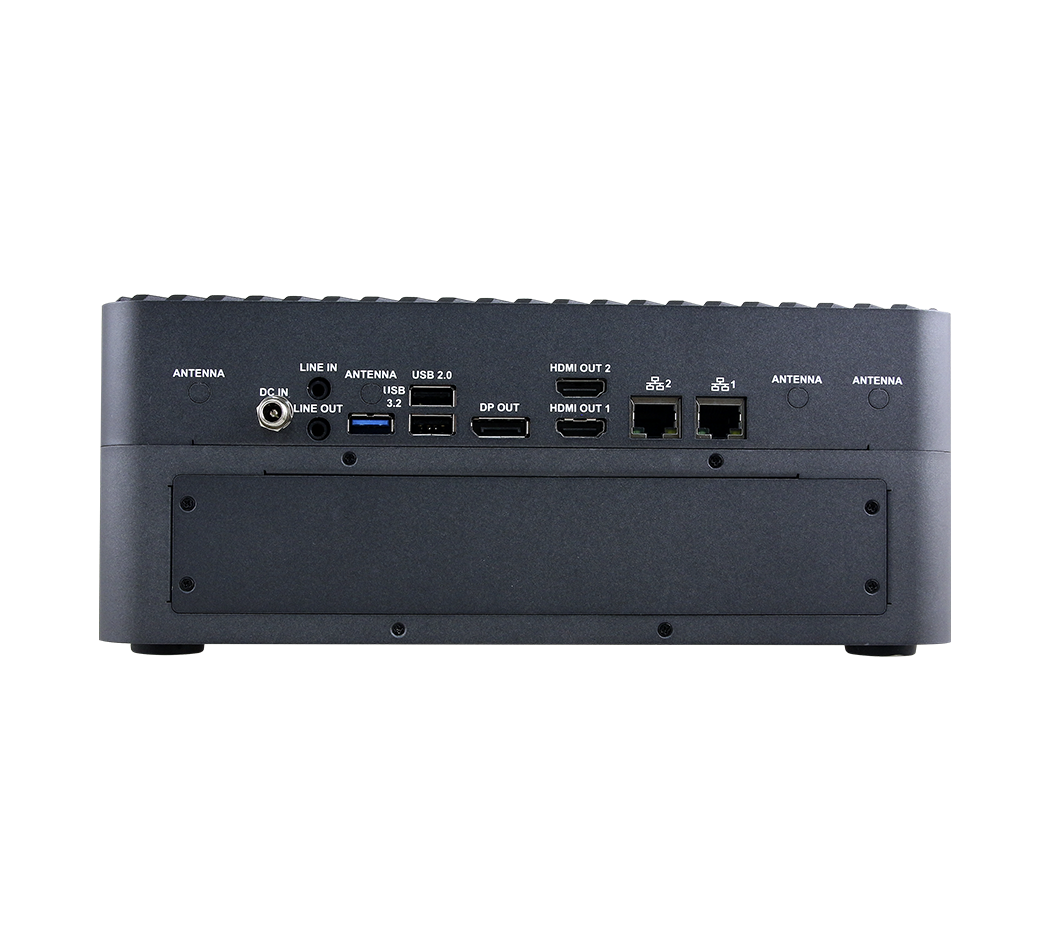

External I/O connector

USB

2×USB3.2 Gen2 ( Type-A )
2×USB3.2 Gen1 ( Pin Header )
2×USB2.0 ( Type-A )
Network

2×RJ45 for 10/100/1000Mbps Ethernet
DHCP Client
Display

2×HDMI2.0
1×DP
*Select 2 Video Output Port at Same Time
MIPI

16×MIPI CSI-2 Lanes ( D-PHY 2.1, 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card )
Peripheral Communication

1×UART ( Pin Header )
3×GPIO ( Pin Header )
2×CAN Bus ( Pin Header )
2×I2C ( Pin Header )
1×I2S ( Pin Header )
1×SPI ( Pin Header )
3×PWM ( Pin Header )
Misc. Features

Firmware Upgradable
AutoPower ( Pin Header )
Video Encode

NVIDIA Jetson AGX Orin™ 32GB
AV1 ( Main Profile )
．1×8K30 | 2×4K60 | 4×4K30 | 7×1080p60 | 15×1080p30
H.265 ( Main, Main10 )
．1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30
H.264 ( Baseline, Main, High )
．1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
VP9 ( Profile 0, Profile 2 )
．1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30
NVIDIA Jetson AGX Orin™ 64GB
AV1 ( Main Profile )
．1×8K30 | 3×4K60 | 6×4K30 | 9×1080p60 | 18×1080p30
H.265 ( Main, Main10 )
．1×8K30 | 3×4K60 | 7×4K30 | 11×1080p60 | 22×1080p30
H.264 ( Baseline, Main, High )
．1×4K60 | 3×4K30 | 6×1080p60 | 13×1080p30
VP9 ( Profile 0, Profile 2 )
．1×8K30 | 3×4K60 | 6×4K30 | 9×1080p60 | 18×1080p30
Video Decode

NVIDIA Jetson AGX Orin™ 32GB
AV1 ( UHP )
．1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
H.265 ( UHP )
．1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
H.264 ( UHP )
．1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
NVIDIA Jetson AGX Orin™ 64GB
AV1 ( UHP )
．2×4K60 | 4×4K30 | 8×1080p60 | 16×1080p30
H.265 ( UHP )
．2×4K60 | 4×4K30 | 8×1080p60 | 16×1080p30
H.264 ( UHP )
．1×4K60 | 3×4K30 | 7×1080p60 | 14×1080p30

Capture Card ( Optional )

PCIe Model

4×HDMI2.0
4×12G-SDI
16×TVI / AHD
8×GMSL2
4×HDMI
4×6G-SDI
M.2 Model

1×HDMI2.0
1×12G-SDI
1×DVI-I
1×YPbPr
1×VGA

Mechanical & Environmental

Power Requirement

DC 12~20V
Operating Temp.

Standard Version: 0~60。C with Airflow
Storage Temp.

-20~80。C

Optional Product Features Extension by Daughter Board

SDK / Software

By request
AGX 5G

5G Mobility Network ( Supports 5G / 4G / 3G SIM Module)

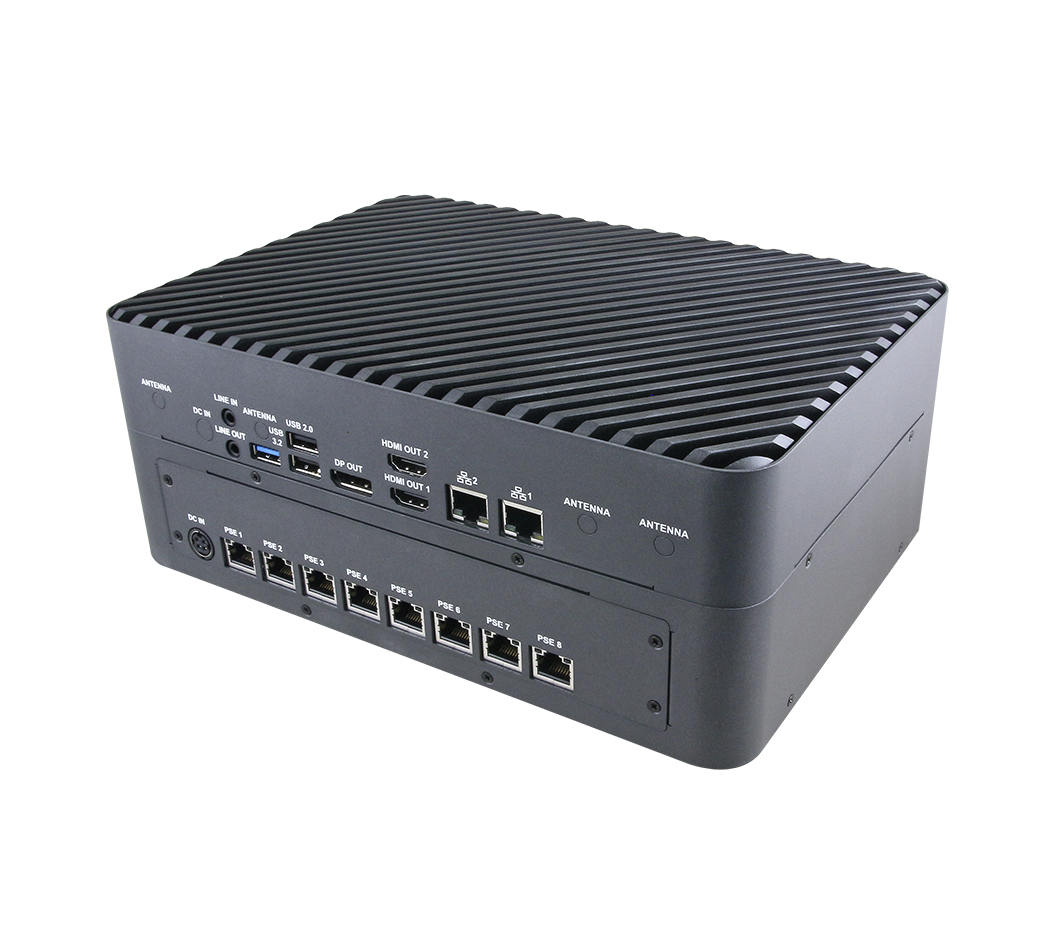

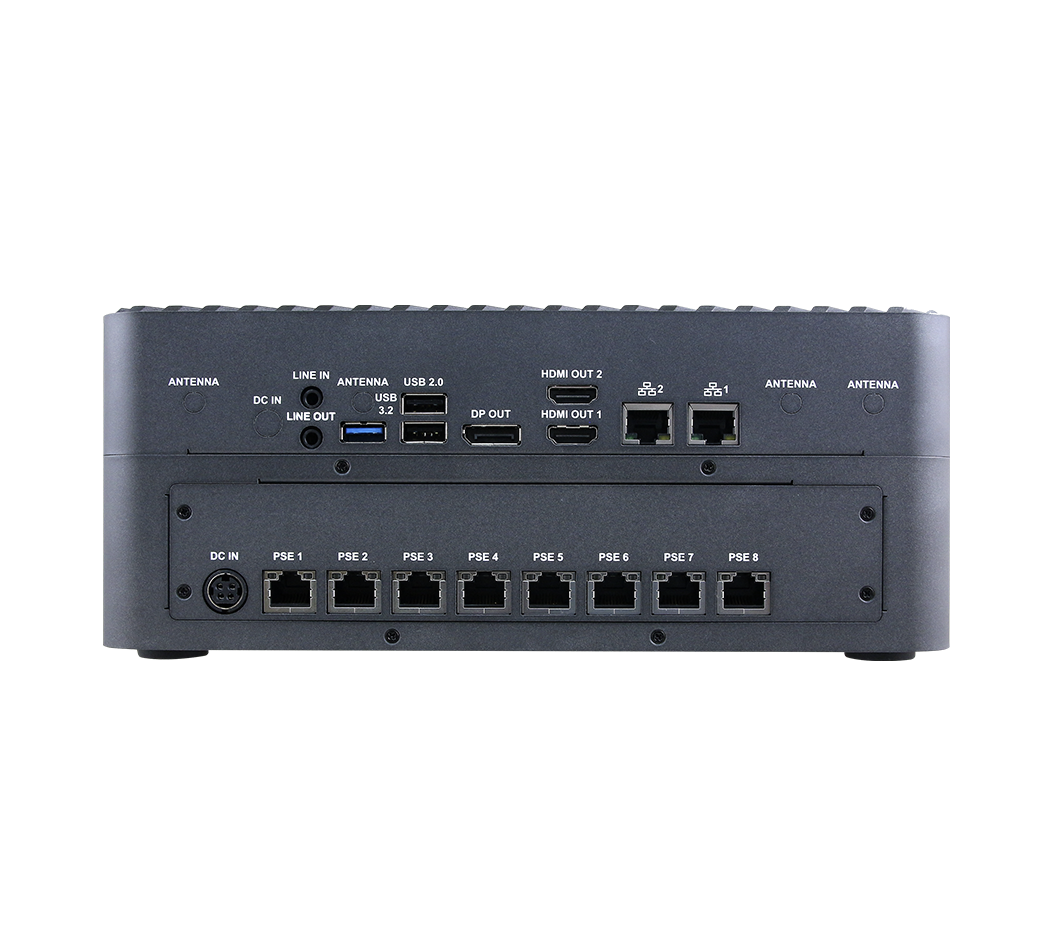

AGX PSE

"*IP Camera
8×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant
*PSE Power Supply
8×15W ( IEEE802.3af )"
