ACS-ALUC

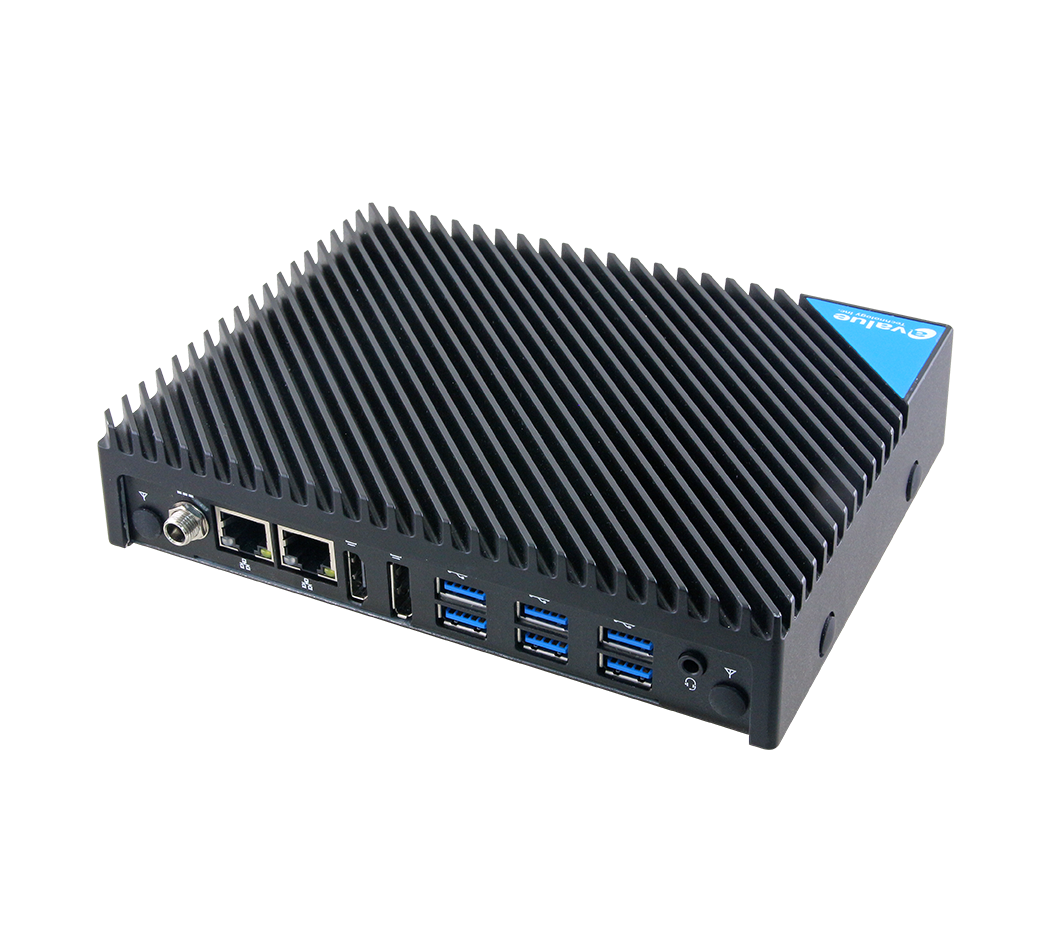

12th/13th Gen. Intel® Core™ i3/i5 processor Fanless Slim System

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

Intel® 12th Gen Core™ i5/i3 (15W) processors
Intel® Iris® Xe/UHD Graphics eligible
1 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 32GB
Dual Display (DP++, HDMI 2.0b)
4 x COM Port (RS232)
2 x Intel® Ethernet Controller (1GbE)
3 x Expanslot Slot (M.2 Key-E, Key-M, Key-B)
6 x USB Port (3 x USB3.2 Gen1)
1 x DC jack
1 x Audio jack(Line-out+Mic-in)

规格
文档
常见问题

产品规格

System Information

Processor

12th/13th Gen. Intel® Core™ i3/i5 (15W) processor
System Memory

1 x 260-pin DDR4 3200 SO-DIMM up to 32GB

Expansion

M.2

1 x M.2 Key-E 2230 (PCIE)
1 x M.2 Key-B 2242/3052 (PCIE+USB2.0+USB3.0)
1 x M.2 Key-M 2280 (PCIE)

Storage

M.2

1 x M.2 Key-M 2280

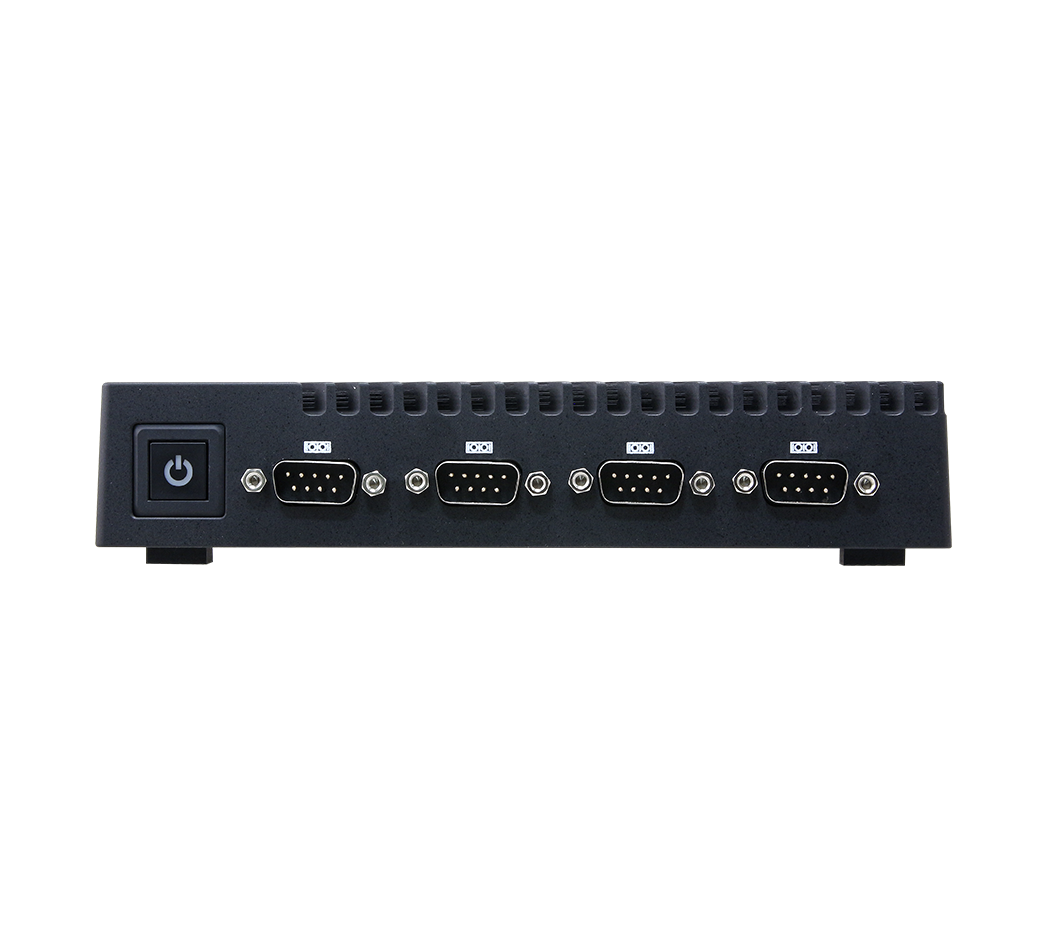

Front I/O

COM Port

4 x RS232(Front)

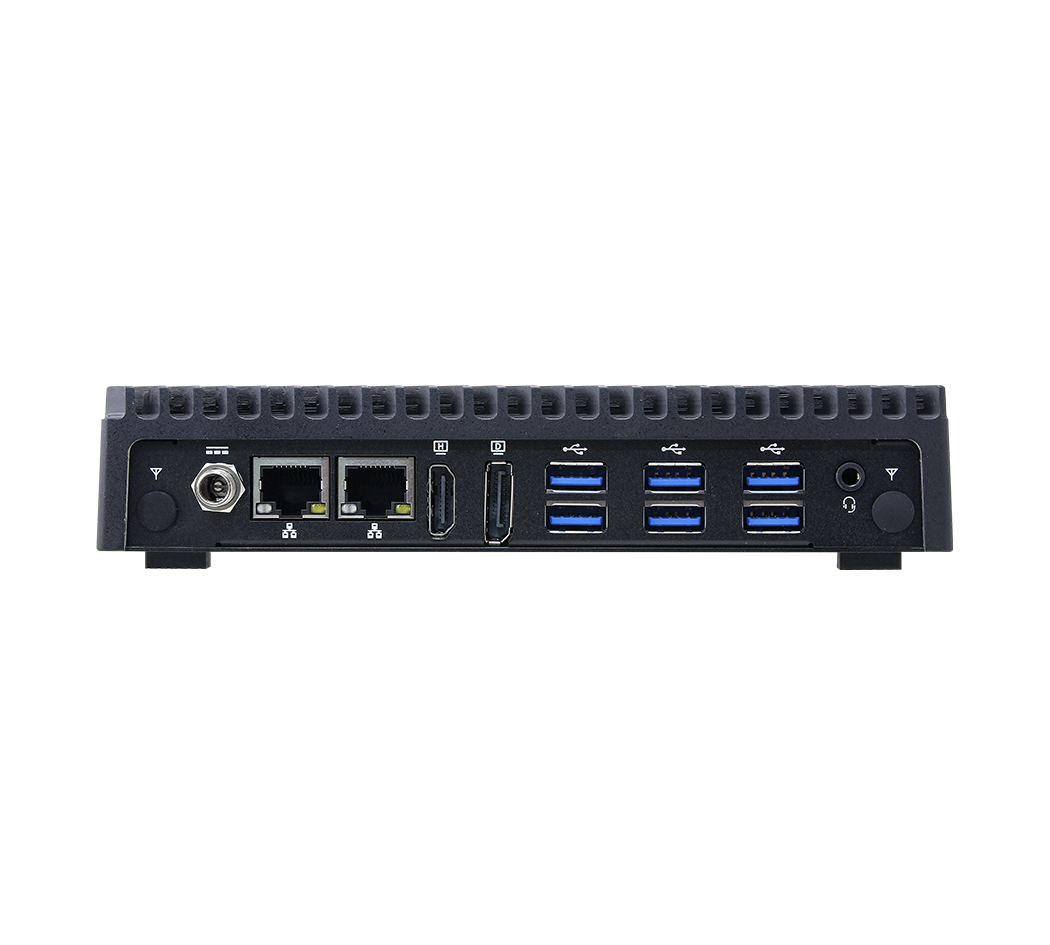

Rear I/O

USB

6 x USB 3.2 Gen1(Rear)
Audio

1 x Line-Out+Mic
DP

1 x DP++
HDMI

1 x HDMI
AC/DC Input

DC 12V

Ethernet

LAN Chipset

1 x I226V 1GbE
1 x I219V 1GbE

Software Support

OS

Win10, Win11, Linux

Mechanical & Environmental

Operating Temp.

-10°C ~50°C
Dimension (W x L x H)

180mm x 136mm x 40mm
Vibration Test

with SSD: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test

IEC 60068-2-27, Half Sine, 11ms
Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces

Ordering Information

Ordering Information

ACS-ALUC-A1-1R ACS-ALUC Compact System w/i3-1215U w/ECM-ALUC,Barebone Compact System
ACS-ALUC-A1-2R ACS-ALUC Compact System w/i5-1235U w/ECM-ALUC, Barebone Compact System
ACS-ALUC-A1-3R ACS-ALUC Compact System w/i3-1215U,DDR4 16GB,M.2 2280 128GB,Compact System
ACS-ALUC-A1-4R ACS-ALUC Compact System w/i5-1235U,DDR4 16GB,M.2 2280 128GB,Compact System

Chipset

1
Audio

2
Other Driver

2

Chipset

总计 1 档案

编号

发布日期

标题、描述

操作系统

文档

下载

2025-06-02

Intel Chipset Driver
10.1.18950.8298

Windows 11 64bit
Windows 10 64bit

Audio

总计 2 档案

编号

发布日期

标题、描述

操作系统

文档

下载

2025-06-02

Intel SST Driver

Windows 11 64bit
Windows 10 64bit

2025-06-02

Realtek Audio Driver
PG476

Windows 11 64bit
Windows 10 64bit

Other Driver

总计 2 档案

编号

发布日期

标题、描述

操作系统

文档

下载

2025-06-02

Intel ME Driver
16.0.15.1662

Windows 11 64bit
Windows 10 64bit

2025-06-02

Intel Serial IO Driver
30.100.2148.1

Windows 11 64bit
Windows 10 64bit
