Processor

Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz

Platform Controller Hub

Intel Apollo Lake SoC integrated

System Memory

2 x 204-pin DDR3L 1600MTs SO-DIMM up to 16 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring system temperature and voltage with auto throttling control

TPM

Option for Infineon SLB9665 TPM 2.0

SBC

EMX-APLP

CPU Cooler (Type)

Fanless heatsink

Other

1 x WiFi with waterproof antenna (optional)

Expansion

1 x M.2 (2230) A-Key support WiFi module

Storage

Default with 64GB mSATA

Other Storage Device

1 x 2.5 Drive bay for SSD/HDD(by option)

Graphic Chipset

Intel® HD graphics 500

Spec. & Resolution

LVDS: Max. Resolution 1920x1080 @ 60Hz
eDP: Max. Resolution 4096x2160 @ 60Hz

Audio Codec

Realtek ALC662

LAN Chipset

2 x Intel I211AT Gigabit Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +24V

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Linux / Android 8.1

Certification Information

CE / FCC Class A

LCD Size

21.5", 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

247.95um(H) x 247.95um(V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89(L), 89 (R)

Response time

22 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

Touch Controller

EETI 80H84

USB Port

2 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain

LAN Port

1 x RJ-45 8-pin (male) for LAN with waterproof cover and chain

COM Port

1 x M12 8-pin (male) for COM (RS-232/422/485) with waterproof cover and chain

SATA

1 x SATA III

LED Indicator

HDD LED, power LED

Operating Temp.

-10°C ~ 45°C (14°F ~ 113°F), by flow = 0.5

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

562 x 365.8 x 49mm

Weight

9.4 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Whole system IP69K, IP66

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

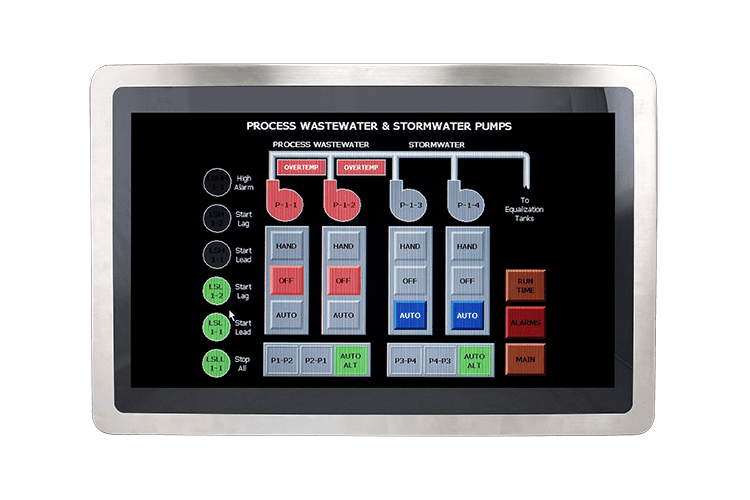

Construction - Front

Stainless steel

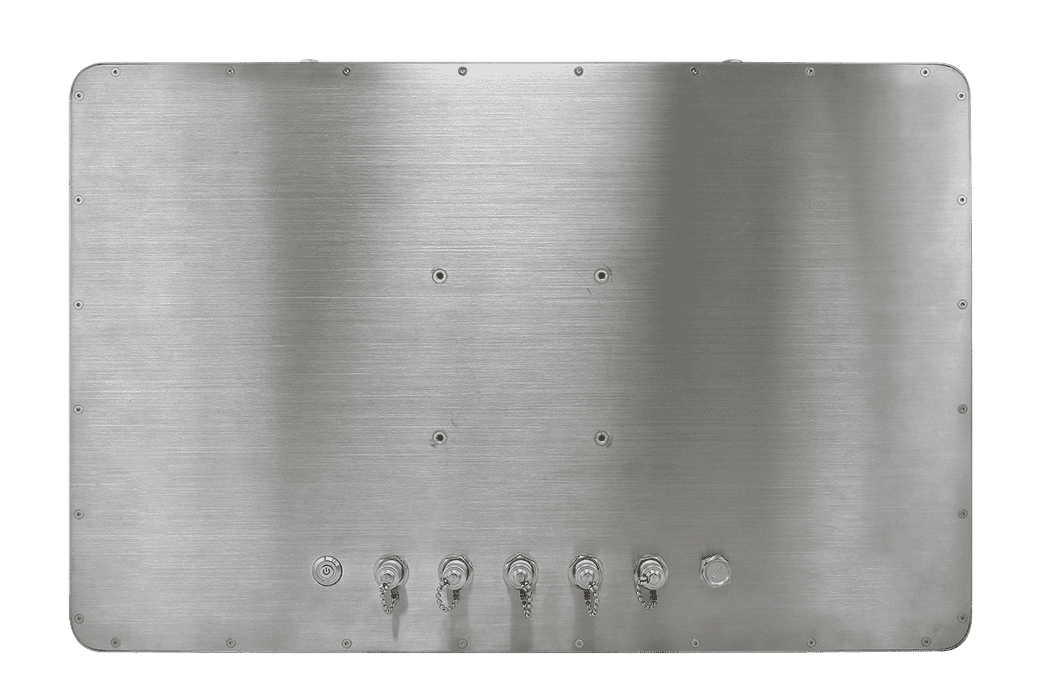

Construction - Rear

Stainless steel

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (24V @ 2.5A adapter) AC-DC adapter (need waterproof M12/3pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector)

Ordering Information

SPC-2133-345-B1R
21.5 1920 x 1080 Full IP-66 Stainless Steel panel PC/PCap/IP-69K/ (F1 Stepping CPU) intel J3455/4GR/64GmSATA/5M12(LAN/2x2USB/COM/DCin)/VentValve/EMX-APLP/without Adapter

ACC-ARM-D1R
VESA STAND, 75mm & 100 mm

ACC-ARM-D23R
VESA STAND, 75mm & 100 mm

ACC-ADP-060N-09R
AC/DC adapter 24V/2.5A 90 Plug Type
*(Suggest DC Jack to M12 cable E170W050030R (Waterproof M12 DC Cable) when adapter needed)

ACC-SPC-WIFI-03R 
Wifi Kit for SPC-xx33/38-B1/M.2 WIFI intel 9260/2 Antenna

E170W050030R
Waterproof M12 DC Cable

E170W160030R
Waterproof M12 USB Cable

E170W160040R
Waterproof M12 Lan Cable

E170W170010R
Waterproof M12 COM Cable

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
