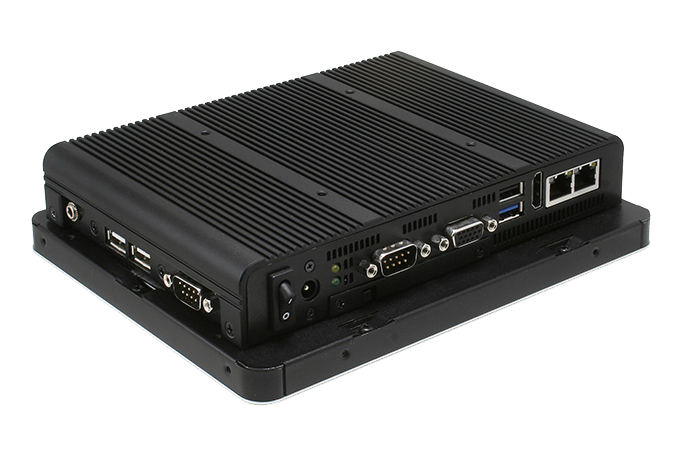

Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

ECM-BYT

CPU Cooler (Type)

Fanless heatsink

Other

1 x HDMI

Expansion

1 x Mini PCIe support mSATA

Storage

1 x CompactFlash type I/II socket

Graphic Chipset

Intel® Valleyview SoC integrated graphics
supports dual display

Spec. & Resolution

HDMI:Max. Resolution 1920x1200@ 60Hz

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

LAN Chipset

2 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win 7 / Win 8 / Linux

Certification Information

CE / FCC Class B

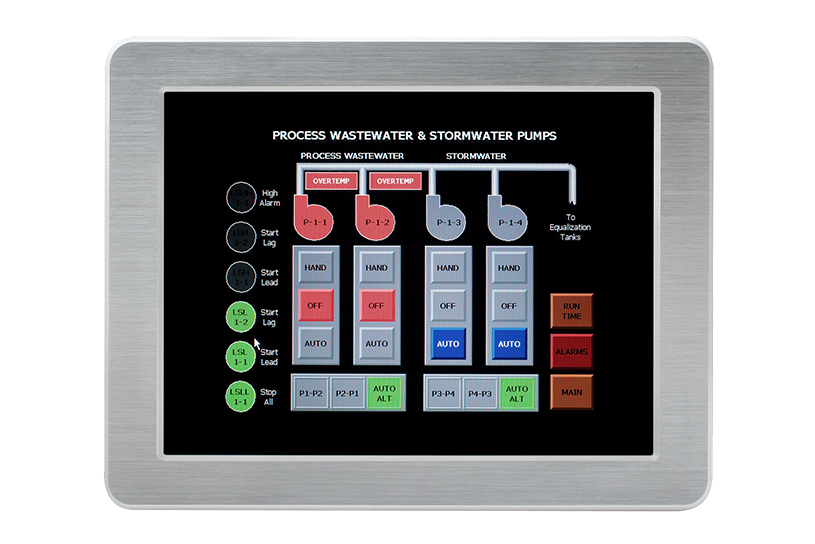

LCD Size

8", 4:3

Display Type

SVGA

Resolution

800 x 600

Pixel pitch

0.0675mm(H) x 0.2025mm(V)

Luminance

500 cd/m2

Contrast ratio

500

Viewing angle

50(U), 70(D), 70(L), 70 (R)

Response time

25 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

USB touch (EETI)

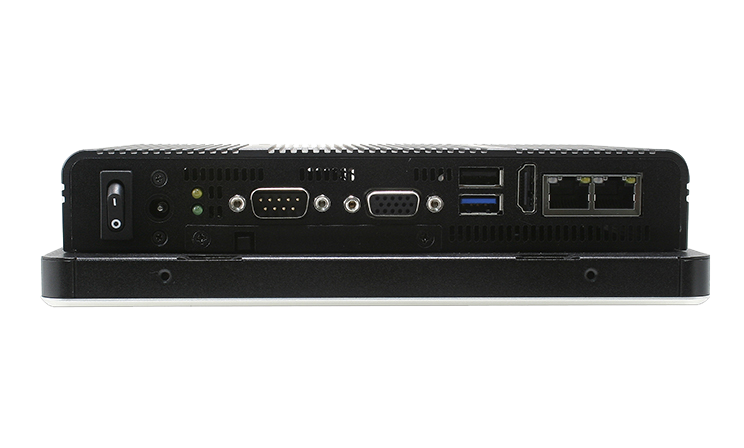

USB Port

1 x USB 3.0
3 x USB 2.0

LAN Port

2 x RJ-45

COM Port

1 x RS-232
1 x RS-232/422/485

LED Indicator

HDD LED, power LED

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

202.5 x 159.5 x 46.5mm

Weight

1.5 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter)

Ordering Information

LPC-0809-384-A4R
Intel Atom E3845 1.91GHz/4G DDR3L/2GLAN/2COM/4USB/12~26V input/12V Adaptor

LPC-0809-WMB-A4R
Intel Atom E3845 1.91GHz/4G DDR3L/2GLAN/2COM/4USB/Back panel mount/12~26V input/12V Adaptor

ACC-LPC-WIFI-01R
MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

ACC-LPC-08-PMT-03R
Front Panel Mount Kit for LPC-08 Series, w/o IP-65

ACC-LPC-08-PMT-04R
Front Panel Mount Kit for LPC-08 Series, w/ IP-65

E1702031833R
USA Power Cord

E1702031000R
EU Power Cord

E1702031834R
Japan Power Cord

E1702031830R
UK Power Cord

E1702031831R
Australia Power Cord
