Processor

11th Generation Intel® Core™ i3/i5/i7 Processors (Non-embedded CPU)
Intel® Core™ i7-1165G7 Processor, 12M Cache, up to 2.80 GHz
Intel® Core™ i5-1135G7 Processor, 8M Cache, up to 2.40 GHz
Intel® Core™ i3-1115G4 Processor, 6M Cache, up to 3.00 GHz

System Memory

2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max

I/O Chipset

NuvoTon_NCT6126D

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0

SBC

EMX-TGLC-B1

CPU Cooler (Type)

Fanless heatsink

Other

AUX-089 (SIM card expansion card)

Expansion

1 x M.2 Key B+M 3042/3052/2242/2260/2280 support 1xPCIEx1/SATA/USB3.0/USB2.0 with 1 x SIM card slot, support WWAN+GNSS
1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)

Storage

M.2 type B 3042/3052/2242/2260/2280 SSD (SATA)

Other Storage Device

Reserve space for future1 x 2.5 drive Bay design

Audio Codec

Realtek ALC897 co-lay ALC888S (Default: ALC897)

Speaker Output

2 x 5W

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY (LAN1)
1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2)

Ethernet Interface

Intel® I219LM : 10/100/1000 Base-Tx GbE compatible
Intel® I226LM: 10/100/1000/2.5G Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

Adapter

Input: 100~240Vac / 50~60Hz
Output: 120W adapter (24V @ 5A)

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Win11 / Linux

Certification Information

CE/ FCC Class B/ UKCA / LVD / VCCI

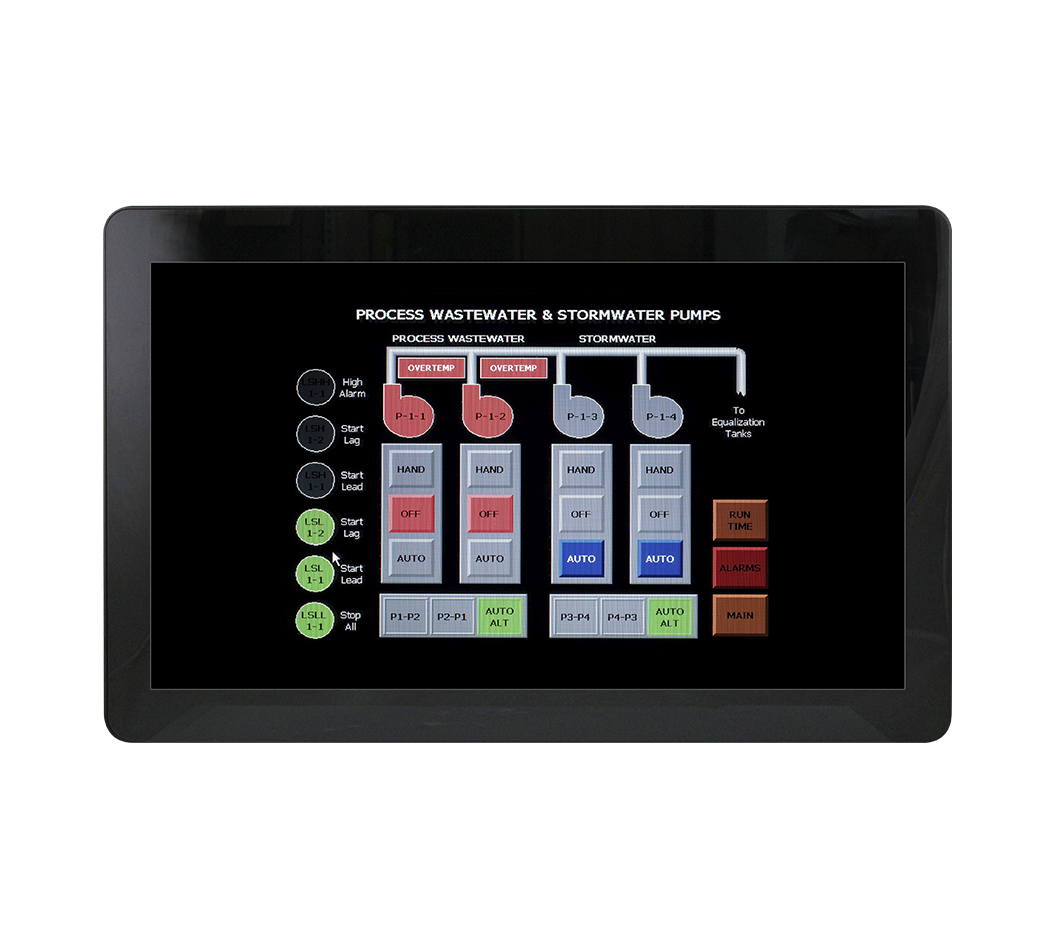

LCD Size

21.5", 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

247.95um(H) x 247.95um(V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

20 ms

Backlight

TFT-LCD

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

>=85%

Touch Controller

ILITEK ICI2322

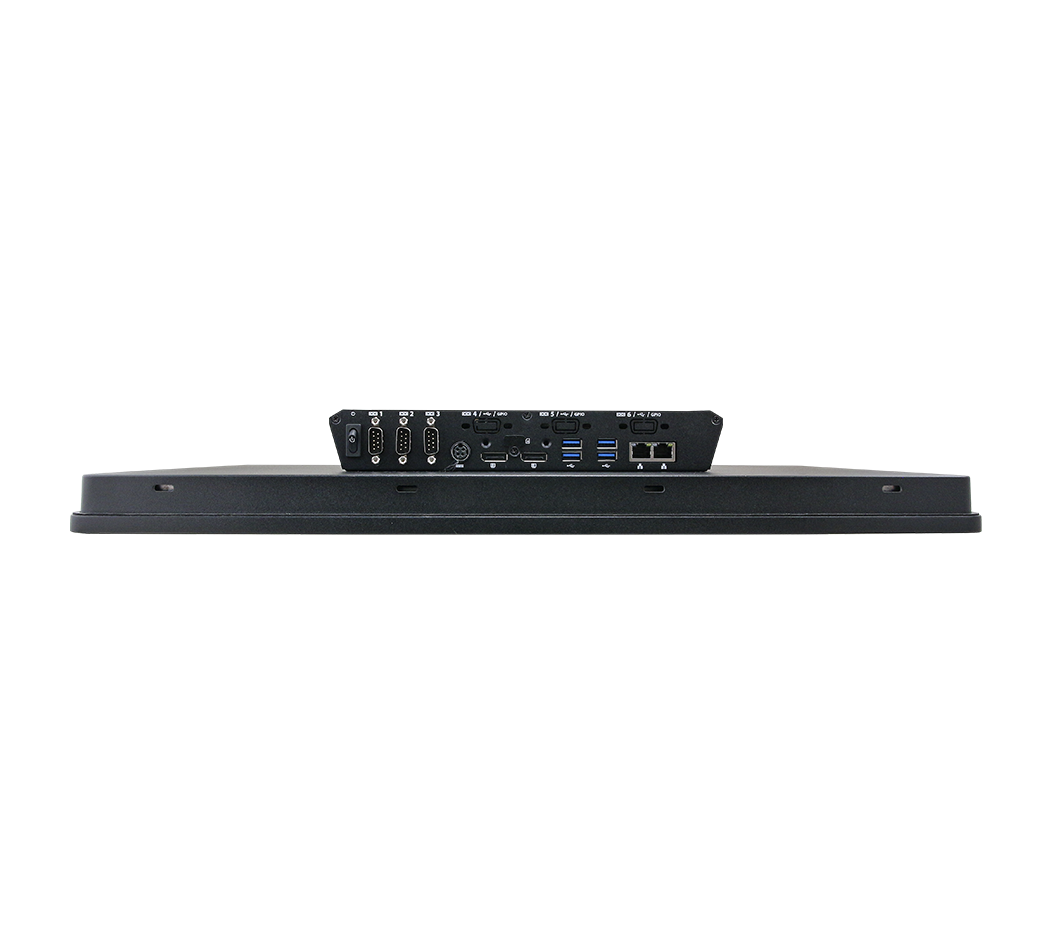

USB Port

3 x USB3.2 Gen2, 1 x USB3.2 Gen1
3 x RS232 or GPIO or USB2.0 (optional)

LAN Port

2 x RJ-45

COM Port

1 x RS232/422/485(default)
2 x RS232 (default)
3 x RS232 or GPIO or USB2.0 (optional)

Display Port

2 x DP++: 1920 x 1080@60 Hz

Antenna

2 x Antenna Mounting with Dust Cover
4 x Antenna Mounting with Dust Cover for 5G

LED Indicator

HDD LED, power LED

WLAN

IEEE802.11 ac/a/b/g/n 2.4 GHz, 5 GHz (optional)

Bluetooth

BT5.1 (optional)

Operating Temp.

0°C ~ 50°C (32°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

538.05 x 341.05 x 63.55mm

Weight

10.1 Kg

Vibration Test

With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

Operating with SSD/M.2 SATA : IEC 60068-2-27 testing procedures, 10G for operation mode

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Die casting with cover lens

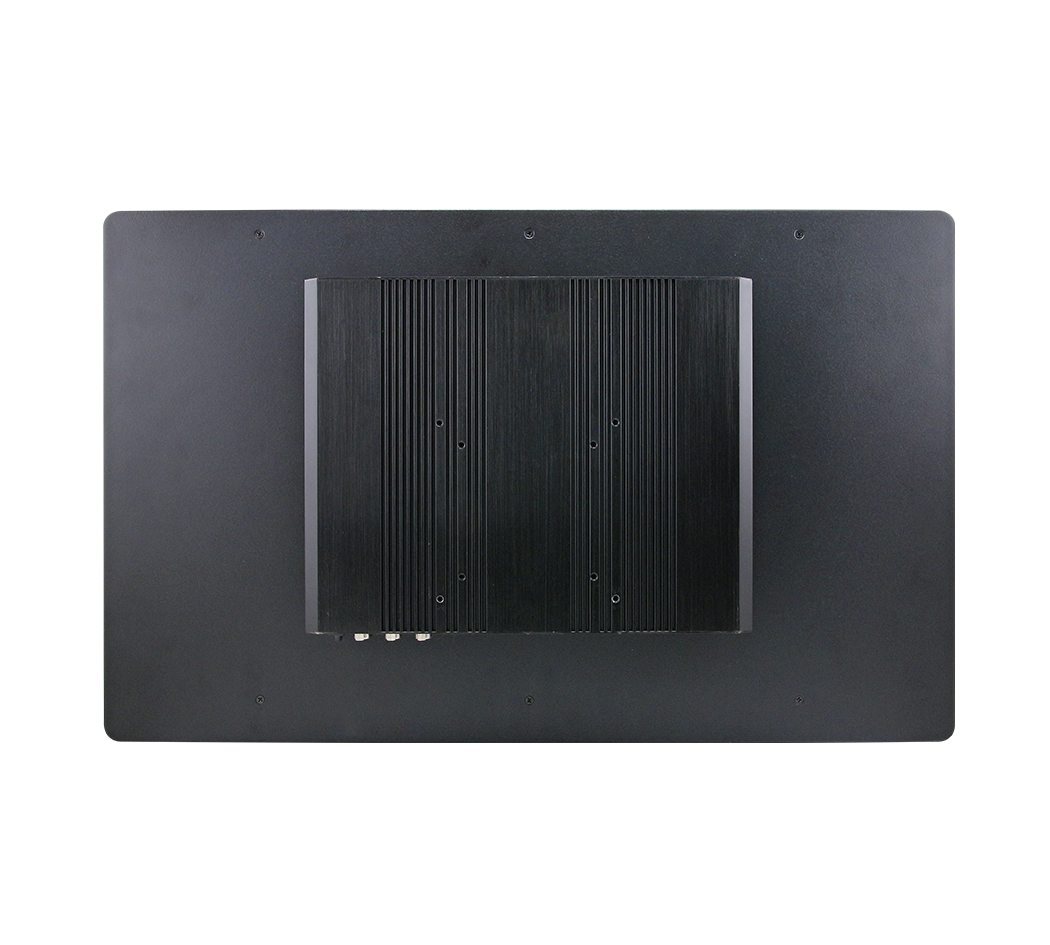

Construction - Rear

Black die casting

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 120W adapter (24V @ 5A adapter)

Ordering Information

ARC-21W38-3G4-C2R
ARC-21W38 w/i3-1115G4/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit

ARC-21W38-5G7-C2R
ARC-21W38 w/i5-1135G7/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit

ARC-21W38-7G7-C2R
ARC-21W38 w/i7-1165G7/PCAP/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit

C971XAR38C1000R
Intel AX210 WIFI6 M.2 2230 A-Key kit

C971XAR38C1001R
Intel8265NGW M.2 2230 NGFF BT4.2 kit

C971XAR38C1002R
Wifi 802.11 ac/a/b/g/n,2T2R, BT5.1 kit

C971XAR38C1003R
4G LTE Module, SIM7600G-H-M2, SIMCOM

C971XAR38C1004R
SIMCOM, SIM8202G(USB3.0)

C971XAR38C1005R
COM Kit for ARC-1738-C1

C971XAR38C1006R
USB Kit for ARC-1738-C1

C971XAR38C1007R
GPIO Kit for ARC-1738-C1

C170P060040R
US Power Cord SM001/3P+SM006/3P 1.83M

C170P060050R
EU Power Cord SH005/3P+SH006/3P 1.83M

C170P060060R
JP Power Cord SH001/3P+SH006/3P 1.83M

C170P060070R
UK Power Cord YP61A/3P+YC12/3P 1.83M

C170P060080R
AU Power Cord SH051/3P+SH006/3P 1.83M
