Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

2GB LPDDR4

Storage

32GB eMMC

Graphic Chipset

Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

Speaker Output

1 x 2W

LAN Chipset

Realtek RTL8211F-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Adapter

Input: 100~240 Vac/50~60 Hz Output: 50W Adapter (19V @ 2.63A Adapter)

OS

Android 11 / Debain 11

Certification Information

CE, FCC Class B

LCD Size

7"

LCD Panel

TFT

Resolution

1024 x 600

Pixel pitch

0.1506 mm (H)× 0.1432 mm (V)

Luminance

300 cd/m²

Contrast ratio

750

Viewing angle

80 (U), 80 (D), 80 (L), 80 (R)

Response time

25 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

>86%

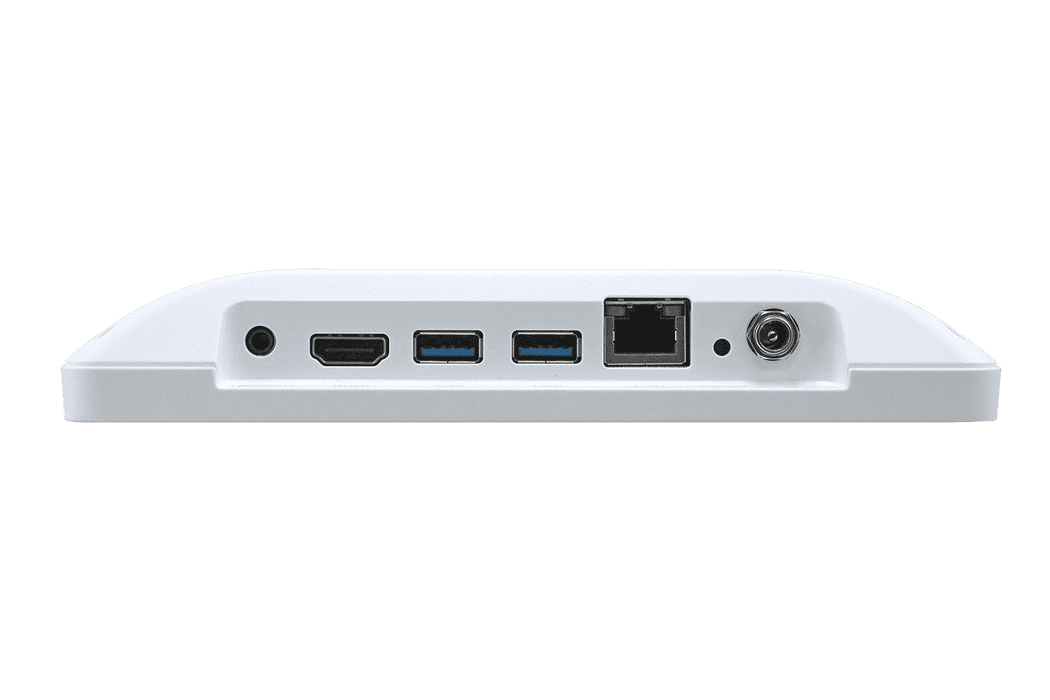

USB Port

2 x USB 3.0

Audio Port

1 x Headphone Jack

LAN Port

1 x RJ45​

HDMI

1 x HDMI 2.0 Out

DC input

1 x DC Jack

Other

1 x Reset button

Camera

1 x 2.0MP Camera

WLAN

Wi-Fi 802.11ac/a/b/g/n

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

191 x 124 x 30 mm

Weight

0.6 kg

VESA

75 x 75

Power Requirement

DC +12 ~ +24V

Power Mode

AT

System Fan

Fanless

Color

White

Construction

Plastic

Packing List

1 x AC/DC 50W Adapter 19V/2.63A
1 x Power Cord

Ordering Information

CCD-07WR2-CV39C-1R : CCD-07WR2--32G-Android 11
CCD-07WR2-CV38C-1R : CCD-07WR2--32G-Debian 11
