AVAILABLE

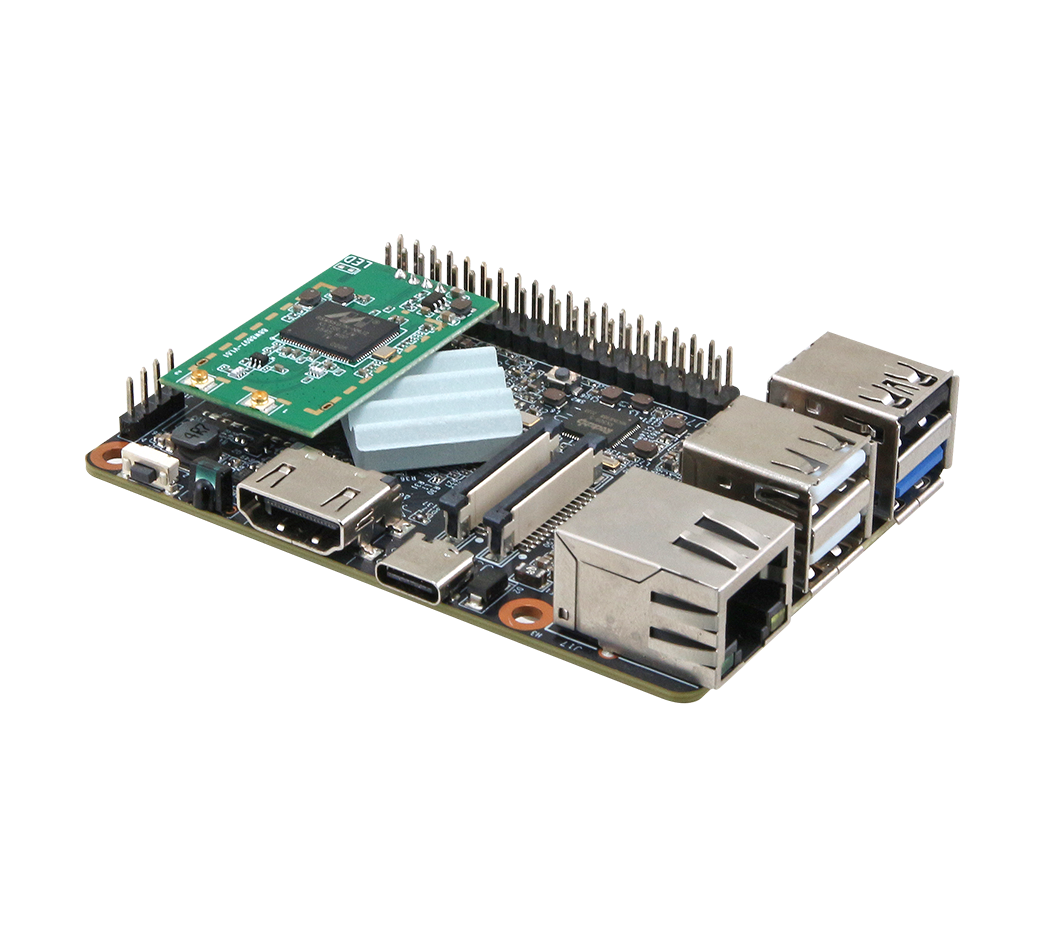

ACP-3566-PI

1.8" SBC, the Alternative of Rasberry Pi with a long lifecycle guarantee

Get a Quote

Comparison

数据表

Get a Quote

Comparison

数据表

  • Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz, 4GB RAM and onboard 32 GB eMMC
  • Support HDMI 4K output display, MIPI-DSI and MIPI-CSI video input and output
  • Support 40P GPIO and can be configured as rich expansion interfaces such as RS232, GPIO, SPI and I2C. It also built-in Gigabit Ethernet port, supports Wi-Fi
  • Small Size 85 mm * 55 mm
  • Long life cycle guarantee and sufficient supply
  • 规格
  • 文档
  • 常见问题

产品规格

System Information

  • Processor

    RockChip RK3566 Quad-core Cortex-A55

  • System Memory

    4 GB

Storage

  • Storage

    onboard 32 GB eMMC

Power Requirement

  • DC Input

    DC 5V / 3A via USB-C

Software Support

  • OS

    Linux Debian 10

Certification

  • Certification Information

    CE, FCC Class B

I/O

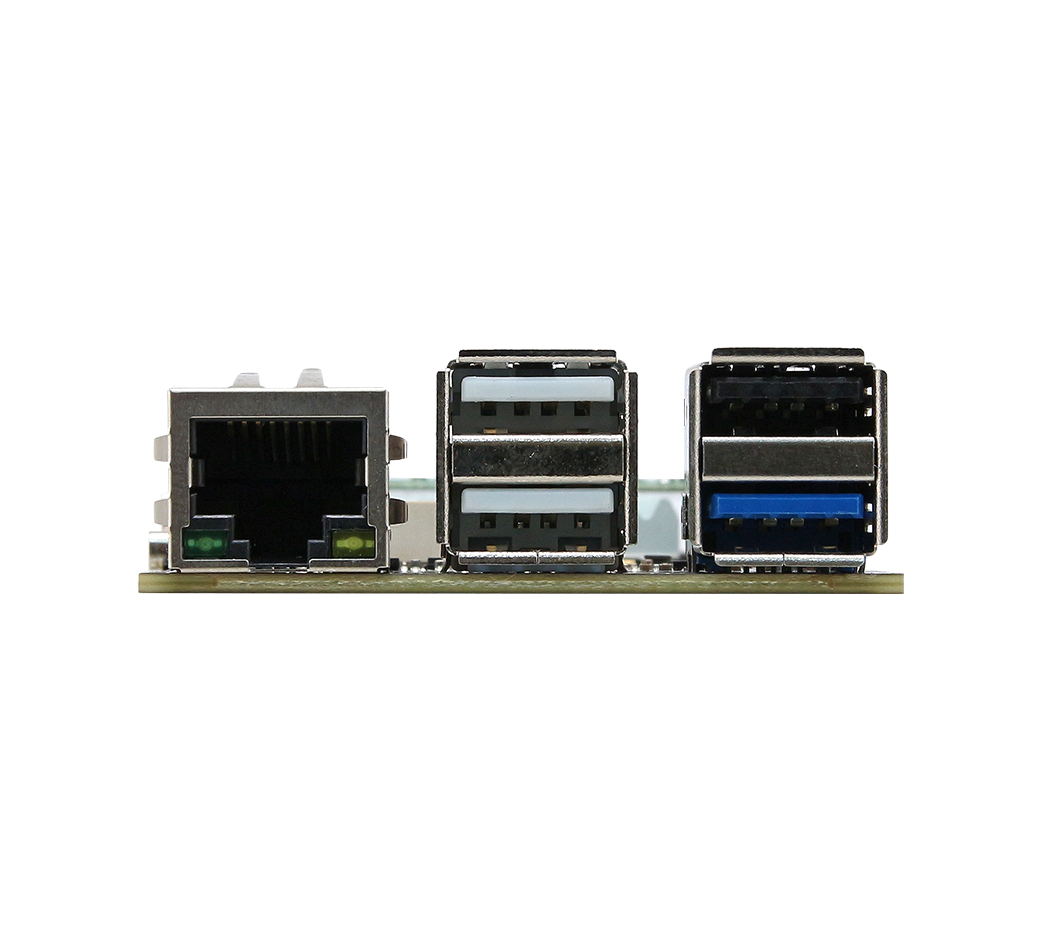

  • External I/O Connector

    1 x 10/100/1000 RJ45 Powered LAN
    1 x HDMI 2.0 Out
    2 x USB Host 2.0
    1 x USB OTG 2.0
    1 x USB Host 3.0
    1 x micro SD memory card slot (max 64 GB)

  • Internal I/O Connector

    40 x GPIO pin header, GPIO, UART, I2C, SPI
    1 x WIFI 802.11 a/b/g/n/ac
    1 x MIPI CSI
    1 x MIPI DSI

Mechanical & Environmental

  • Operating Temp.

    0 ~ 60°C (32 ~ 140°F)

  • Storage Temp.

    -40°C ~ 75°C (-40°F ~ 167°F)

  • Dimension (L x W)

    85 x 55 mm

  • Weight

    0.16 kg

Ordering Information

  • Ordering Information

    ACP-3566-PI-A1-1R

  • Manual
    1
  • 全部内容
  • Manual

    总计 1 档案

    编号
    发布日期
    标题、描述
    操作系统
    文档
    下载
    2024-04-15
    ACP-3566-PI 1st Manual
