HID-2138 Win10 21H2 installation scramble object issue

匯出PDF文件

  • 檔案編號

    2023082802

  • 類別

    軟體Installation

  • 修訂版本

    A1

  • 更新日期

    2023-09-20

型號名稱

HID-2138

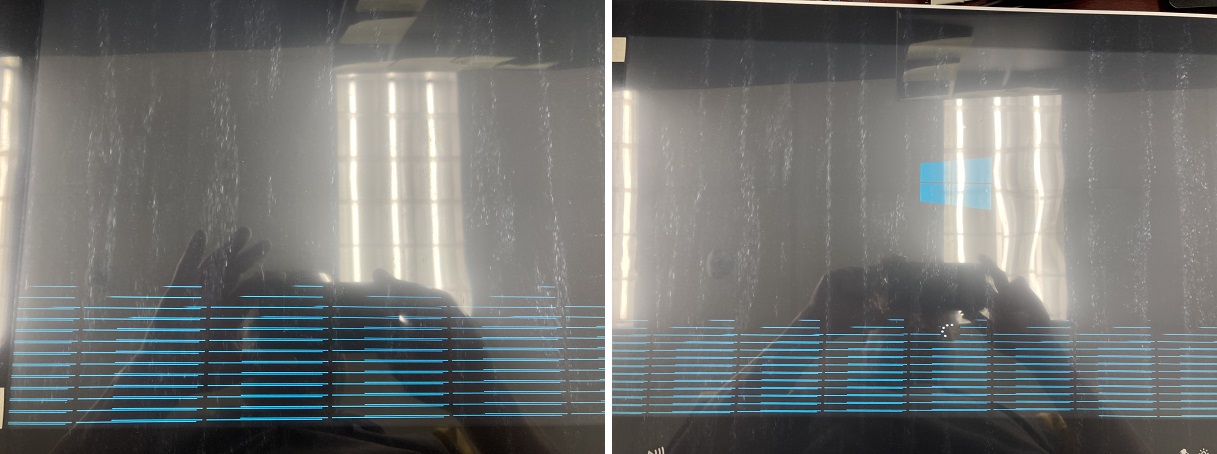

  • When we install Win10 (21H2), there are some scramble objects shown on lower 1/3 of the screen before Win10 installation begins. It only occurs during the first time of Win10 21H2 installation, the subsequent Win10 boots no longer have such issue.
  • Since we modified the standard BIOS to keep the POST AMI logo in original size to fix the Window logo shift on the patch panel. However, this modification has resulted in garbled issues during Win10 installation. Considering the system boot status, it is not recommended to remove this patch. Therefore, the Win10 installation garbled issue will be categorized as a limitation.
