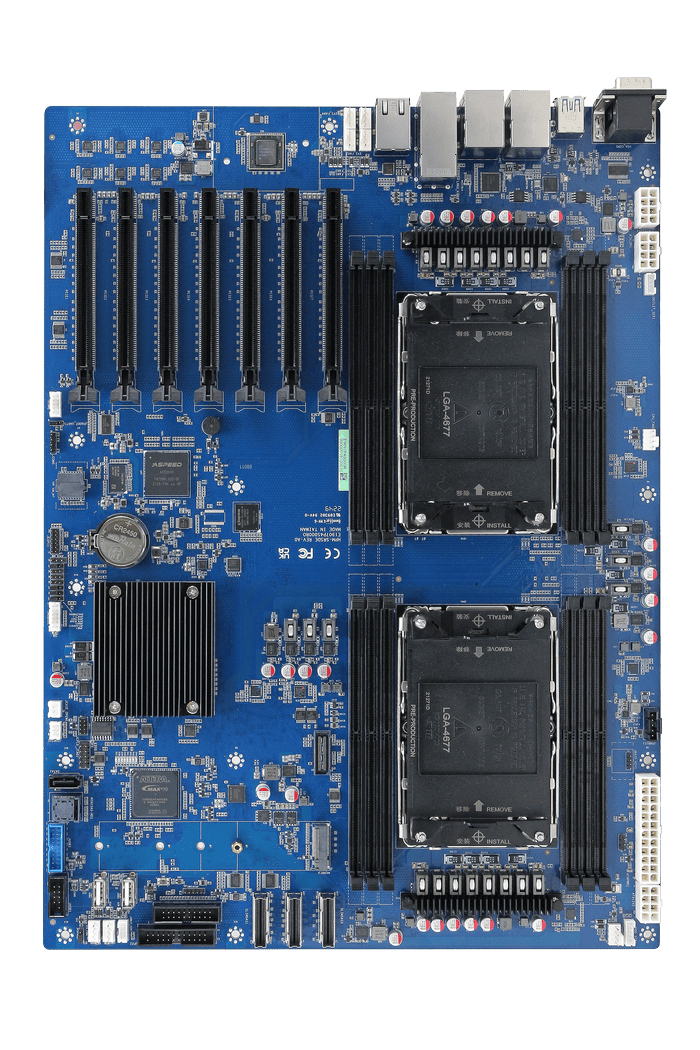

HPM-ERSDE
Dual 4th/5th Generation Intel®Xeon® Scalable Processor Proprietary Server Board with Intel®C741 Chipset and IPMI2.0. Processor supports up to 270W TDP
- Dual Intel LGA4677 Sockets support 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
- Intel® C741 Chipset
- 12 x DDR5 5600 MHz RDIMM up to 3TB
- TPM 2.0 onboard
- IPMI 2.0 with AST 2600 BMC controller onboard.
- 1 x Intel I210AT 1GbE controller
- 1 x Intel I226-LM 2.5GbE controller
- 1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
- 5 x SATA III Support RAID 0,1,5,10
- 1 x RS232 port
- 6 x USB 3.2 Gen1 ports at Edge I/O
- 2 x Internal USB 3.2 Gen1 port & 2 x USB 2.0 type A receptacle & 2 x internal USB 2.0 ports
- 1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD,2242/2260/2280/22110 form factor
- 12” x 16.452” (304.8mm x 417.88mm), PCB thickness is 2.86mm
規格
System Information
-
Processor
Dual Intel LGA4677 Sockets support 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W each)
-
Platform Controller Hub
Intel® C741 Chipset
-
System Memory
12 x DDR5 5600 MHz RDIMM up to 3TB
-
Watchdog Timer
System reset event 0 ~ 6553 seconds
-
BIOS
AMI UEFI BIOS
-
H/W Status Monitor
CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection -
TPM
TPM 2.0 onboard
-
IPMI
IPMI 2.0 with AST 2600 BMC controller onboard
Rear I/O
-
USB
6 x USB 3.2 Gen1 ports
-
COM Port
1 x RS232 port
-
RJ-45
5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE -
VGA
1 x VGA port
Display
-
Graphic Chipset
AST2600 BMC controller
-
Resolution
1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp
Expansion
-
Expansion
7 x PCIe Gen5 x16 slots
Slot 1, PCIe 5.0 x16 from 2nd CPU
Slot 2, PCIe 5.0 x16 from 1st CPU
Slot 3, PCIe 5.0 x16 from 2nd CPU
Slot 4, PCIe 5.0 x16 from 1st CPU
Slot 5, PCIe 5.0 x16 from 2nd CPU
Slot 6, PCIe 5.0 x16 from 1st CPU
Slot 7, PCIe 5.0 x16 from 2nd CPU (Slot 7 is the slot closest to CPU)
Storage
-
M.2
1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
I/O
-
USB
2 x Internal USB 3.2 Gen1 ports
2 x Internal USB 2.0 type A receptacle
2 x Internal USB 2.0 ports -
SATA
5 x SATA III (Note:SATA 1~4 support RAID 0,1,5,10)
(1 x Mini-SAS HD 4i (from PCH for 4 xSATA or 1 x4 NVMe interface)
& 1 x 7pin SATA connector) -
Serial
1 x Internal RS232 port
-
Other
3 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU)
-
CMOS Battery
1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Ethernet
-
LAN Chipset
1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports -
LAN Port
5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE
Mechanical & Environmental
-
Operating Temp.
0 ~ 50°C (32 ~ 122°F)to support up to 250W TDP CPU
0 ~ 40°C (32 ~ 104°F)to support up to 270W TDP CPU -
Storage Temp.
-40 ~ 85°C
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Weight
2.2KG
-
Power Connector
1 x Std. 24 Pin ATX connector
3 x 8 Pin SSI 12V connectors -
Dimension (L x W)
12” x 16.452” (304.8mm x417.88mm), PCB thickness is 2.86mm
Software Support
-
OS
Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server 2019
Windows Server 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later
Ordering Information
-
Ordering Information
HPM-ERSDEA-A1R
EATX 1xLGA4677 Intel 4th/5th Gen.C741/X550
12xDDR5/7xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
HPM-ERSDEL-A1R
EATX 1xLGA4677 Intel 4th/5th Gen.C741
12xDDR5/7xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
