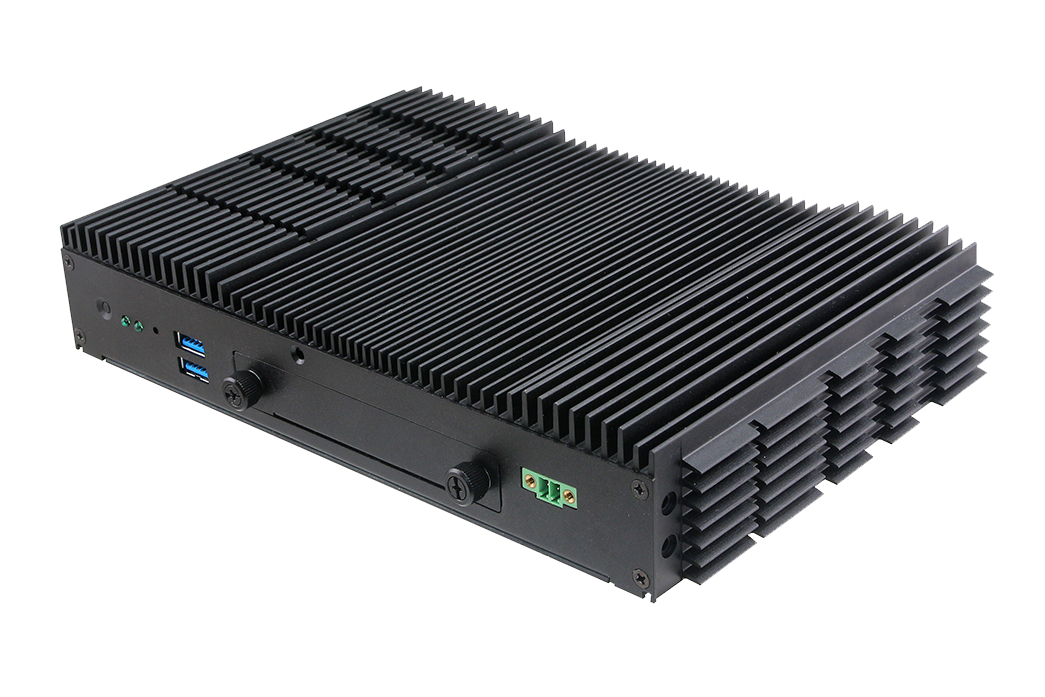

EMS-SKLU
6th Gen Intel®Core™ Processor i7/i5/i3/Celeron Fanless Rugged Embedded System
- 6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
- One 260-pin SODIMM Socket Up to 16GB DDR4 2133MHz SDRAM
- 1xDP,2xLAN,1xCOM1,4xUSB 3.0,1xMulti-Function Port (1xGPIO,1xCOM2,1xAudio,1xSMBus,2xPS2)
- Expansion Slot Supports 1 Mini PCIe Slot, 1 M.2, 1 IET Interface
- Front Access Swappable 2.5" Drive Bay, 2 SIM Card
- Rugged Design for Vibration & Shock Protection
- Fanless Operating from -20 ~ 60°C, Support IP50
- Power Input: Typical 12/24 Vdc ( +9~ 32V )
- Supports Intel® iAMT 11.0, TPM2.0 , Turbo Boost Technology, vPro, Wake on LAN, RAID 0/1
- Service Window, Easy to Install M.2, Memory and Mini PCIe Module
規格
System Information
-
Processor
Intel® Core™ i7-6600U, 2-Core, 2.6GHz processor
Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor
Intel® Core™ i3-6100U, 2-Core, 2.3GHz processor
Intel® Celeron® 3955U, 2-Core, 2.0GHz processor -
System Memory
1 x 16GB DDR4 SDRAM
-
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
-
H/W Status Monitor
Monitoring CPU & System Temperature and Voltage
-
SBC
EBM-SKLUS
Expansion
-
M.2
1 x M.2 (2242/3042) B-Key, supports SATA/ PCIex1/ USB3.0
-
PCIe
1 x Mini PCIe, supports PCIex1/USB2.0
-
IET
1 x Avalue 80-Pin IET Interface
Storage
-
M.2
1 x M.2 (SATA)
-
2.5 Drive Bay
1 x 2.5" Drive Bay
Front I/O
-
USB
2 x USB 3.0
Rear I/O
-
USB
2 x USB 3.0
-
COM Port
2 x RS-232/422/485 (Jumper), supports auto-flow
-
LAN Port
2 x RJ-45
-
SMBus
1 x SMBus
-
Audio
Mic-In, Line-In and Line-Out
-
Digital I/O
1 x 12bit GPIO
-
SIM Slot
2 x SIM Card Slot
-
Antenna
2 x Knockouts for Antenna Mounting
-
AC/DC Input
3-Pin Terminal Block
Display
-
Graphic Chipset
Intel® Skylake SoC integrated Graphics
-
Resolution
DP: Max. resolution 4096x2304 @ 60Hz
Audio
-
Audio Codec
Realtek ALC888S
supports 2.1-CH
Ethernet
-
LAN Chipset
1 x Intel® I211AT
1 x Intel® I219LM -
Specification
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
ACPI
Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant -
Power Mode
AT/ATX (ATX is default setting)
-
Adapter
Optional AC-DC Adapter
Mechanical & Environmental
-
Operating Temp.
(w/SSD), ambient w/ air flow
-20°C ~ 60°C (-4°F ~ 140°F) -
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Dimension (W x L x H)
9.45" x 5.96" x 1.77" (240mm x 151.5mm x 45mm)
-
Weight
1.5kg (system)
2.4kg (w/ package) -
Vibration Test
With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
-
Shock Test
With SSD : 50Grms, IEC 60068-2-27, Half Sine, 11ms
-
Mounting Kit
Wall Mount kit (Standard)
Ordering Information
-
Ordering Information
Intel® 6th Skylake Core™ Processor i7/i5/i3/Celeron Fanless Rugged Embedded System
EMS-SKLU-66-B1-9R (i7-6600U)
EMS-SKLU-63-B1-9R (i5-6300U)
EMS-SKLU-61-B1-9R (i3-6100U)
EMS-SKLU-39-B1-9R (3955U)
