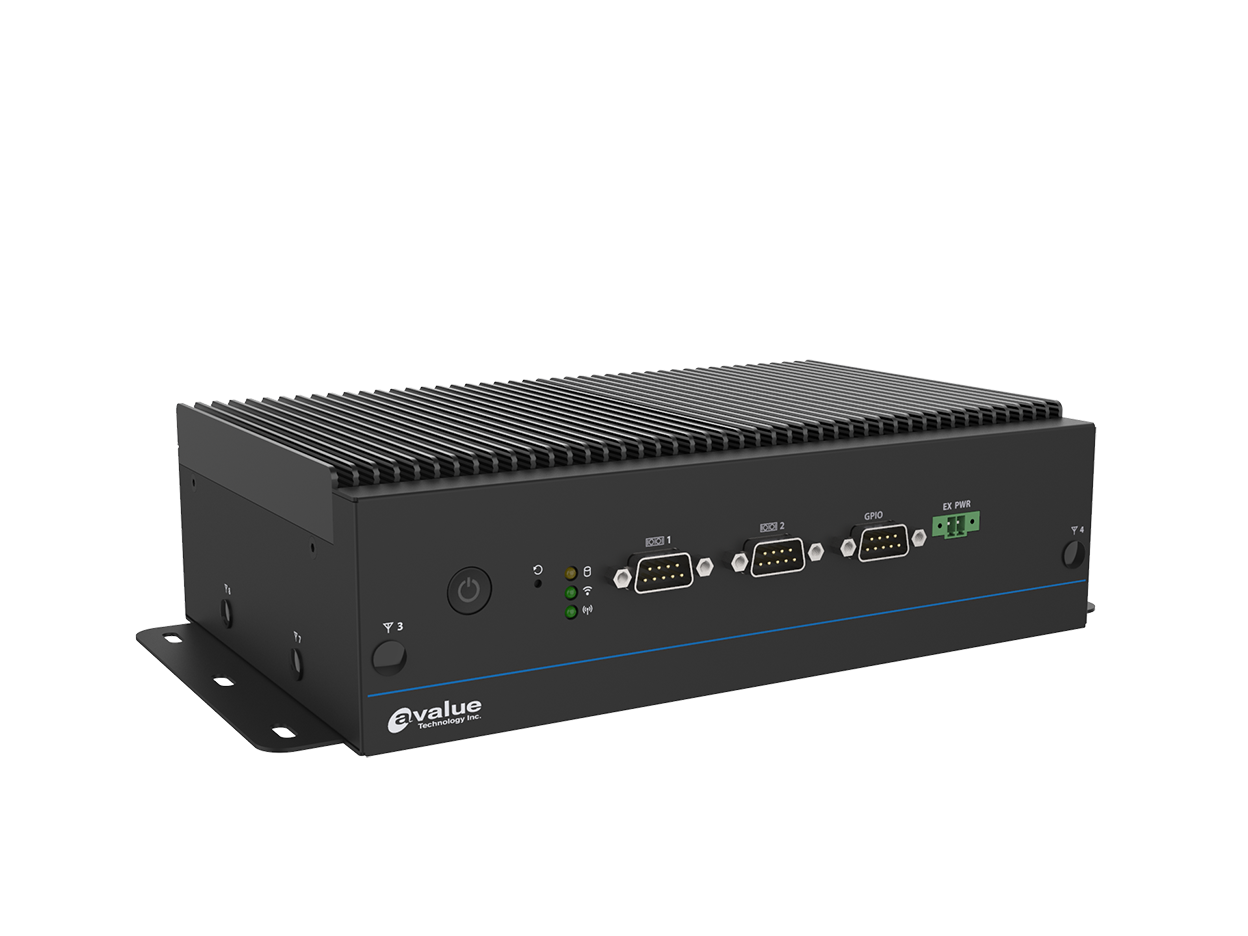

EMS-EHL-DVI
Intel® Elkhart Lake Atom®/Celeron® Processor Fanless Rugged Embedded System, w_DVI IET Module
- Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
- 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MT/s
- Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 1-DVI-D, 2-COM, 2-LAN, 1-8bit GPIO
- Support 5G (Sub-6G) module, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
- Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 65°C (ST)
- CE, FCC Class B, LVD 62368-1, IP50
- Wide range DC power input from +9~36V
- Support HW TPM 2.0
- Support IET modules
規格
System Information
-
Processor
Intel® Celeron® Processor J6413 (1.5M Cache, up to 3.00Ghz), ST, Tj=105°C
Intel® Atom® Processor x6425E(1.5M Cache, up to 3.00Ghz), WT, Tj=-40°C ~105°C -
System Memory
1 x 260-pin SODIMM socket Max. Up to 32GB DDR4 3200 MT/s
-
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
-
H/W Status Monitor
CPU & system temperature monitoring and Voltages monitoring
-
TPM
TPM 2.0
-
SBC
EBM-EHLS
Expansion
-
M.2
1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V
1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)
Storage
-
M.2
1 x M.2 Key-B 2242/2280, support SATA
1 x M.2 Key-B 2242, support SATA (share with expansion slot)
Front I/O
-
Power Button
1 x Push Button for Power on/off
-
Reset Button
1 x Push Button for Reset
-
LED Indicator
1 x Power LED (Blue)
1 x Storage LED (Yellow)- M.2 B-key SATA
1 x LTE LED (Green)- M.2 B-key PCIe
1 x Wifi LED (Green)- M.2 E key -
COM Port
2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)
-
Digital I/O
1 x 8-bit GPIO (DB9)
-
Wire-Control Power On/Off
1 x 2-Pin Terminal Block for wire-control power on/off
-
Antenna
2 x Antenna with dust cover
Rear I/O
-
USB
2 x USB 3.2 Gen.2 (10Gbp/s)
2 x USB 3.2 Gen.1 (5Gbp/s)
2 x USB 2.0 -
LAN Port
2 x RJ45
-
Audio
1 x Mic-In
1 x Line-Out -
DP
1 x DP++
-
HDMI
1 x HDMI
-
DVI
1x DVI-D
-
Antenna
2 x Antenna with dust cover
-
AC/DC Input
1 x 3-Pin Terminal Block (V+. V-, GND)
Right I/O
-
Antenna
2 x Antenna with dust cover
Left I/O
-
Antenna
2 x Antenna with dust cover
Display
-
Graphic Chipset
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Resolution
DP++ : Max. resolution 4096x2304 @ 60Hz
HDMI : Max. resolution 4096x2304 @ 60Hz
DVI-D : Max. resolution 2560×1600 @ 60Hz
Audio
-
Audio Codec
Realtek ALC888S (co-lay with ALC897) HD codec
Ethernet
-
LAN Chipset
2 x Intel I226-IT
-
Specification
2 x 10/100/1000/2.5G Base-Tx GbE compatible
Power Requirement
-
Voltage Input Spec.
DC in 12/24V (+9V ~ +36V), wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection (Max. Currency: 13A) -
Voltage Input Connector
3-Pin Terminal Block (V+. V-, GND)
-
ACPI
Single power ATX Support S0,S3, S4, S5
ACPI 5.0 Compliant -
Power Mode
AT/ATX (ATX is default setting)
Software Support
-
OS
Win 10 64bit / Win 11 64 bit/ Linux
Certification
-
Certification Information
CE, FCC Class B, LVD 62368-1
Mechanical & Environmental
-
Operating Temp.
-40°C ~ 70°C (w/SSD) ambient w/ 0.5 air flow, WT sku, x6425E
0°C ~ 65°C (w/SSD) ambient w/ 0.5 air flow, ST sku, J6413 -
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Dimension (W x L x H)
240mm x 150mm x 64 mm (w/ IET module)
-
Weight
1.9 kg (System)
2.7 kg (w_Package) -
Vibration Test
With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis
-
Shock Test
With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms
-
IP Rating
IP 50
-
Mounting Kit
Wall mount kit (standard)
DIN RAIL (optional)
Ordering Information
-
Ordering Information
Intel® Elkhart Lake Atom®/Celeron® Processor Fanless Rugged Embedded System, w_DVI IET Module
EMS-EHL-J64-A1-7R (J6413)
EMS-EHL-X64-A1-7R (x6425E)
