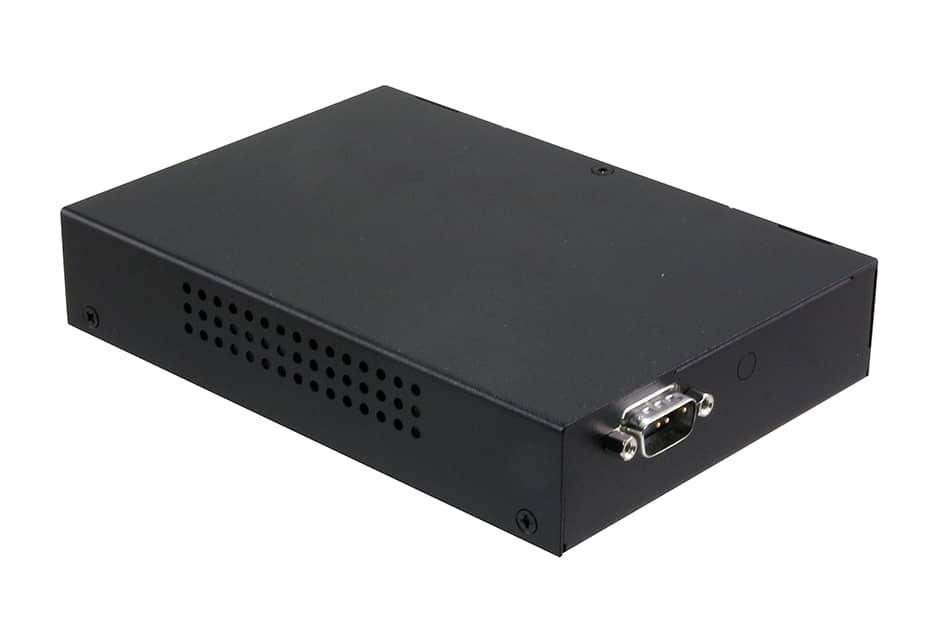

AIB-IMX6
BOX System with NXP i.MX6
- NXP i.MX6 Cortex-A9 Dual Lite/Quad 1GHz CPU
- 1GB DDR3
- 4GB eMMC
- -20°C ~ 70°C (-4°F ~ 158°F)
- CE, FCC Class B
規格
System Information
-
Processor
NXP i.MX6 Cortex-A9 Dual Lite/ Quad 1GHz CPU
-
Platform Controller Hub
i.MX6
-
System Memory
1GB DDR3
-
SBC
RSC-IMX61
Storage
-
eMMC
4GB eMMC
External I/O Connector
-
External I/O Connector
1 x 10/100/1000 RJ45 Powered LAN
1 x USB 2.0 Type A
1 x Jack for I/R extender cable, co-design (Optional)
with on board I/R sensor (Optional)
Power Requirement
-
Power Requirement
DC 12~26V
Software Support
-
OS
Android 4.4 or 6.0
Yocto 2.1
Certification
-
Certification Information
CE, FCC Class B
Mechanical & Environmental
-
Operating Temp.
-20°C ~ 70°C (-4°F ~ 158°F)
-
Storage Temp.
-40°C ~ 70°C (-40°F ~ 158°F)
-
Dimension (W x L x H)
153 mm x 107.8 mm x 30 mm
-
Weight
1.5 kg
Ordering Information
-
Ordering Information
AIB-IMX6LB-A1R-00 : AIB-IMX6LB-A1R-00
