SPC-1509

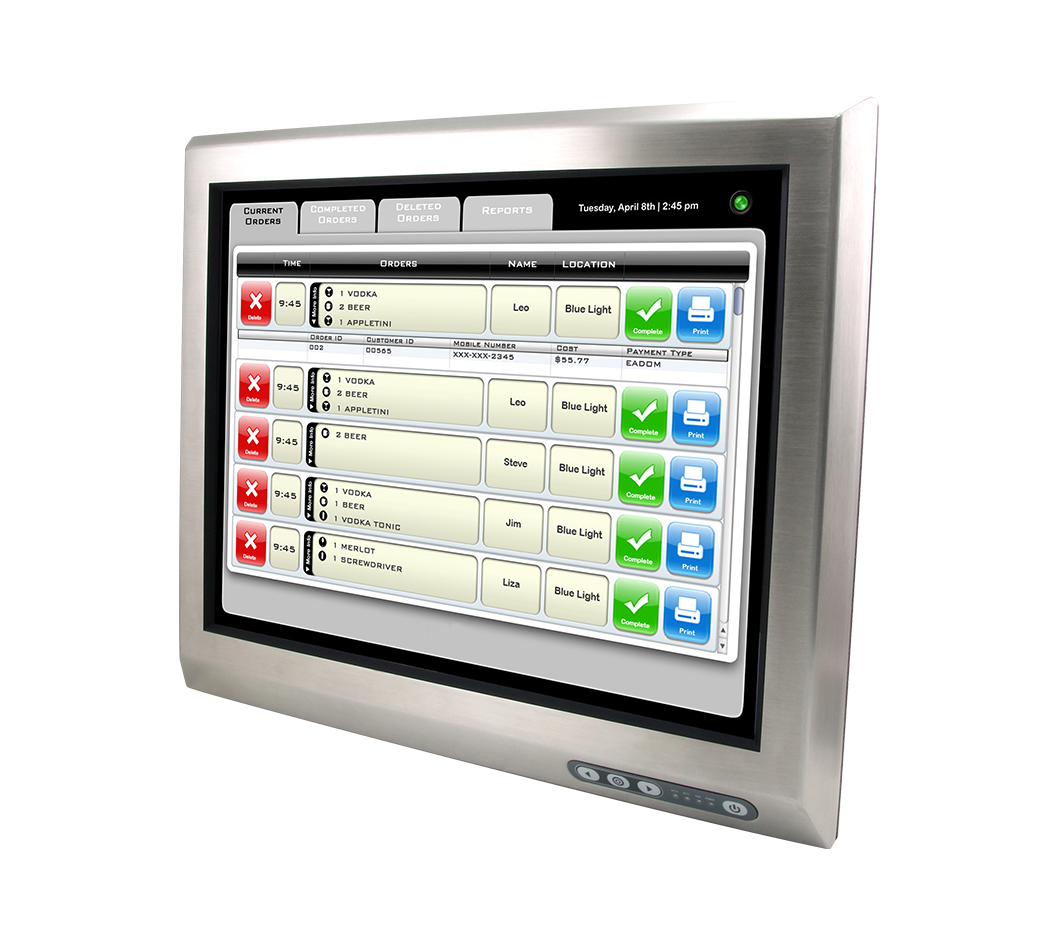

15" Intel Atom® E3845/Celeron® J1900 Processors Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
- Intel Atom® E3845/Celeron® J1900 Processors
- One 204-pin DDR3L SODIMM socket supports up to 8GB DDR3L 1333 SDRAM
- 1 LAN, 3 USB, 1 COM
- Dual Intel I210IT Gigabit LAN
- Wide voltage +12V ~ +26V input, ErP power
- Backlight controlled by PWM
- Full system IP65
- Timer-power-on
規格
System Information
-
Processor
Intel Atom® E3845/Celeron® J1900 Processors
Intel Atom® Processor E3845, 2M Cache, 1.91 GHz
Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz -
System Memory
1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB
-
I/O Chipset
EC ITE IT8528E
-
Watchdog Timer
H/W reset, 1sec. ~ 65535sec./1sec.step
-
H/W Status Monitor
Monitoring CPU & system temperature and voltage
-
SBC
EBM-BYT
-
CPU Cooler (Type)
Fanless heatsink
Expansion
-
Expansion
1 x Mini PCIe support mSATA
1 x Mini PCIe support SIM card
Storage
-
Storage
1 x CompactFlash type I/II socket
1 x 2.5 dirve bay
Display
-
Graphic Chipset
Intel® Valleyview SoC integrated graphics
supports dual display -
Spec. & Resolution
HDMI: Max. Resolution 1920x1200@ 60Hz
Audio
-
Audio Codec
Realtek ALC888S
-
Audio Interface
Line-out
-
Speaker Output
2 x 5W
Ethernet
-
LAN Chipset
1 x Intel® I210IT
-
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V ~ +26V
-
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
-
OS
Win 7 / Win 8 / Linux
Certification
-
Certification Information
CE / FCC Class A
Panel
-
LCD Size
15", 4:3
-
Display Type
XGA
-
Resolution
1024 x 768
-
Pixel pitch
0.297mm(H) x 0.297mm(V)
-
Luminance
500 cd/m2
-
Contrast ratio
2500
-
Viewing angle
88 (U), 88 (D), 88 (L), 88 (R)
-
Response time
16 ms
-
Backlight
LED
-
Touch Type
5 wires resistive
-
Touch Light Transmission
80%
-
Touch Controller
Onboard USB touch (EETI)
External I/O
-
USB Port
3 x USB 2.0
-
LAN Port
2 x RJ-45
-
COM Port
1 x RS-232
Internal I/O
-
SATA
1 x SATA II
System Control
-
LED Indicator
HDD LED, power LED
Data Communication
-
WLAN
Optional WIFI module 802.11 ac/a/b/g/n/
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
20% ~ 80% Relative humidity, non-condensing
-
Dimension (W x L x H)
371 x 308 x59mm
-
Weight
6.42 Kg
-
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
-
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
-
IP Rating
Whole system IP65
-
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
-
Power Mode
AT/ATX (ATX is default)
-
System Fan
Fanless
-
Construction - Front
Stainless steel
-
Construction - Rear
Stainless steel
Component
-
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter AC-DC adapter
Ordering Information
-
Ordering Information
SPC-1509-384-A4R
15" XGA Waterproof Stainless Panel PC with Intel® Atom Quad-Core E3845 1.91GHz D1-CPU/4GR/32GSSD/1LAN/1COM/3USB/True Flat Rear Case/No Speakers
SPC-1509-190-A5R
15" XGA Waterproof Stainless Panel PC with Intel® J1900 2.00 GHz D1-CPU/4GR/32GSSD/1LAN/2USB/True Flat Rear Case/No Speakers
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D23R
VESA STAND, 75mm & 100 mm
ACC-SPC-WIFI-1R
Wifi Kits for SPC-15/17/22 802.11b/g/n MPCIe/2Antenna/Cable
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
