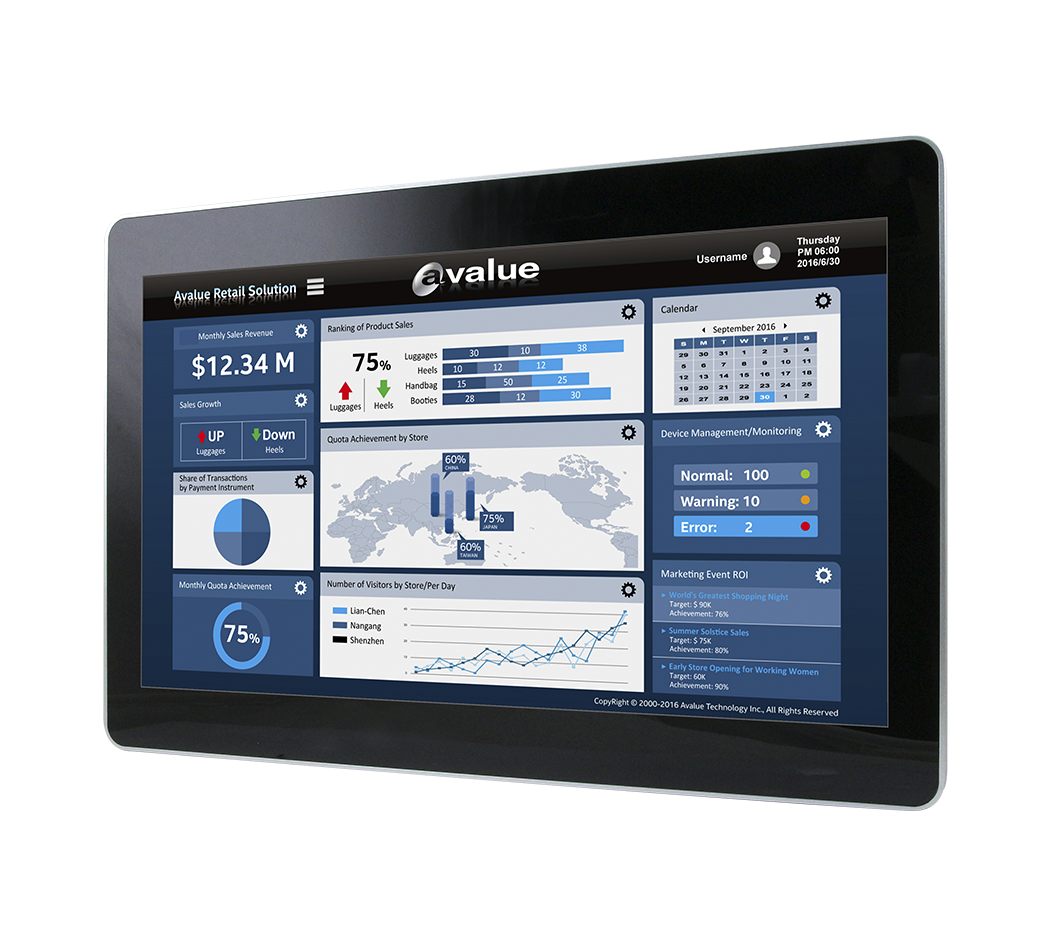

SID-15WAD
規格
System Information
-
Processor
Intel® Processor N50, 6M Cache, up to 3.4 GHz
-
System Memory
8GB LPDDR5
-
CPU Cooler (Type)
Fanless
Storage
-
Storage
64GB eMMC
Audio
-
Speaker Output
Optional 2 x 4Ω 2.0W
Ethernet
-
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V
-
DC Input Connector
Lockable DC Jack
Software Support
-
OS
Windows 10/11, ubuntu 24.04
Certification
-
Certification Information
CE, FCC Class B
Panel
-
LCD Size
15.6"
-
Resolution
1920 x 1280
-
Luminance
250 cd/n2
-
Viewing angle
85 (U), 85 (D), 85 (L), 85 (R)
-
Touch Type
PCAP
External I/O
-
USB Port
2 x USB 3.0 Type A
-
Audio Port
1 x Audio Jack TRS
-
LAN Port
1 x RJ45
-
DC input
1 x DC Jack
-
Other
1 x Power button w/ LED
Wireless Communication
-
WLAN
Wi-Fi 802.11a/b/g/n/ac/ax
-
Bluetooth
Optional BT 5.2
DC In / Out Characteristics
-
Input Voltage Range
DC +12 V
-
Power Type
AT
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Dimension (W x L x H)
384 x 258 x 39 mm
-
Weight
2.8 kg
-
IP Rating
Front IP65
-
VESA
100 X 100
