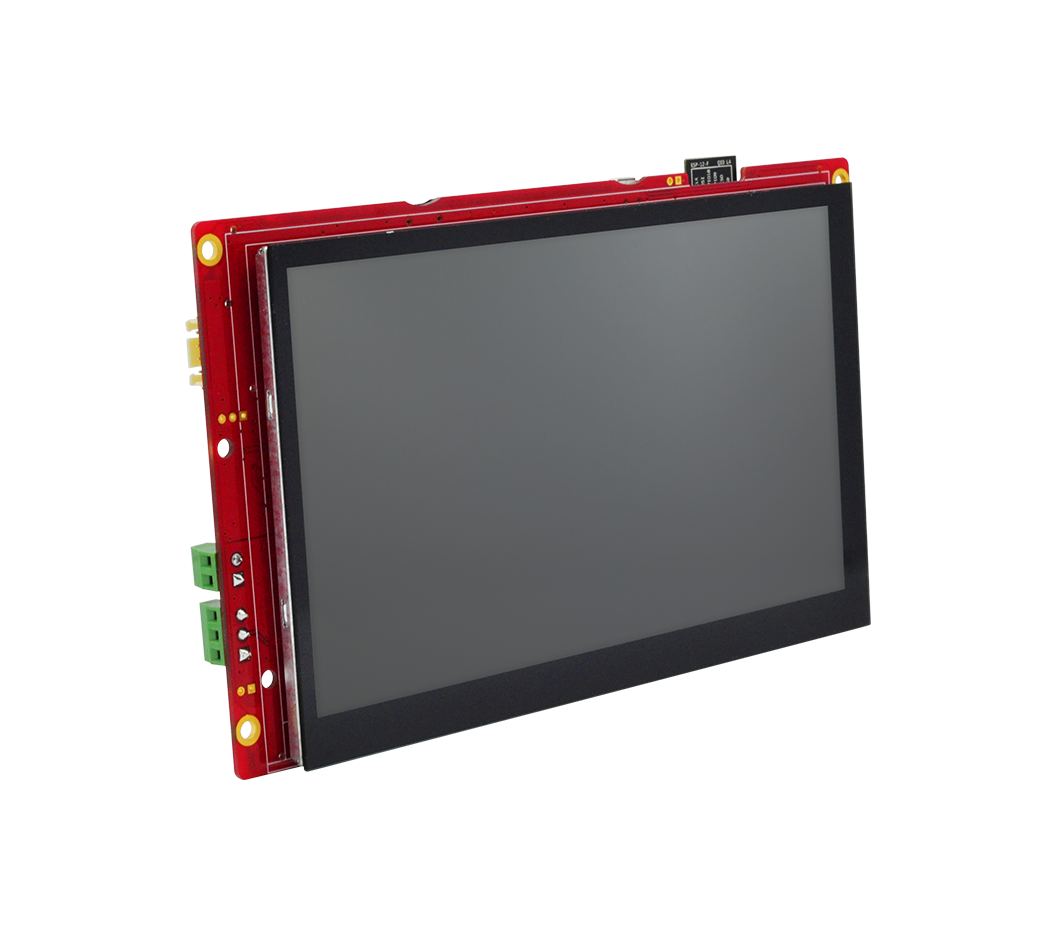

FTC-07WN

Flex Touch Console for HMI application (Preliminary Specification)

匯出PDF文件

產品功能
  • MCU:STM32H7
  • Resolution:800x480,24-bit
  • Support Wi-Fi,RS-485,CAN Bus, RJ45
  • Operating Temperature:-15~65°C (-5~181°F)
  • No code or less code (Python) development support
  • Free download Integrated development environment(IDE)

規格

Specification

  • MCU

    STM32H7

  • MCU

    STM32H7

  • System Memory

    2Gb (256MB)

  • Touch Panel

    Capacitive TP

  • Edge I/O

    1 x Micro SD slot
    1 x Micro USB ( use for OTG )
    1 x RS485
    1 x WIFI
    1 x CAN Bus
    1 x RJ45

  • Resolution

    800 x 480

  • Power Requirement

    DC 12~24V

  • Power Mode

    AT

  • Operating Temperature

    -15~65°C (-5~181°F)

  • Storage Temperature

    -30~80°C (-22~176°F)

  • Dimension

    184.1 x 106.85mm (TBD)

  • Weight

    0.29 kg

動態結構圖

系統尺寸

機械圖紙

輸入/輸出
