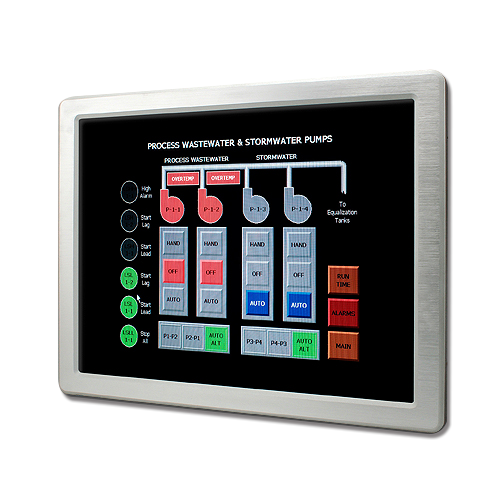

LPC-1511
15" 兆芯C+系列处理器VX11PH南桥无风扇强固型平板电脑
- 板载兆芯ZX-C+系列处理器 (CPU最高到18W)
- 1个204针DDR3 1333MHz SO-DIMM 插槽, 最高可以支持 8G内存
- 1个HDMI, 1个双通道18/24位LVDS/HDMI (默认LVDS)
- 4个USB3.0，4个RS-232，2个RS-232/422/485
- 2个英特尔® i210-AT千兆网口
- 1个声音输出接口，1个声音输入接口
- 1个全尺寸Mini-PCIe (支持 mSATA/PCI-e x1/USB 2.0 Signal/SIM信号)
- 1个 M.2 Type A 2230 support WiFi module (1 x PCI-e x 1 & USB 2.0 Signal)
- 1个2.5寸硬盘固定位置
- DC输入12~24V (DC Jack)
规格
System Information
-
Processor
板载ZX C4580@1.8GHz(2M 缓存，四核四线程)
板载ZX C4701@2.0GHz(2M 缓存，四核四线程) -
Platform Controller Hub
VX11PH (南桥 TDP 8.8W)
VX11H (南桥 TDP 5.8W) -
System Memory
1根204针DDR3 SO-DIMM 插槽，最高扩展8GB
-
I/O Chipset
IT8528
-
BIOS
AMI uEFI BIOS 64Mbit SPI Flash ROM
-
Watchdog Timer
H/W 复位, 1sec. – 65535sec./min.1sec. or 1min. step
-
H/W Status Monitor
CPU温度监控
电压监控 -
Board
EMX-VX11P
Expansion
-
Expansion
1个全尺寸Mini-PCIe (支持mSATA/PCIe x1/USB2.0/SIM)
1个2230尺寸TYPE A的M.2 (支持PCIe x1/USB2.0)
Storage
-
Storage
1 x mSATA
1 x 2.5" 硬盘
Panel
-
LCD Size
15", 4:3
-
Display Type
XGA
-
Resolution
1024 x 768
-
Pixel pitch
0.297mm(H) x 0.297mm(V)
-
Luminance
600 cd/m²
-
Contrast ratio
700
-
Viewing angle
70 (上), 70 (下), 80 (左), 80 (右)
-
Response time
16 ms
-
Backlight
LED
-
Touch Type
5 线电阻
-
Touch Light Transmission
80%
-
Touch Controller
USB触摸
I/O
-
USB
3 x USB 3.0
1 x USB 2.0 -
COM Port
1个RS-232/422/485
5个RS-232 -
GPIO
1 x 16-bits GPIO
-
SATA
1 x SATA II
1 x SATA 电源
Display
-
Graphic Chipset
VX11PH or VX11H Graphics
-
Spec. & Resolution
1 x HDMI: 2K 2560 x 1440
1 x VGA: 2048 x 1536 @ 60Hz -
Multiple Display
VGA + HDMI
-
LVDS
1个双通道18/24位LVDS
Audio
-
Audio Codec
瑞昱 ALC662 高清音频解码控制器
-
Audio Interface
1个声音输出接口，1个声音输入接口
-
Speaker Output
2 x 3W扬声器
Ethernet
-
LAN Chipset
2个英特尔® i210-AT千兆网口
-
Ethernet Interface
兼容10/100/1000 Base-Tx 千兆以太网
-
LAN Port
2 x RJ45
Power Requirement
-
DC Input
DC in +12V~24V
-
DC Input Connector
DC Jack (带锁扣)
-
Power Mode
AT / ATX
-
Adapter
输入: 100 ~ 240Vac/ 50 ~ 60Hz
输出: 60W 适配器 (12V @ 5A)
Mechanical & Environmental
-
Operating Temperature
0~60°C (32~140°F), 空气流量为0.5 m/s
-
Storage Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
-
Operating Humidity
40°C @ 95% 相对湿度, 无凝结
-
Dimension (W x L x H)
350 x 273.9 x 53.1 mm
-
VESA
VESA 75mm x 75mm/100mm x 100mm
Software Support
-
OS
Win7, Win10, Neokylin 7.0 64bit
Ordering Information
-
Ordering Information
LPC-1511-458-A1C
LPC-1511 w/ZXC-4580/6C/4U/2L/Barebone
