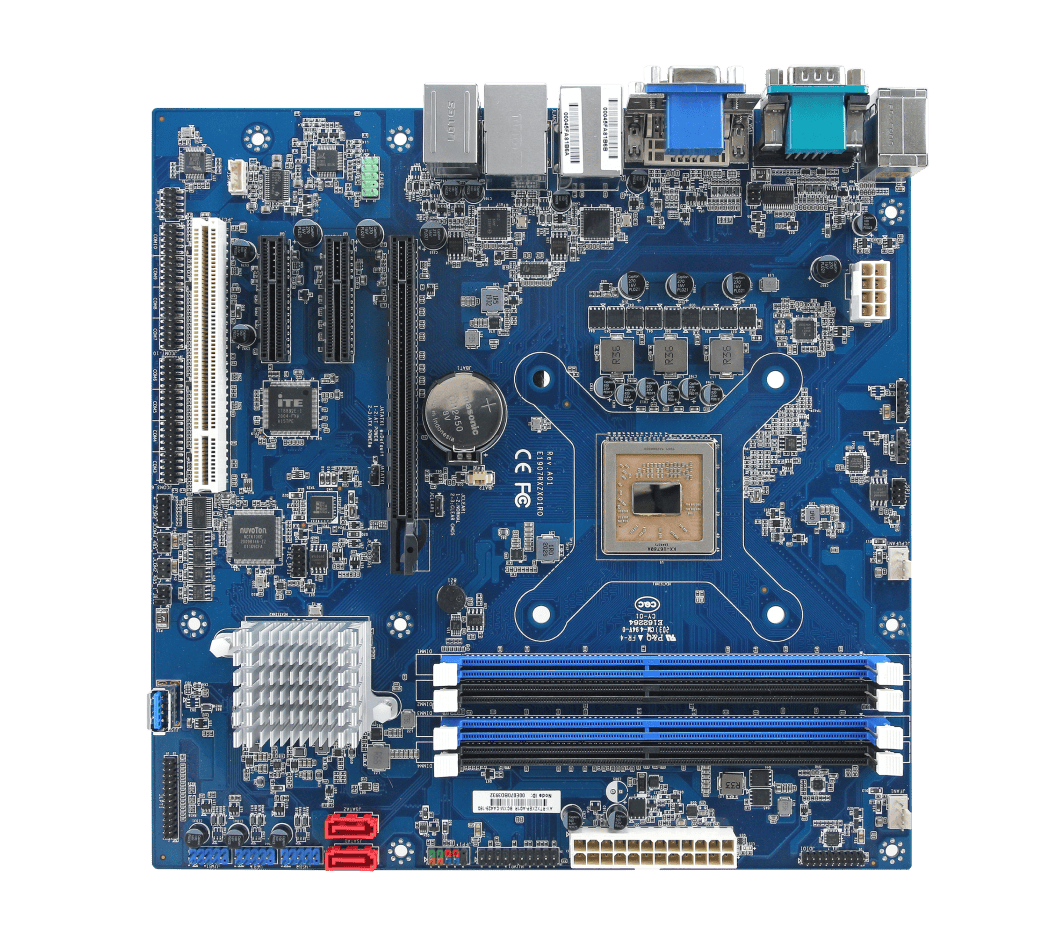

ERX-ZXEP
板载兆芯KX-U6780A，8核CPU ，Micro ATX主板， ZX200芯片组
- 板载兆芯 KX-U6780A,8核CPU,Micro ATX主板
- ZX200芯片组
- 4个288针DDR4 2400/2666MHz U-DIMM插槽，最高可以支持64G内存
- VGA, HDMI, DVI-D
- 2 x I210AT co-lay I211AT PCI-e千兆以太网
- 2 x SATA III
- 1 x PCI-e x16 slot for 1 x PCI-e x 8 signal, 2 x PCI-e x 4, 1 x PCI
- 6 x USB 2.0 by pin header, 1x USB 3.1 Gen 1 , 2 x USB 3.1 Gen2, 4 x USB 3.1 Gen 1, 4 x USB2.0 at I/O
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 Type B 3042/2242/2260/2280 (具有 USB2.0, USB 3.0, SATA 信号)
- 线路输入，麦克风输入，线路输出通过插针头, 16位GPIO
- 1 x PS2 键盘/鼠标, 中国加密
- ATX 电源
规格
System Information
-
Processor
兆芯 KX-6780A 2.7GHz
-
Platform Controller Hub
ZX200 芯片组
-
System Memory
4个288针DDR4 2400/2666MHz U-DIMM 插槽，最高可以支持64G内存
-
I/O Chipset
Nuvoton® NCT6106D
-
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
-
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec
-
H/W Status Monitor
CPU温度监控
电压监测
CPU风扇速度控制 -
TPM
Nationz Z32H330TC-SQN-611, TCM chip
-
Board
板载ATX 主板
Expansion
-
Expansion
1 x PCI-e x16卡槽用于1 x PCI-e x 8 信号
2 x PCI-e x 4
1 x PCI
I/O
-
USB
6 x USB 2.0
1 x USB 3.1 Gen 1
2 x USB 3.1 Gen2, 4 x USB 3.1 Gen 1, 4 x USB2.0 at I/O -
COM Port
8 x RS232, 2 x RS232/422/485
-
SATA
2 x SATA III
-
DIO
1 x 16位 GPIO
-
MIO
1 x PS2 键盘/鼠标
Display
-
Spec. & Resolution
VGA: 2048 x 1536 @ 60Hz
DVI-D : DVI Single-Link：1920 x 1200 @ 60Hz
HDMI: 3840 x 2160 @ 30Hz, 2560 x 1600 @ 30Hz -
Multiple Display
三显
Audio
-
Audio Codec
瑞昱 ALC888S 高清音频解码控制器
-
Audio Interface
麦克风输入，插针头线路输出
-
Audio Amplifier
1 x 6W 放大器
Ethernet
-
LAN Chipset
2 x I211AT 千兆以太网
-
LAN Port
2 x RJ-45
Mechanical & Environmental
-
Operating Temperature
0~60°C (32~140°F)
-
Storage Temperature
-40 ~ 75°C
-
Operating Humidity
40°C @ 95% 相对湿度，无凝结
-
Weight
0.60 公斤
-
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
-
ACPI
单电源ATX支持 S0, S3, S4, S5
-
Power Mode
AT/ATX
-
Dimension (L x W)
9.6" x 9.6" (243.84mm x 243.84mm)
Ordering Information
-
Ordering Information
ERX-ZXEP-B1-1R
Onboard Zhaoxin KX-6780A 8 cores BGA CPU Micro ATX Motherboard with ZX200 Chipset
