ARC-1732

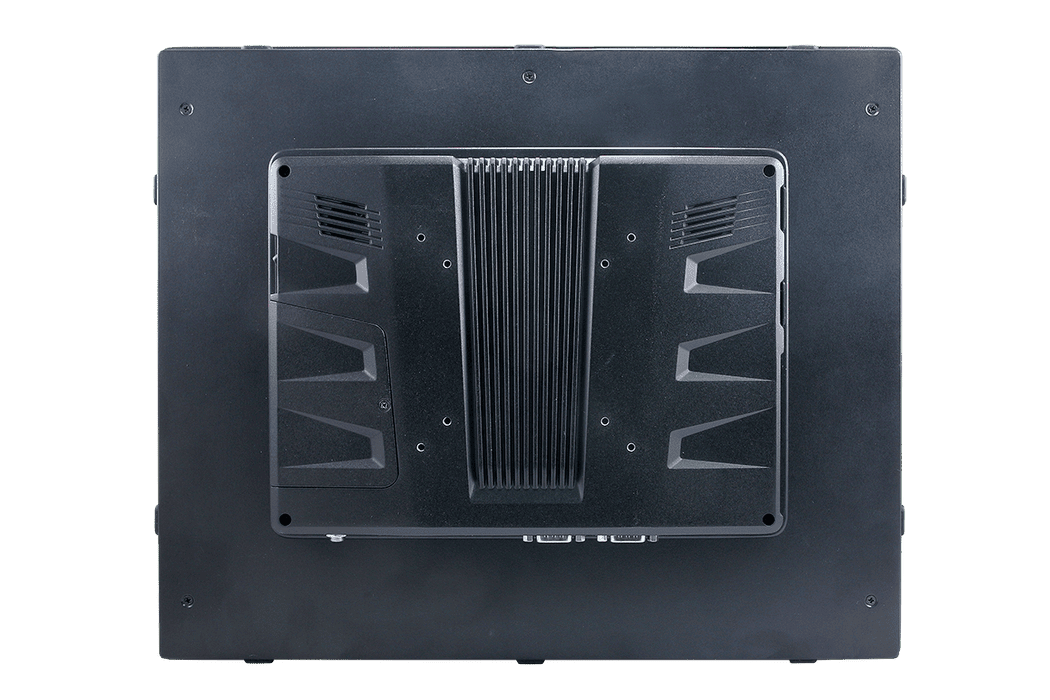

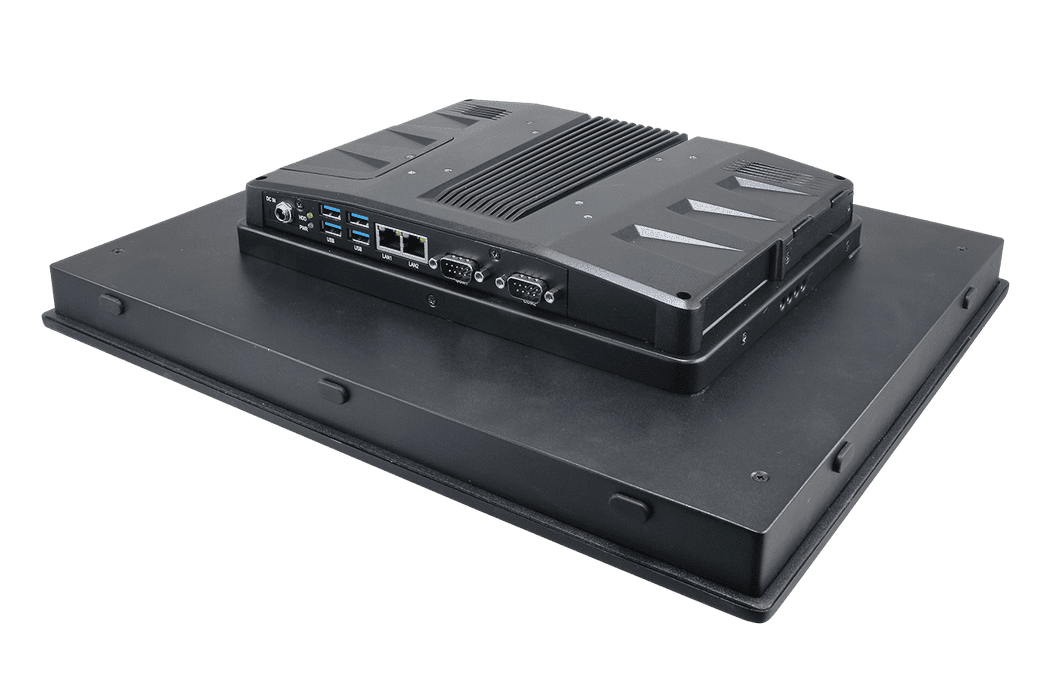

17" 6th Generation Intel® Core™ i5 Processor Fanless Rugged Touch Panel PC with IET Expansion
- 6th Generation Intel® Core™ i5 Processor

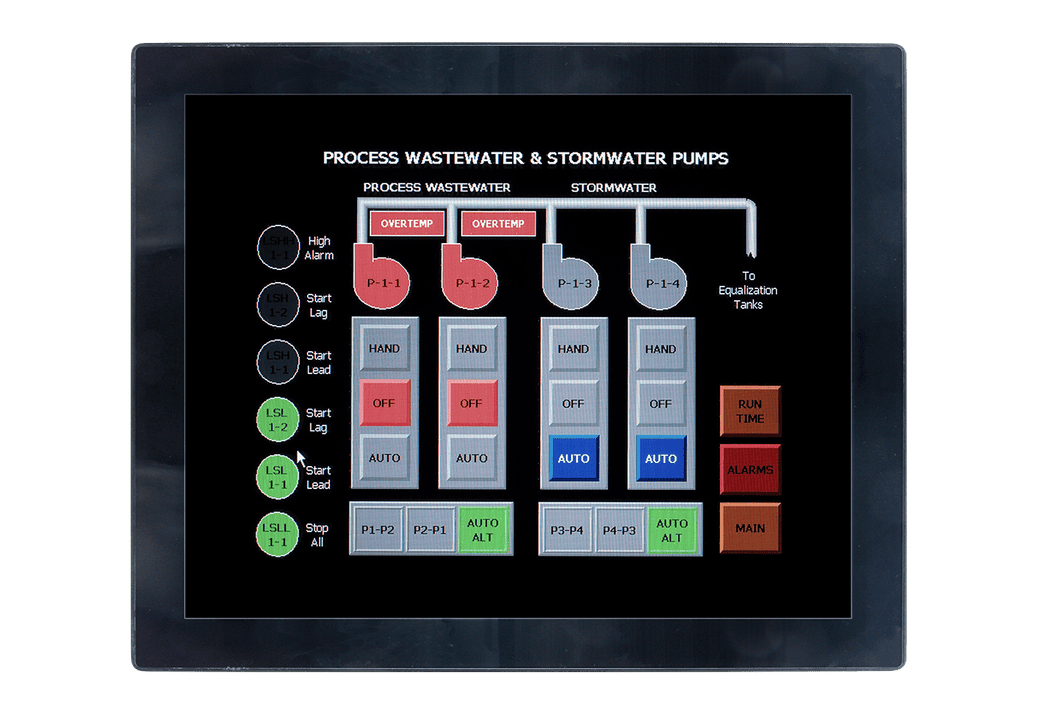

- Full flat front panel with projected capacitive touch supports multi touch
- One SODIMM sockets supports up to 16GB DDR4 2133 SDRAM
- 4 USB3.0, 2 COM
- Dual Intel Gigabit LAN
- Wide voltage +12V ~ +26V input, ErP power
- Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
- IP65 compliant front panel, IP41 rear box
- With panel mount kits included
- TPM 1.2 function (optional)
製品仕様
System Information
-
Processor
Intel® Core™ i5-6300U Processor, 3M Cache, up to 2.4 GHz
-
System Memory
1 x 260-pin DDR4 2133MHz SO-DIMM up to 16 GB
-
I/O Chipset
EC ITE IT8528E
-
Watchdog Timer
H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step
-
H/W Status Monitor
Monitoring CPU & system temperature and voltage
-
SBC
ARC-SKLU
-
CPU Cooler (Type)
Fanless heatsink
-
Other
3 x Knockouts for antenna mounting
Expansion
-
Expansion
1 x Mini PCIe support mSATA
1 x 80-pin IET interface
Storage
-
Storage
1 x 2.5 Drive bay(7mm HDD restricted)
Display
-
Graphic Chipset
Intel® Skylake SoC integrated graphics
supports optional dual display -
Spec. & Resolution
HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)
Audio
-
Audio Codec
Realtek ALC888S
-
Speaker Output
2 x 2W
Ethernet
-
LAN Chipset
1 x Intel® I210AT
1 x Intel® I219LM -
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
-
DC Input
+12V ~ +26V
-
DC Input Connector
Lockable DC Jack (default)
Optional for phoenix connector -
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
-
OS
Win 7/ Win10 / Linux
Certification
-
Certification Information
CE / FCC Class B
Panel
-
LCD Size
17"
-
Display Type
SXGA
-
Resolution
1280 x 1024
-
Pixel pitch
0.264mm(H) x 0.264mm(V)
-
Luminance
350 cd/m2
-
Contrast ratio
800
-
Viewing angle
60 (U), 80 (D), 80 (L), 80 (R)
-
Response time
30 ms
-
Backlight
TFT-LCD
-
Touch Type
Projective capacitive multi-touch up to 10 points
-
Touch Light Transmission
89%
-
Touch Controller
USB touch (EETI)

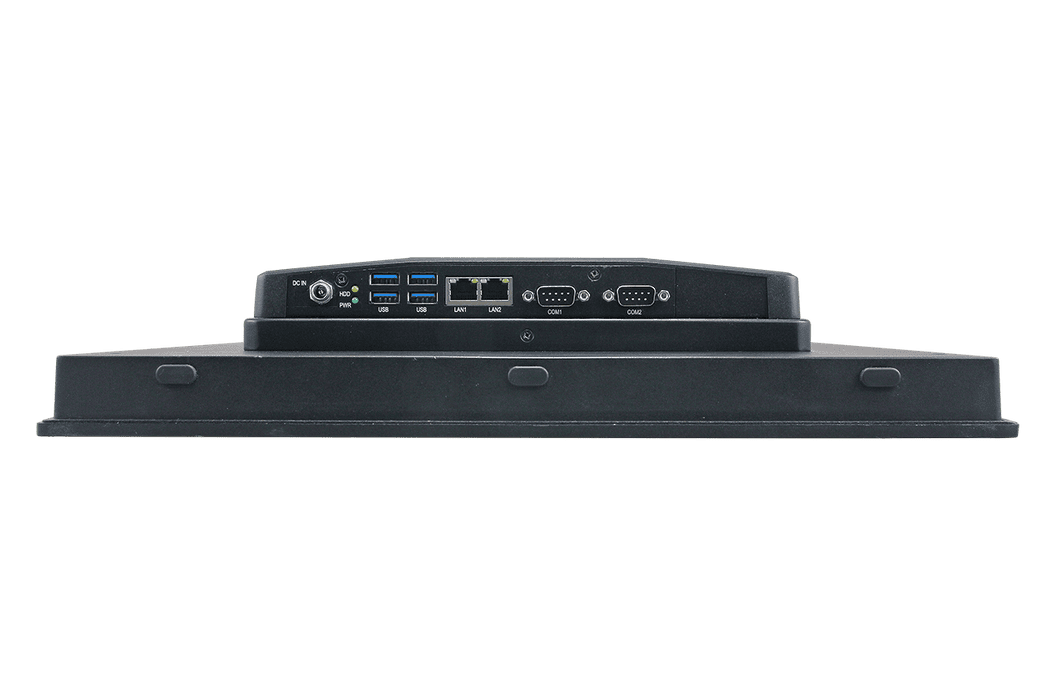

External I/O
-
USB Port
4 x USB 3.0
-
LAN Port
2 x RJ-45
-
COM Port
1 x RS-232/422/485
1 x RS-232
Internal I/O
-
SATA
1 x SATA III
System Control
-
LED Indicator
HDD LED, power LED
Mechanical & Environmental
-
Operating Temp.
-10°C ~ 50°C (14°F ~ 122°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
0% ~ 90% Relative humidity, non-condensing
-
Dimension (W x L x H)
392.5 x 325.1 x 59.5mm
-
Weight
5.2 Kg
-
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
-
Shock Test
Operating with SSD/CFast/mSATA : IEC 60068-2-27 testing procedures, functional shock=20G
-
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
-
IP Rating
Front panel IP65
Back cover IP41 -
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits -
Power Mode
AT/ATX (ATX is default)
-
System Fan
Fanless
-
Construction - Front
Die casting with cover lens
-
Construction - Rear
Black die casting
Component
-
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
Ordering Information
-
Ordering Information
ARC-1732-630-B3-1R
17" 1280x1024 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch
6th Gen Intel Core i5 6300U 2.4GHz CPU/2GLAN/2COM/4USB/SPK/12~26V input/12V Adapter
Optional IET Module list:
ACC-ARC-USB-1R
4 x USB 3.0 Kit for ARC Series
ACC-ARC-AUDIO-1R
HDMI + 5.1 CH Audio Kit for ARC Series
ACC-ARC-MPCIE-1R
HDMI + MPCIE w/SIM Kit for ARC Series
ACC-ARC-COM-1R
2 x Isolated RS-232 Kit for ARC Series
ACC-ARC-COM-2R
3 x RS-232 Kit for ARC Series
ACC-ARC-COM-3R
2 x RS-232 + USB Kit for ARC Series
ACC-ARC-COM-4R
2 x RS-232 + LAN Kit for ARC Series
ACC-ARC-GPIO-1R
12-bit GPIO + 2-pin CAN Bus Kit for ARC Series
ACC-ARC-OBDII-1R
OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)
ACC-ARC-OBDII-2R
OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)
ACC-ARC-OBDII-3R
OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
