How to flash Yocto 2.5 to RSC-IMX8M

Export PDF

Model Name

RSC-IMX8M

Purpose

Flash Yocto 2.5 image to RSC-IMX8M.

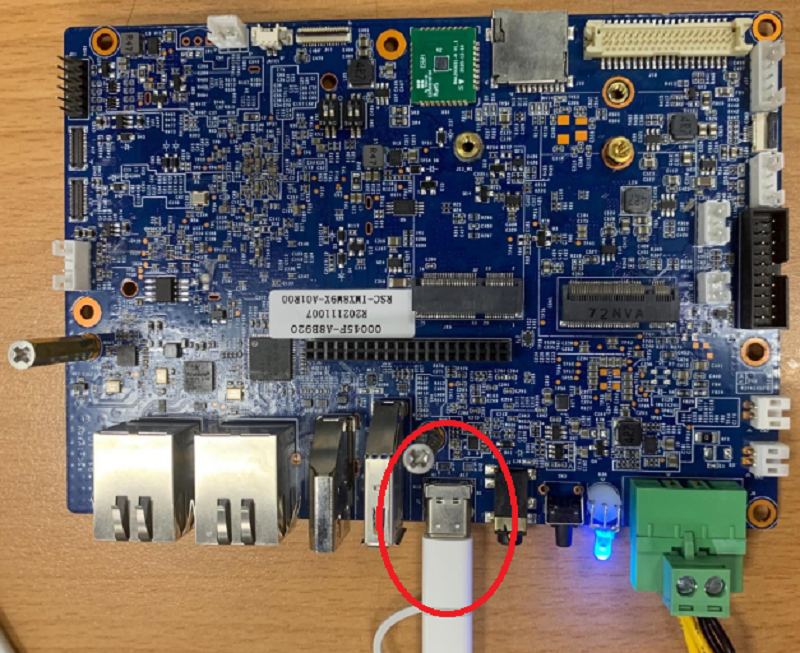

1. Connect one RSC-IMX8M to your desktop or notebook via type C USB cable.

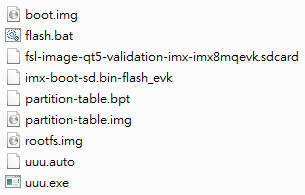

2. Download Yocto 2.5 image.

Please connect Avalue FAE to get download link.

Set the jumper to OTG mode(as red circle below) and SW1: Set to 01

3. Connect 12V power supplier to power on the device.

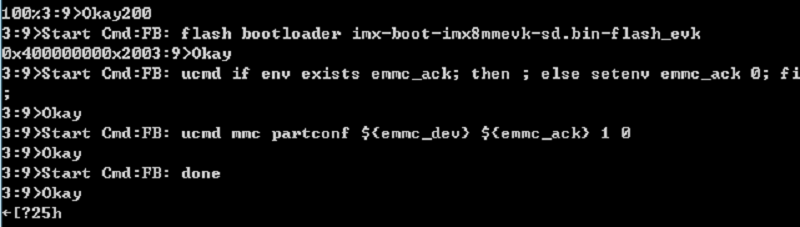

Execute “flash.bat” start to flash image.

4. In case that the following situation happens, it needs to install the drvier for RSC-IMX8M in Windows 7.

(skip step 5 if this problem does not occur in your device)

 Download this package.(https://github.com/NXPmicro/mfgtools/wiki/images/winusb.zip)
 Unzip the directory downloaded.
 Run “install.bat” as Administrator.

5. After flash image is finished, remove the power supplier.

6. Set the jumper to boot mode and eMMC.

SW1: 10
SW4: 10

7. Power on and start to boot to Yocto 2.5.
