    How to Programming RSC-IMX8M Linux OS by USB OTG port

    • Document NO.

      2023102505

    • Category

      Software OS

    • Update Date

      2023-10-25

    Export PDF

    Model Name

    RSC-IMX8M

    Purpose

    Programming RSC-IMX8M Linux OS by USB Type -C OTG port

    需求:

    • 1. USB type A to type C cable x1
    • 2. PC with Running Windows 10 OS Environment Host

    SOP:

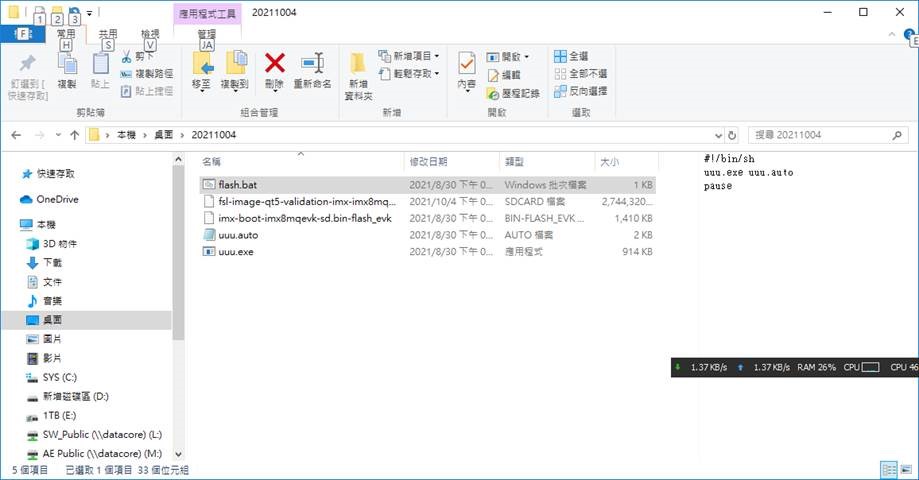

    1. 將下載之Linux OS Image, Ex:20211004.ZIP解壓縮，複製置於WINDOWS 桌面或任何Folder下

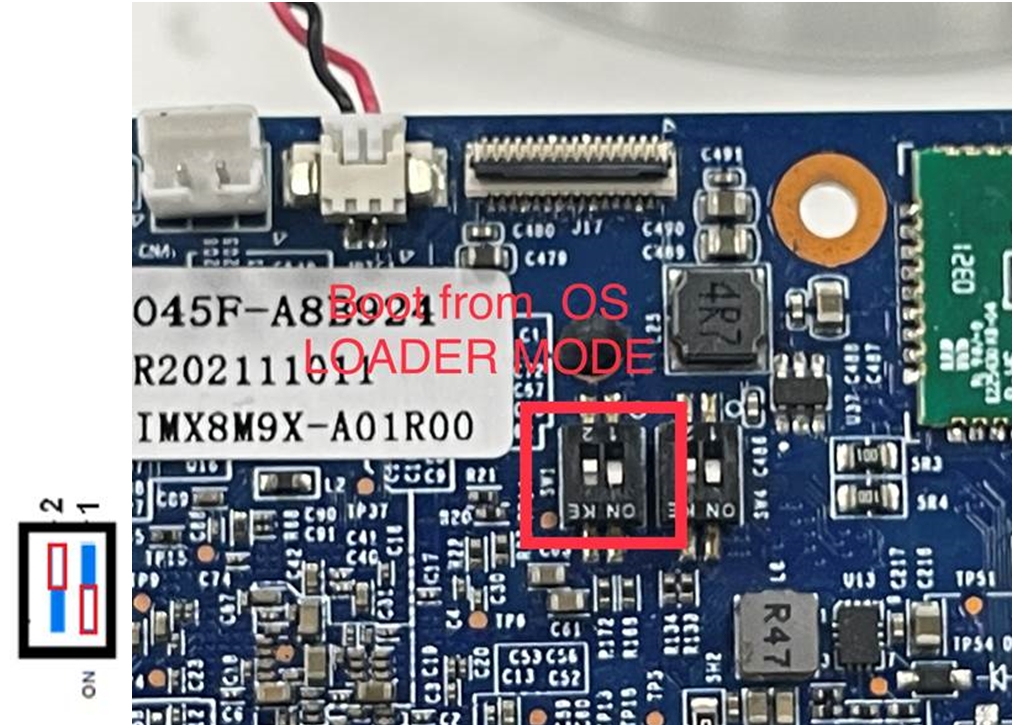

    2. 將RSC-IMX8M SW1 調整成如下之 Boot from USB/SD card mode for “OS installation from USB”

    3. 將RSC-IMX8M 以USB typeA to typeC cable與您之工作WINDOWS主機連接，並接上+12V電源.此時您的
    作業系統會自動安裝設定新增之SE Blank M850裝置，等到出現裝置已就緒。

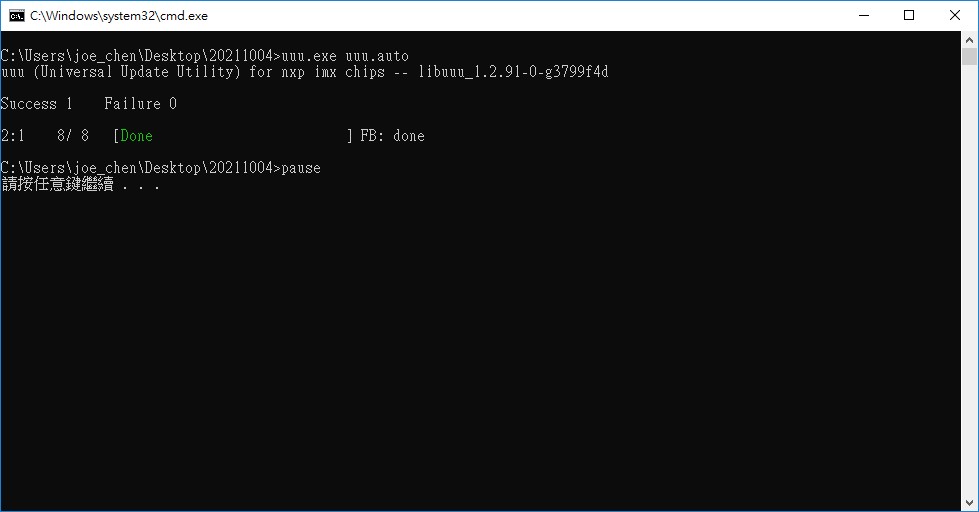

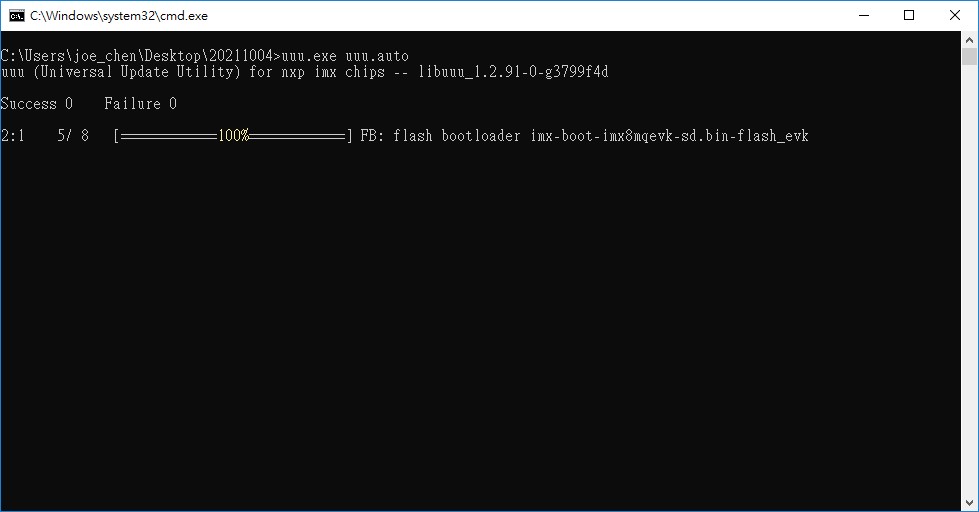

    4. 進入IMAGE所吋在隻FOLDER，執行 flash.bat，等候100 % Programming Finished.

    5. 調整SW1為 Boot from eMMC Mode for “Boot from eMMC linux loader”

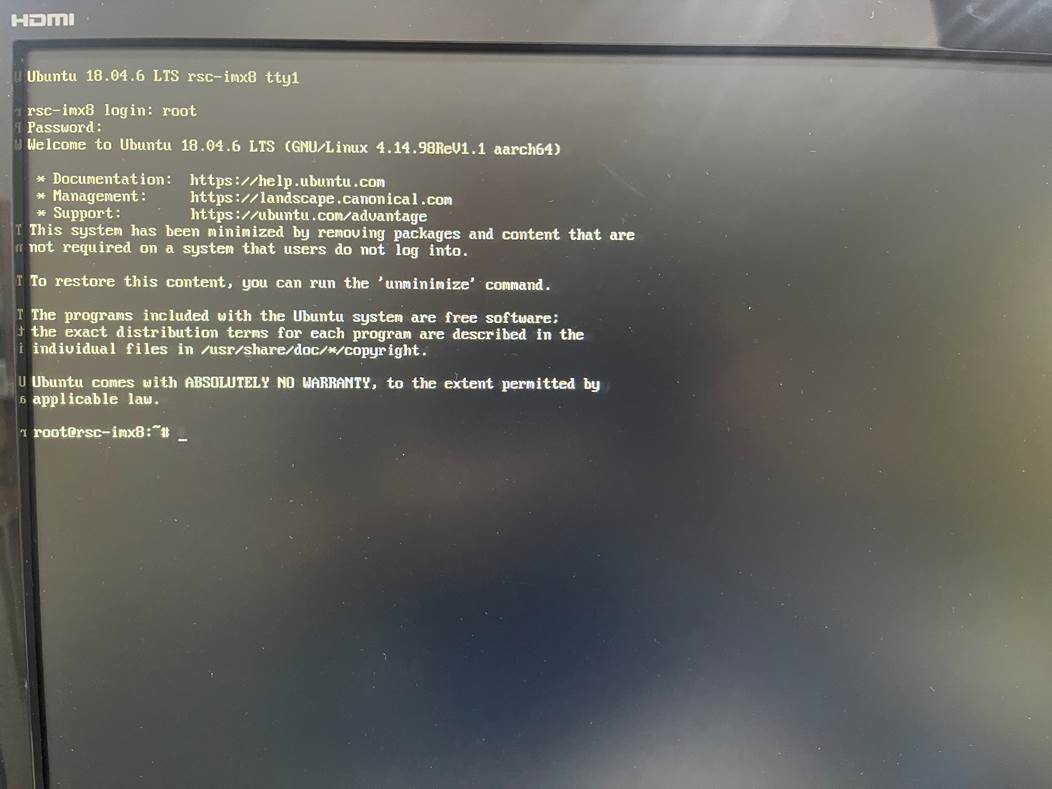

    6.重新開機即可進入ubuntu 18.04 OS

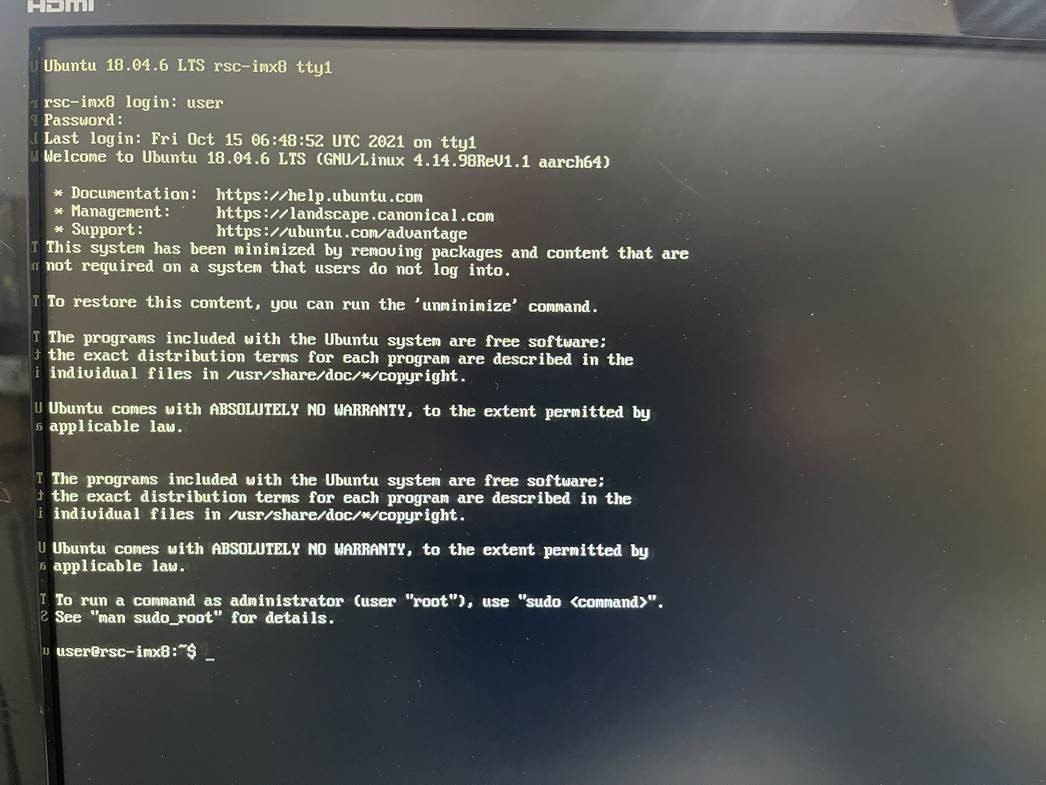

    登入之帳號密碼有兩組:
    root:root
    user:user
