How to use “Power ON after power failure function” to boot system without press Power button.

Document NO.

2023081554
Category

General Power
Update Date

2023-09-20

Export PDF

Model Name

ACC-ARM-D15R ACC-ARM-D16R ACC-ARM-D1R ACC-ARM-D20R ACC-ARM-D21R ACC-ARM-D22R ACC-ARM-D23R ACC-ARM-D29R ACC-ARM-D33R ACC-ARM-D40R ACC-ARM-D41R ACC-ARM-D49R ACC-ARM-D8R ACC-RITYVESA-B075R ACP-IMX6POS ACP-IMX6POS-B1 ACS10-TGU AIB-IMX6 AIB-IMX6A AIB-ROCK28 AIR All-in-One AIR Flexible-21/15 AIR-Lite APC-1733 APC-2132 APC-2138 APC-2334 ARC-1033 ARC-10W00 ARC-10W33 ARC-1200 ARC-1209 ARC-1209-B ARC-1232 ARC-1232-B ARC-1235 ARC-1235-B ARC-1238 ARC-1238-B ARC-1500 ARC-1509 ARC-1509-B ARC-1532 ARC-1532-B ARC-1533 ARC-1535-B ARC-1538-B ARC-15W00 ARC-15W32 ARC-15W33 ARC-1700 ARC-1732 ARC-1738-C1 ARC-21W00 ARC-21W33 ARC-21W34 BAX-R1U0 BAX-R2U0 BAX-R4U0 BFC-07R1 BFC-10W9 BFC-10W9 B1 BFC-1209 BFC-1232 BFC-1509 BFC-15W9 BMX-P54S-Q17K BMX-T522-SK BMX-T540-C246 BMX-T550 CCD-07WR2 CCD-10WR2 EAX-C236KP EAX-C246BP EAX-C246P EAX-Q170KP EAX-R680RP EAX-W480P ECM-ADLS ECM-APL ECM-APL2-A ECM-APL2-B ECM-BSWA ECM-BYT ECM-BYT-Lite ECM-CFS ECM-EHL ECM-EHL3 ECM-KBLH ECM-KBLU ECM-RPL ECM-SKLH ECM-SKLU ECM-TGU ECM-TGUC ECM-WHL ECS-APCL EEV-EX14 EEV-EX15 EEV-EX16-A1 EEV-Q702 EMS-EHL EMS-EHL-6LAN EMS-SKLU EMS-SKLU-4COM Isolation EMS-SKLU-6COM EMS-SKLU-6LAN EMS-SKLU-DVI EMS-SKLU-GPIO EMS-SKLU-HDMI EMS-SKLU-Marine EMS-SKLU-PSE EMS-SKLU-USB EMS-TGL EMS-TGL-4COM isolation EMS-TGL-6COM EMS-TGL-6LAN EMS-TGL-DVI EMS-TGL-HDMI EMS-TGL-PSE EMS-TGL-USB EMX-ADLP EMX-APLP EMX-BYT2 EMX-C246DP EMX-C246P EMX-EHLP EMX-H110KP EMX-H310DP EMX-H310P EMX-IMX7 EMX-Q170KP EMX-R680P EMX-RPLP EMX-SKLUP EMX-TGLC EMX-TGLP ENT-13T1 EPB-1001 EPC-APL EPC-BYT2 EPC-EHL EPC-EHL-4LAN EPC-EHL-8COM EPC-EHL-8USB EPC-EHL-DIN EPC-SKLU EPC-TGU EPC-WHL EPC-WHL-DIN EPD-2501 EPD-3133 EPD-4200 EPD-42T EPM-1502 EPM-1601 EPM-1602 EPM-1603 EPM-1604 EPM-1605 EPM-1606 EPM-1607 EPM-1608 EPM-1712 EPM-1715 EPM-1721 EPS-ADS EPS-CFS EPS-CFS2 EPS-KBLHE EPX-APLP EPX-EHLP EQM-APL EQM-BYT EQM-BYT2 ERX-W480P ESM-APLC ESM-APLM ESM-BYT ESM-BYT2 ESM-CFH ESM-EHLC ESM-KBLU ESM-SKLA ESM-SKLH ESM-TGH EZX-EHLP FPC-08W29 FPC-10W09 FPC-1736 ACC-GENICART-01R HID-21V-BTX HMI Turnkey Solution HPM-246UA HPM-621DE HPM-621UA HPM-SRSUA HPS-246U4A HPS-246UTA HPS-621D4A HPS-621DTA HPS-621U2A HPS-621U4A HPS-621UTA HPS-SRSU4A HPS-SRSUTA IET DB-A IET DB-B IET DB-C IET DB-D IET DB-E IET DB-F IET DB-G IET DB-H IET DB-K LPC-0809 LPC-0833 LPC-1009 LPC-1209 LPC-1232 LPC-1509 LPC-1532 LPC-1709(STD) NUC-APL NUC-APL-Slim NUC-EHL NUC-TGU OFM-15W00 OFM-21W00 OFP-07W33 OFP-15W33 OFP-15W38 OFP-21W33 OFP-21W38 OFT-07W03 OFT-07WR1 OFT-07WR2 OFT-10W02 OFT-10W03 OFT-10W04 OFT-10WR1 OFT-10WR2 OFT-1202 OFT-1502 OFT-15W03 OFT-15W04 OFT-15WR1 OFT-21W03 OFT-21W04 OFT-21WR1 OFT-21WR2 OTC PCC-APC-AB23-C PCC-ARC-AB10-C PCC-ARC-AB12-C PCC-ARC-AB12-R PCC-ARC-AB15-C-04R PCC-ARC-AB15-C-05R PCC-ARC-AB15-C-09R PCC-ARC-AB17-C PCC-ARC-AB21-C PCC-FPC-AB08-R PCC-FPC-AB10-R PCC-LPC-AB08-R PCC-OFP-AB07-C-01R PCC-PPC-AB15-R PCC-PPC-AB21-R PCC-SPC-AB17-R PCC-SPC-AB22-R PPC-1529 PPC-1729 PPC-2129 REV-Q703 REV-SA01 REV-SA02 REV-SA03 RiPac-10P2 RiPac-10P3 RITY102 RITY103 RITY122 RITY152 RITY153 RiVar-1501 RiVar-1502 RSC-BCX6 RSC-IMX61 RSC-IMX8M SID-10W03 SID-10W04 SID-10WR1 SID-10WR2 SID-15W03 SID-15W04 SID-15WR1 SID-21W03 SID-21W04 SID-21WR1 SID-21WR2 SLP-WHG SLP-WHG-EtherCAT SLP-WHG-TSN SMA-IMX6 E1 SMA-X8I SPC-1209 SPC-1509 SPC-1533 SPC-1533-B1 SPC-1709 SPC-2133 SPC-2133-B1 SPC-22W9 UB-T100 VMS-APL VMS-CFS-M12 VMS-CFS-PSE(RJ45) VMS-EHLR VNS-10W01 VNS-15W01 EMS-EHL-USB EMS-EHL-PSE EMS-EHL-HDMI EMS-EHL-DVI EMS-EHL-6COM EMS-EHL-4COM isolation UB-A100 UB-A200 UB-A300 ARC-1535 AUX-086 EEV-EX16-B1 HPM-SRSDE HPS-SRSD4A UG-A210H MAB-T600 UG-T130H UB-T110 UB-T223 UB-T313 Artemis 1U Server Artemis 2U Server SLP-ZXE AIB-IMX8M ARC-1538 ARC-21W38 Arch-Swing A-Frame Arm Geni-Tec Power On Pole ACC-BAT-GENI-01R ACC-BAT-GENI-04R MX610H MX610HD BC680R RX680R NUC-RPU FTC-5" ESM-RPL ESM-RPLC EQM-EHL ECM-ASL RX610H EMX-ASLP ARC-1037 HPM-SIEUA OFR-15WMX OFR-21WMX AIB-3566 AIB-NVAO AIB-NIAO AIB-NW01 HPM-ERSUA HPM-ERSDE EEV-EX26 MAB-T600-B1(Philips Hemo Workstation) AUX-TCB EPD-4200-B1 PT58 ARC-21W35 VMS-ADPS HPS-ERSU4A HPS-ERSUTA VMS-CFS-SLIM NUC-APL-Slim NUC-APL EPC-SKLU EPC-BYT2 EPC-APL VMS-CFS-PSE(RJ45) VMS-CFS-M12 VMS-CFS EMS-SKLU-GPIO AUX-080 ESM-EHLC-B1 EAX-R680FP EMX-H310C EMS-TGL-Marine VNS-10WR2 EMX-TGLC-B1 A300 EMS-MTU FTC-07WN EMS-TGL-8PoE(ODM) EPM-1722 HPS-ERSD4A EPM-1715A-A1-04R OFT-07WR3 SID-10WAD EPS-RPS APC-15WR2 OSM-3568 OSM-IMX8MM OFT-07WAD OFT-10WR3 FTC-05WN FTC-10WN ARC-1233 RCC-CAR-HGD-01R OFT-10WAD RCC-CAR-HGD-DH-01R EMS-TGL-W85-A1-11R RCC-CAR-HGD-KB-01R RCC-CAR-HGD-CH-01R RCC-PTZCAM-01R RCC-CAR-HGD-BR-01R ACP-3566-PI RPC-15WNX RIM-OOBM RPC-15WNX RSC-3568J VMS-APL VMS-CFS-SLIM VMS-CFS VMS-RPPS EPX-ASLP EMS-TGL_Nexite ACC-ARM-D45R EMS-TGL-Marine_(複製1630) VMS-APL_(複製1622)_(複製1633) EMS-TGL_Nexite_Wall Mount ESX-KX60G AIB-3566 ACP-3588 UG-T440H ESM-ASLC EMS-MTH LPC-1738-B1 HannsNote2 ARC-1538-C1 ARC-21W38-C1 ARC-10W37 BMX-T528 SID-23WRP SID-21WR2 SID-10WR2 SID-21WR1 SID-15WR1 SID-15WR1 SID-10WR1 OFT-21WR2 OFT-10WR2 OFT-07WR2 OFT-15WR1 OFT-10WR1 OFT-07WR1 APC-21WR6 APC-21WR4 ACC-ARM-D19R AIB-3588 AI AIB-3588 SMA-3568 OFP-28W42 OFM-28W00 ARC-18W33 EPD-3150 BMX-T550-B AIB-NINX-SC BMX-T820 MAB-T600-B1 Q7-iMX6Q,D,S AIB-NIAO-S AIB-NIAO-PSE UG-T320H ARC-1738-C2 GAI-ERSR-70B GAI-ERSR-70B-Lite GAI-ERSR-33B EMS-MTU (Nexite) AIB-NINX-S AIB-NIAO (ACN) ENT-10T1 SID-15WR2 EPC-RPU NUC-ADN BMX-T560 ARC-1713 OFP-15W38-O1 SPC-10W35 EMD8216LE JDAM9060D ECM-MTL APC-2340 JDAM9063D HPS-SIEU4A HPS-SIEUTA SLP-RPR LPC-1738-5G EMA8308 JDAM-9017F JDAM-9024 MAB-T660 VNS-10WAD APC-W00 APC-15W00 EPM-1609 ECM-TWL EMX-W880P ESM-ARL ESM-TWLC EMX-TWLP EEV-HC10 EPX-TWLP ESM-HRPL EMX-ASLC EMX-ALUC ECM-ALUC EAX-Q870C EMX-MTLP EPI-ARLS ECM-ASLC ECM-TWL3 ACP-Q6490 RSC-3576 SMA-3588 AIB-Q6490 OSM-IMX93 HPM-GNRDE EAX-H610C FPC-21W42 APC-24WR6 APC-32WR6 ISS-15K5 ARC-1539-A N97 ARC-1539-A X7433RE ARC-1239-B N97 ARC-1239-B N305 BMX-T529 ACS-ALUC ARC-1539-B X7433RE BMX-T840 ACP-IMX8-PI EPC-ASL SMA-IMX8MP ACS-ADNC BMX-P820 HPS-ERSU2A ECM-RLUC HPM-GNRUA EMX-RLUC EPC-TWL ARC-15W39 ARC-15W39 HPS-ERSU1A HPS-GNRD4A SPC-2142 SPC-1542 BFC-1239-N305 SID-15WAD HPS-GNRU4A

Purpose

The function can simulation of the AT power support.

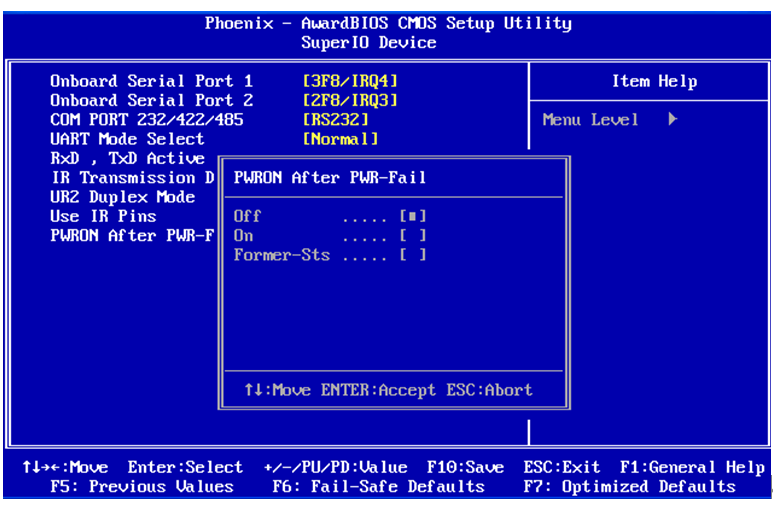

1. Please press Delete button into BIOS setup Utility After Power ON
Integrated PeripheralsSuper IO devicePWRON After PWR-Fail  setting to "ON".
(“OFF” is Factory Default)

2. The feature of Power on after power failure is as follow:

A. ON - When power on, the board will boot up automatically, which is the simulation of the AT power support.

B. OFF - When power on, the power button still need to push on to bring the board to boot up, which is the ATX power support.

c. Former status - When power failure happened, and after the power resumed, the board will either boot or not based on the power state before power failure.
