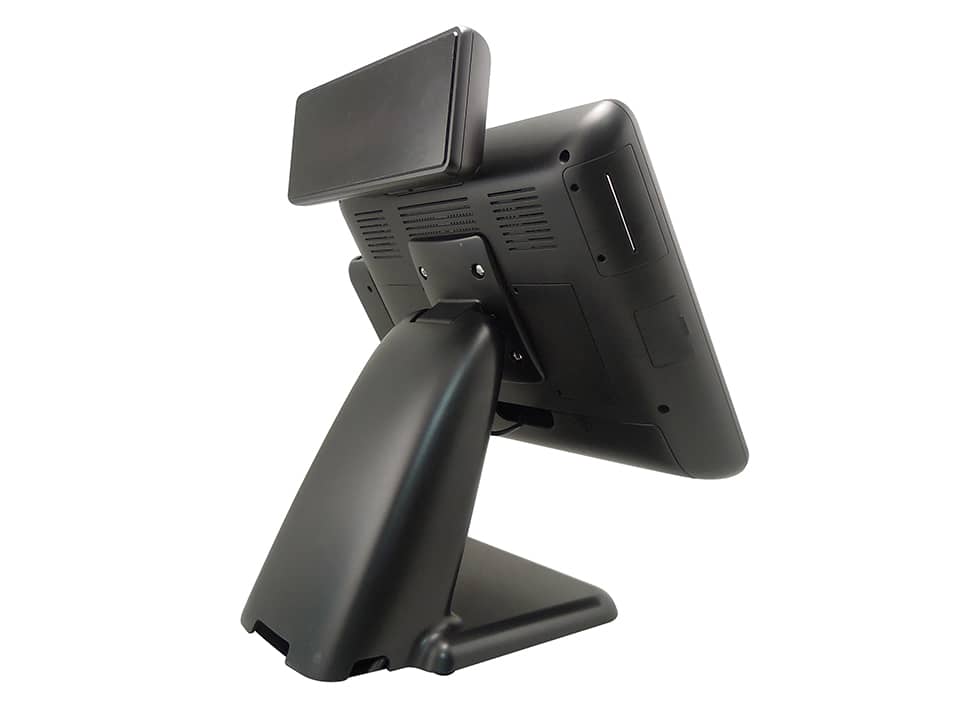

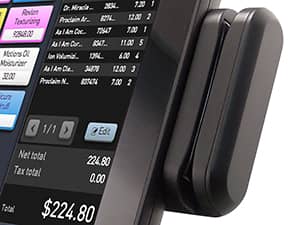

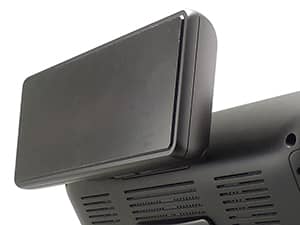

Processor

Intel® Atom™ E3845 4-Core 1.91GHz processor/
Intel® Celeron® J1900 2.0GHz processor

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

APC-BYTPOS

Expansion

1 x Mini PCIe supports mSATA

Storage

1 x 2.5 Drive bay
1 x mSATA

Graphic Chipset

Intel® Valleyview SoC integrated Graphics
Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x768@ 60Hz
HDMI:Max. resolution 1920x1080@ 60Hz

Audio Codec

Realtek ALC888S supports 2-CH

Audio Interface

Line-out

Speaker Output

2 x 2W

LAN Chipset

2 x Realtek 8111E

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

OS

Win 7 / Win 8 / POS ready / Linux

Certification Information

CE
FCC Class B
VCCI

USB Port

3 x USB 2.0
3 x USB 3.0

LAN Port

2 x RJ-45

LCD Size

12.1", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

16.2M

Luminance

600 cd/m2

Contrast ratio

700

Viewing angle

80(H) X 70(V)

Response time

8 ms

Backlight

LED

Touch Type

5 wires resistive / PCT

Touch Light Transmission

RES 75% / PCT 90%

Touch Controller

Onboard USB touch (penmount) / USB touch (EETI)

COM Port

2 x RS-232/422/485 (BIOS)
1 x RS-232

Operating Temp.

0°C ~ 35°C (32°F ~ 95°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

322 X 250 X 47mm

Weight

5 kg /with stand

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

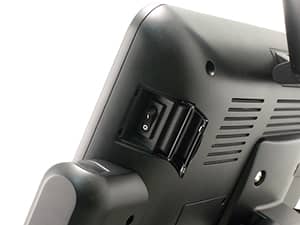

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

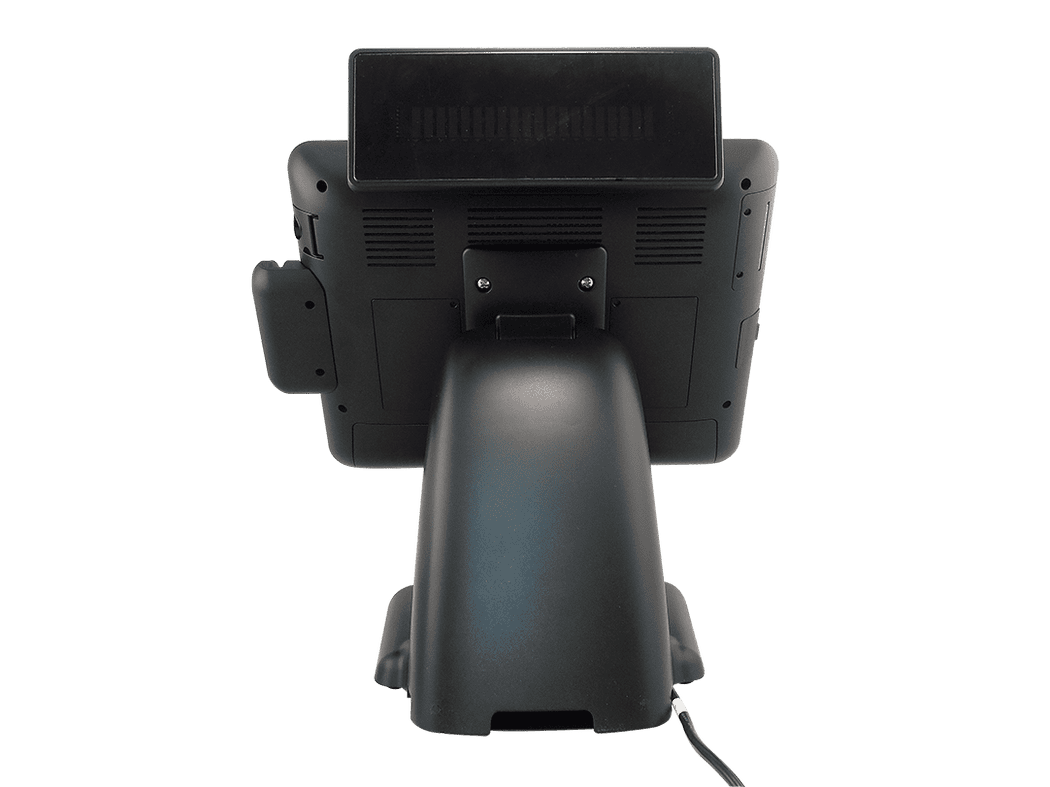

Construction - Rear

Black

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter)

Ordering Information

RITY122-0RH0800A1R
12" 1024 x 768 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/Stand

RITY122-0RH0300A1R
12" 1024 x 768 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/VESA Mount

EU Power Cord E170203183DR
US Power Cord E1702031835R
JP Power Cord E17120318001R
UK Power Cord E170P060370R
