Input Power Connector

DC Jack 3-pin 2.5mm on board

Output Power Connector (DC-12V)

AT 2Px2 Power connector with power cable, follows ATX 2*2 +12V power pin assignment

Power Type

AT

Super-Cap

400F (-5% to +10% (20°C)

Rated Output Power

60W total output

Maximum Output Power

80W total output

Input Voltage Range

12V ~ 24V

Output Voltage Range

+12V ±5%

Output Ripple & Noise Range

+12V: 100mVpp

Super-Cap Cells Life Time

@2.5V 65°C is about 8000 hours, @2.5V 50°C is about 14000 hours

Maximum Output Current (DC-12V)

6.7A

Operating Temp.

0 ~ +60°C

Storage Temp.

-40 ~ +75°C

Operating Humidity

0 ~ 90% Relative Humidity, Non-condensing

Dimension (W x L x H)

4cell: 160mmx74mmx70mm
6cell/8cell:160mmx148mmx70mm

Ordering Information

EPM-1715A-A1R

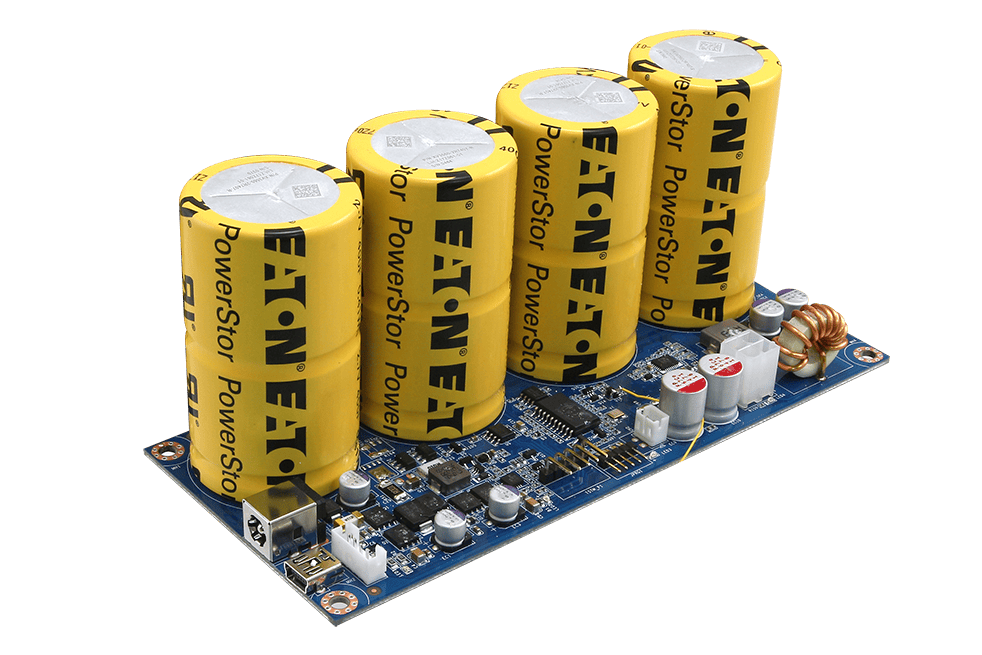

Supercapacitor Power Module 4cell

EPM-1715C-A1R
Supercapacitor Power Module 8cell
